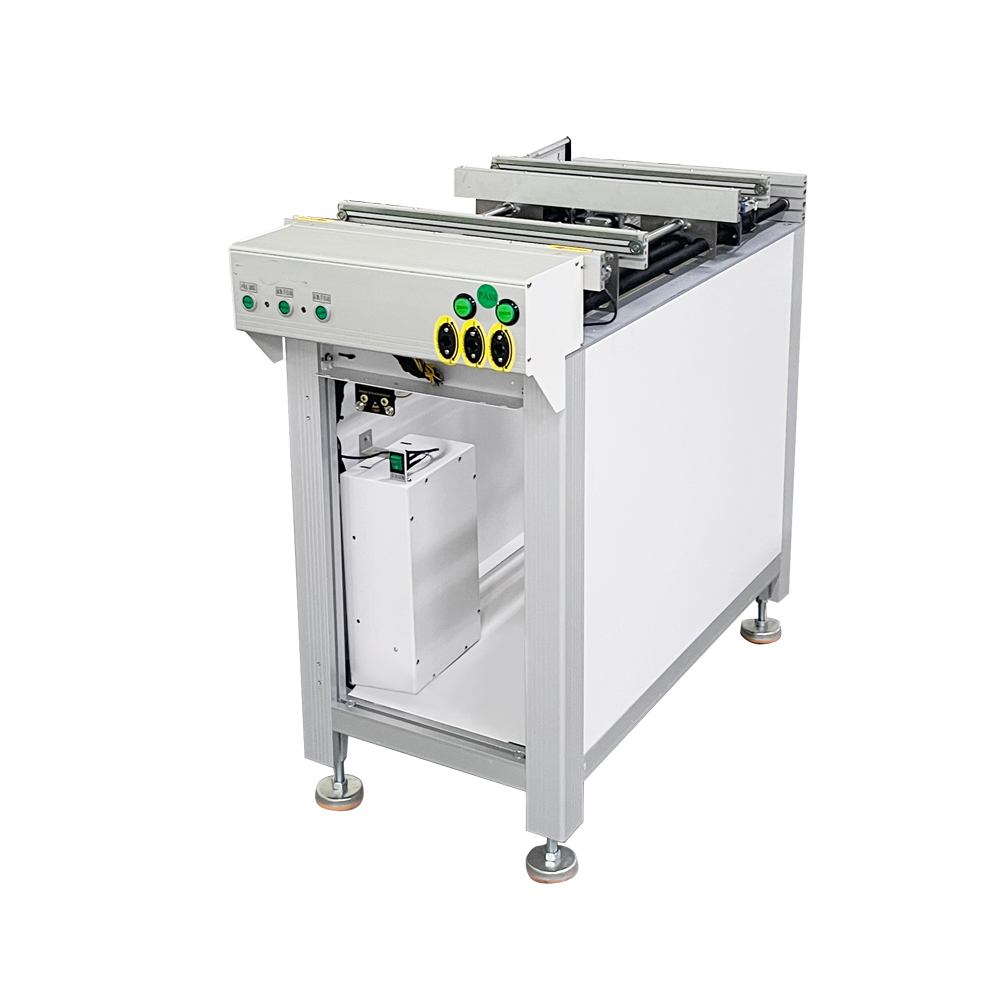

Censtar DC-100M-N Dual Rail PCB Conveyor (1000*1046*900mm, 50*50-330*250mm)

Dimension:   1000*1046*900mm

PCB size:     50*50-330*250mm

Industrial control:        Industrial control board

Quantity of rail:        Dual rail

Fixed conveyor mode:        1and4 rail fixed,2and3 adjustable

Adjustment mode:        Manually

Belt type:        4mm flat belt

Load bearing:        2kg/PCB

Conveyor speed:        0.5-20m/min or specify

Transport height:        900±20mm(or custimzie)

Power supply:       220V ; single phase

Power:        Max 100VA

Transport direction:        L-R or R-L

Inspect/ Auto Mode:        Yes

Variable speed control:        Yes

CE:         Yes

PLC:        No

SMEMA:        No

Weight:    95kg


The PCB Conveyor is used in the PCB assembly line when frequent visual inspection of PCB’s is required, can be used as an Inspection conveyor or a Linking conveyor.


1.Modular design

2.Weighted design improves stability

3. Inspection mode and automatic mode

4.Inducing multi-zone position accuracy

5.Ergonomic design, make arms rest

6.Custom machine length according to customer's requirement

7.Order the number of multi-zone upon request

8.Variable speed control

9.Compatible SMEMA interface


SMEMA, PLC, LED lights, nti-dust Covers, Touch screen, Support for Monitor, With bottom cabinet, Anti-static glass dust cover , Cooling cover, Sensor, Size customization
