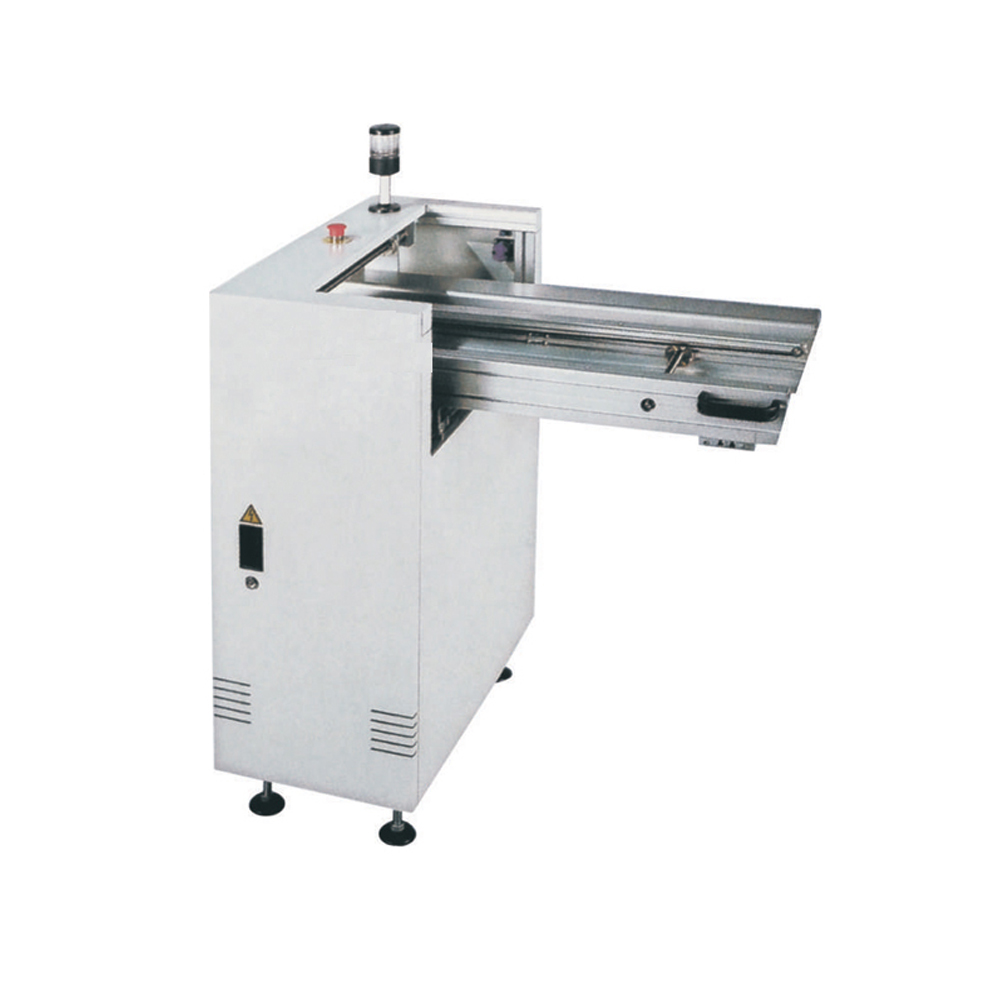

Censtar GC-330W-N PCB门输送机

Dimension(L*W*H): 1000*730*1050mm

PCB size(L*W):  50*50-445*330mm

Quantity of rail:  Single rail

Belt type:  4mm flat belt

Load bearing:  2kg/PCB

Conveyor speed:  0.5-20m/min or specify

Transport height: 900±20mm(or custimzie)

Power supply: 220V ; single phase

Power:  Max 200VA

CE:  Yes

Weight: 180kg


This equipment is used at the junction of the aisle of the production line to play the role of transmission and channel .

1.Lowering and lifting of gate conveyor (controlled by push botton);

2.650mm passage way or specify;

3.Parallel and smooth width adjustment(leadscrew);

4.Safety sensor installed to enhance safety;

5.With SMEMA signal.
