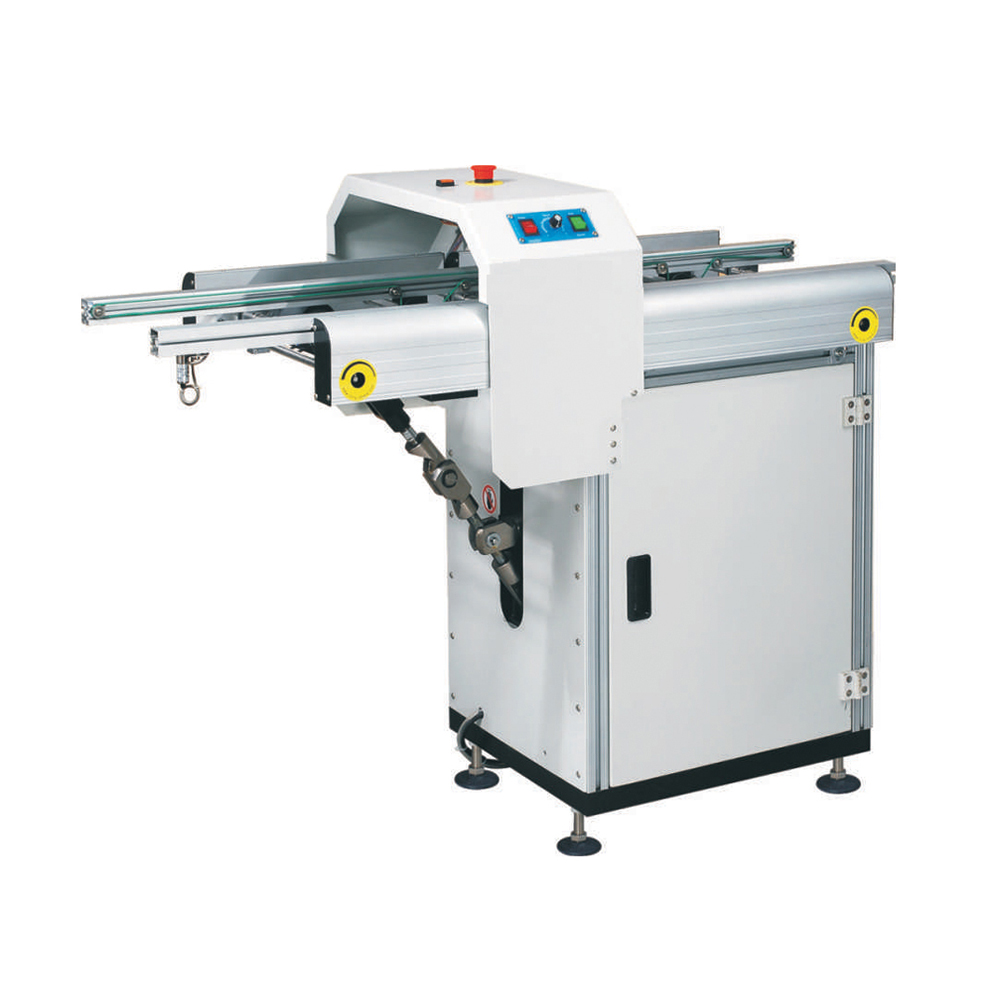

Censtar LC-400W-N 降低门PCB输送机

Dimension(L*W*H):        1300*570*1050mm

PCB size(L*W):        50*50-445*400mm

Quantity of rail:        Single rail

Belt type:        4mm flat belt

Load bearing:        2kg/PCB

Conveyor speed:        0.5-20m/min or specify

Transport height:        900±20mm(or custimzie)

Power supply:       220V ; single phase

Power:        Max 100VA

Air prssure:        4-6bar

Air consumption:        48L/min max

Transport direction:        L-R or R-L

CE:         Yes

PLC:        No

SMEMA:        No

Weight:        180kg


The Lowering Gate Conveyor is used when a passage way is required in a production line.


1.Lowering and lifting of gate conveyor (controlled by push botton);

2.650mm passage way or specify;

3.Parallel and smooth width adjustment(leadscrew);

4.Safety sensor installed to enhance safety;

5.With SMEMA signal.
