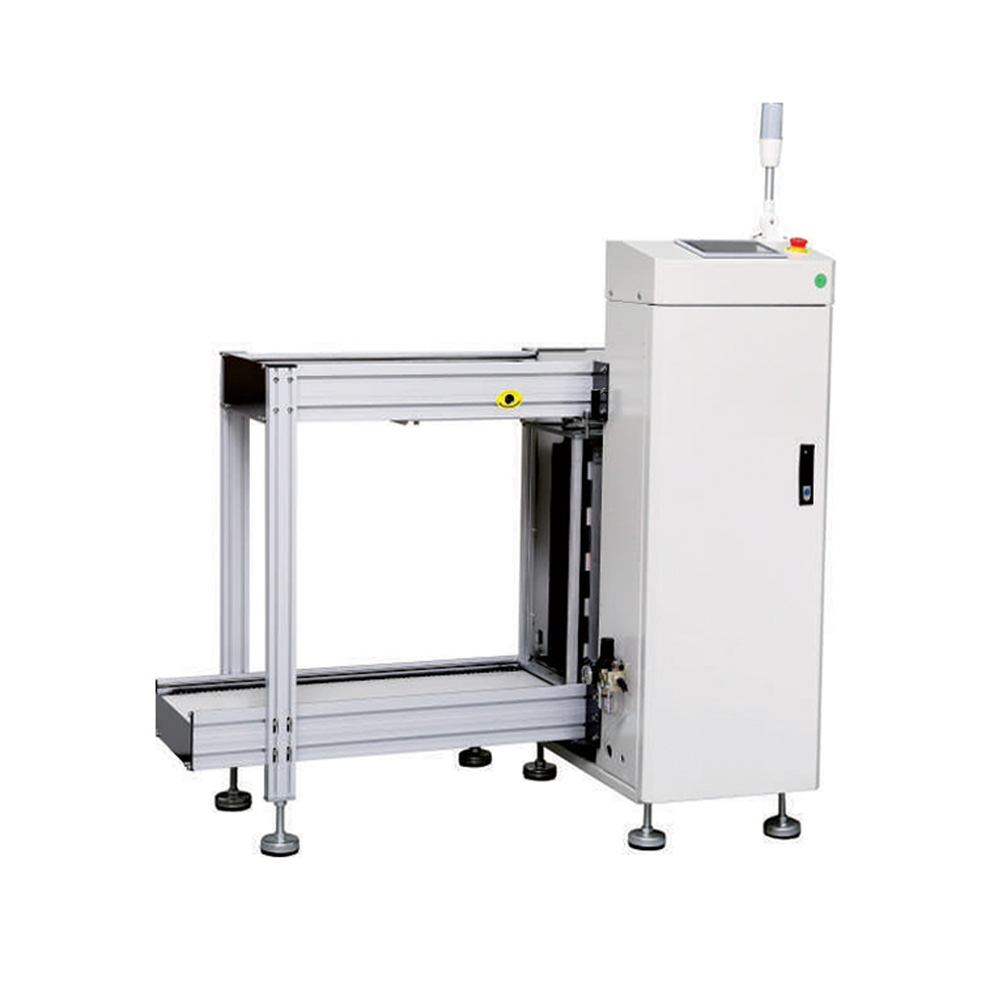

Censtar LD-L-BN PCB magazine loader ( 1650*845*1250mm, 50*50-445*330mm)

Dimension(L*W*H):    1650*845*1250mm

PCB size(L*W):        50*50-445*330mm

Magazine size(L*W):   460*400*563mm

Quantity of rail:        Single rail

No. of magazine:        Loader: upper 1, lower 2

Conveyor belt of magazine:        Plastic strips

Transport height:        900±20mm(or custimzie)

Cycle time:        6 Seconds or specity

Magazine change time:        30 Seconds or specity

Indexing pitch:        10. 20. 30. 40mm selectable

Power supply:        AC 220V±10V, 50/60HZ

Power:        Max 300VA

Air prssure:        4-6bar

Air consumption:        10itr/min max

Screen size:        7 inch

PCB thickness :        Minimum 0.6mm thickness

Transport direction:        L-R or R-L

CE :        Yes

PLC: Yes

SMEMA:        Yes

Weight:    200kg

Details

This equipment is used for PCB board loading operation in SMT production line

Description

1.Strong, firm and stable design

2.User friendly'soft touch' LED membrance control panel

3.Top & bottom pneumatic clamps to secure magazine rack

4.No PCB breakage guaranty because of special gas circuit design

5.Automatical diagnosing fault code display function

6.Wear-resista nt cable and have long service life

7.SMEMA compatible
