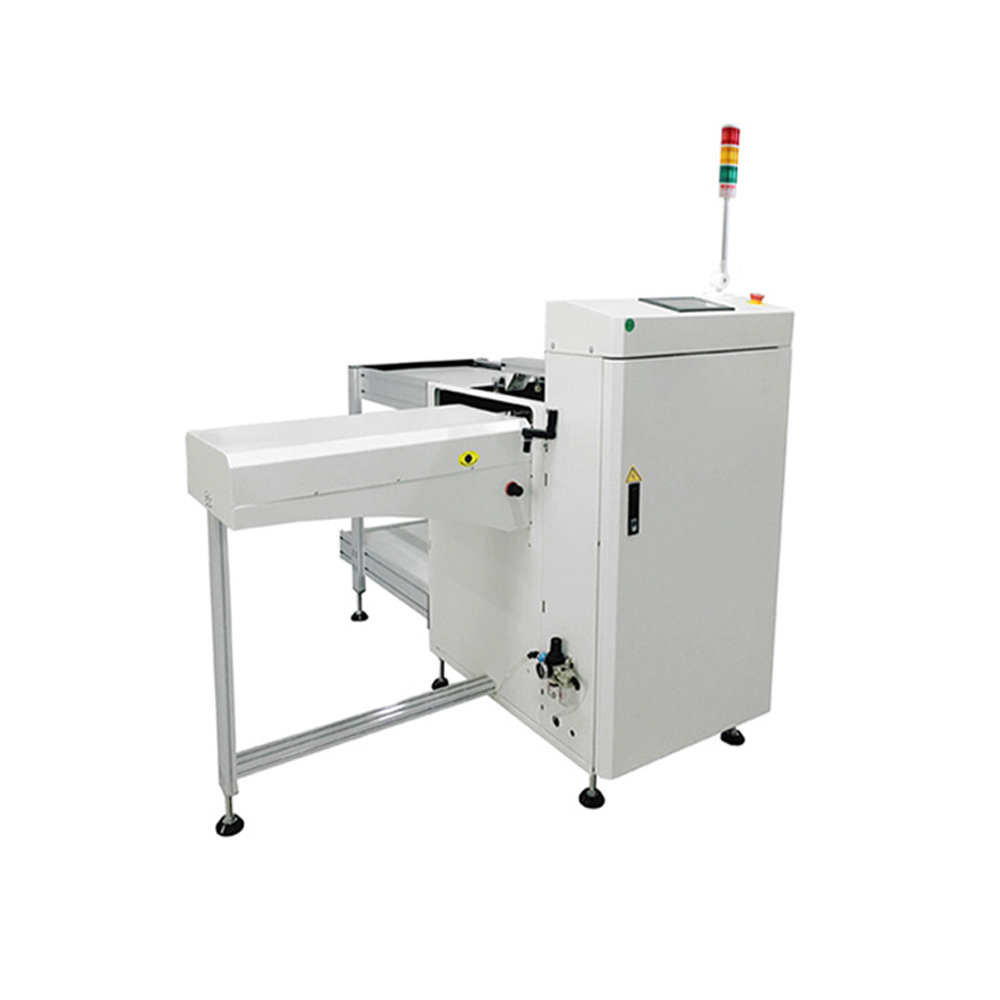

Censtar LF-LL-BN L型PCB装载机 (1550*1550*1205mm, 50*50-530*390mm)

Dimension(L*W*H):   1550*1550*1205mm

PCB size(L*W):   50*50-530*390mm

Magazine size(L*W*H): 535*460*563mm

Quantity of rail:        Single rail

No. of magazine:        Loader: upper 1, lower 2

Conveyor belt of magazine:        Plastic strips

Transport height:        900±20mm(or custimzie)

Cycle time:        6 Seconds or specity

Magazine change time:        30 Seconds or specity

Indexing pitch:        10. 20. 30. 40mm selectable

Power supply:        AC 220V±10V, 50/60HZ

Power:        Max 300VA

Air prssure:        4-6bar

Air consumption:        10itr/min max

Screen size:         7 inch

PCB thickness :        Minimum 0.6mm thickness

Transport direction:        L-R or R-L

CE :        Yes

PLC: Yes

SMEMA:        Yes

Weight:  280kg


This equipment is used for PCB board loading operation in SMT production line .


1.User friendly ""soft touch"" LED membrance control panel or touch screen is optional.

2.Strong ,firm and stable design.

3.Up&down pneumatic clamps to ensure the magazine rack position.

4.Special gas circuit design to ensure no PCB breakage.

5.L shape design, save the whole production line length.

6.With SMEMA signal.
