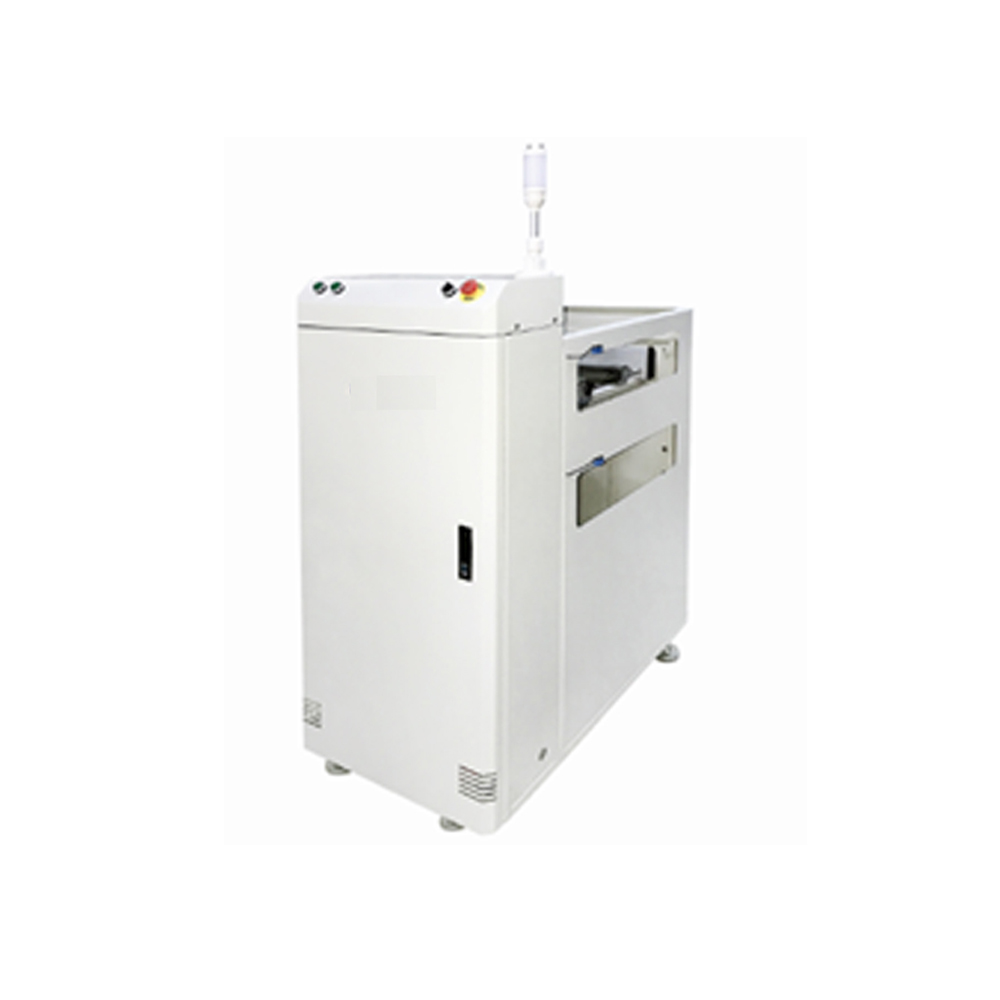

Censtar PD-XL-BN PCB升降输送机 (610*1050*Hmm, 50*50-530*460mm)

Dimension(L*W*H):  610*1050*Hmm

PCB size(L*W):    50*50-530*460mm

Quantity of rail:        Single rail

Belt type:        Nylon embroidered steel chain or oblate belt

Load bearing:        3kg/PCB

Cycle time:        Depends on lifting distance

Transport height:        Custimzie

Power supply:        AC 220V±10V, 50/60HZ

Power:        Max 250VA

Screen size:         7 inch

PCB thickness :        Minimum 0.4mm

Transport direction:        L-R or R-L

CE:         Yes

PLC:        Yes

SMEMA:        Yes

Weight:     200kg


This equipment is used to adjust the height direction of the PCB board on the production line to different paths.

1.Enclosed design,safety enough;

2.Can rise and fall, machine height can be customized;

3.Top cover can be opened, it's easy to make maintenance;

4.Smooth and parallel width adjustment (leadscrew);

5.Speed can adjust;

6.Minimize transmission clearance between conveyor;

7.With SMEMA signal.
