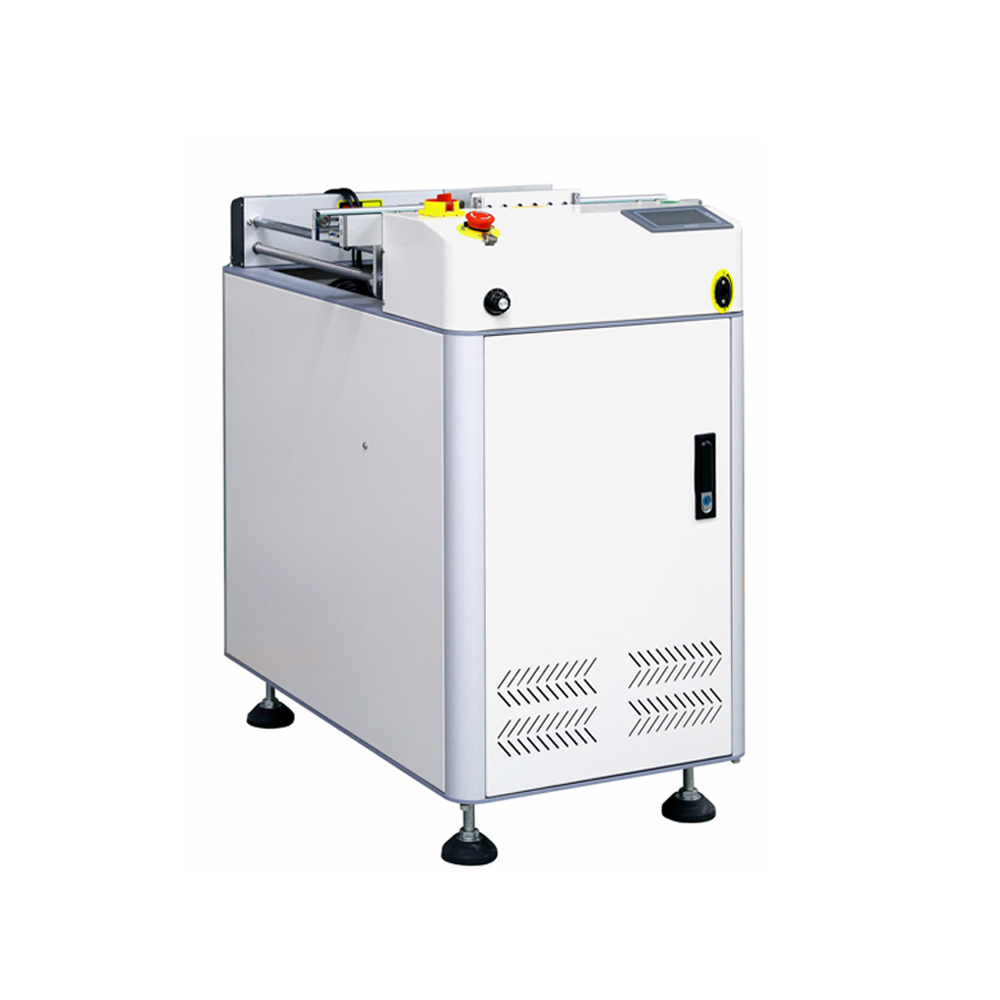

Censtar RC-100XL-N PCB拒绝输送机 (1000*793*900mm, 50*50-530*460mm)

Dimension(L*W*H):  1000*793*900mm

PCB size(L*W):   50*50-530*460mm

Number of stocks:         10pcs or specify(Pitch 25mm)

Quantity of rail:        Single rail

Belt type:        4mm flat belt

Load bearing:        2kg/PCB

Transport height:        900±20mm(or custimzie)

Convey speed:        0.5-20m/min or specify

Power supply:        AC 220V±10V, 50/60HZ

Power:        Max 100VA

Air consumption:        10itr/min max

PCB thickness :        Minimum 0.6mm

Transport direction:        L-R or R-L

CE:         Yes

PLC:        Yes

SMEMA:        Yes

Weight:    105kg


This equipment is used for AOI to separate the good board and the bad board. During the inspection, the good board can continue to run without hindrance.


1.Reject,inspect and pass through modes provided.

2.PLC controller.

3.Stability enhanced by robust design.

4.Smooth and parallel width adjustment.

5.Length can be customized.

6.Speed is adjustable.

7.SMEMA compatible.

Note: Single or dual rails are customized.
