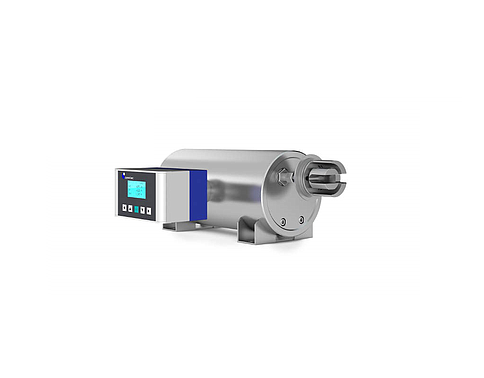

CENTEC COMBITEC 溶液密度、声速传感器 (0-3g/cm3 、 400-3000 m/s )

Technical Data

Measuring Range Density & Sound Velocity 0 -3 g/cm3 and 400 - 3.000 m/s
Accuracy Density & Sound Velocity ± 0,0001 g/cm3 and ± 0,05 m/s
Repeatability Density & Sound Velocity ± 0,0001 g/cm3 and ± 0,01 m/s
Response Time ≤ 1 s
Pressure of Operation max. 16 bar
Temperature of Operation - 25 - + 125 °C
Temperature Sensor Pt1000
Material 1.4404/1.4435/AISI 316L; Hastelloy; Tantalum; others on request
Connections compatible to Varivent© inline-housings DN40 - DN150; others on request
Input Transmitter Version 10 x digital (24 VDC) & 2 x analog (4 - 20 mA)
Output Transmitter Version 5 x digital (24 VDC) & 4 x analog (4 - 20 mA)
Profibus DP Transmitter Version option
Profibus DP Sensor (w/o local display) standard
Enclosure Rating IP65
Power Supply 24 VDC
