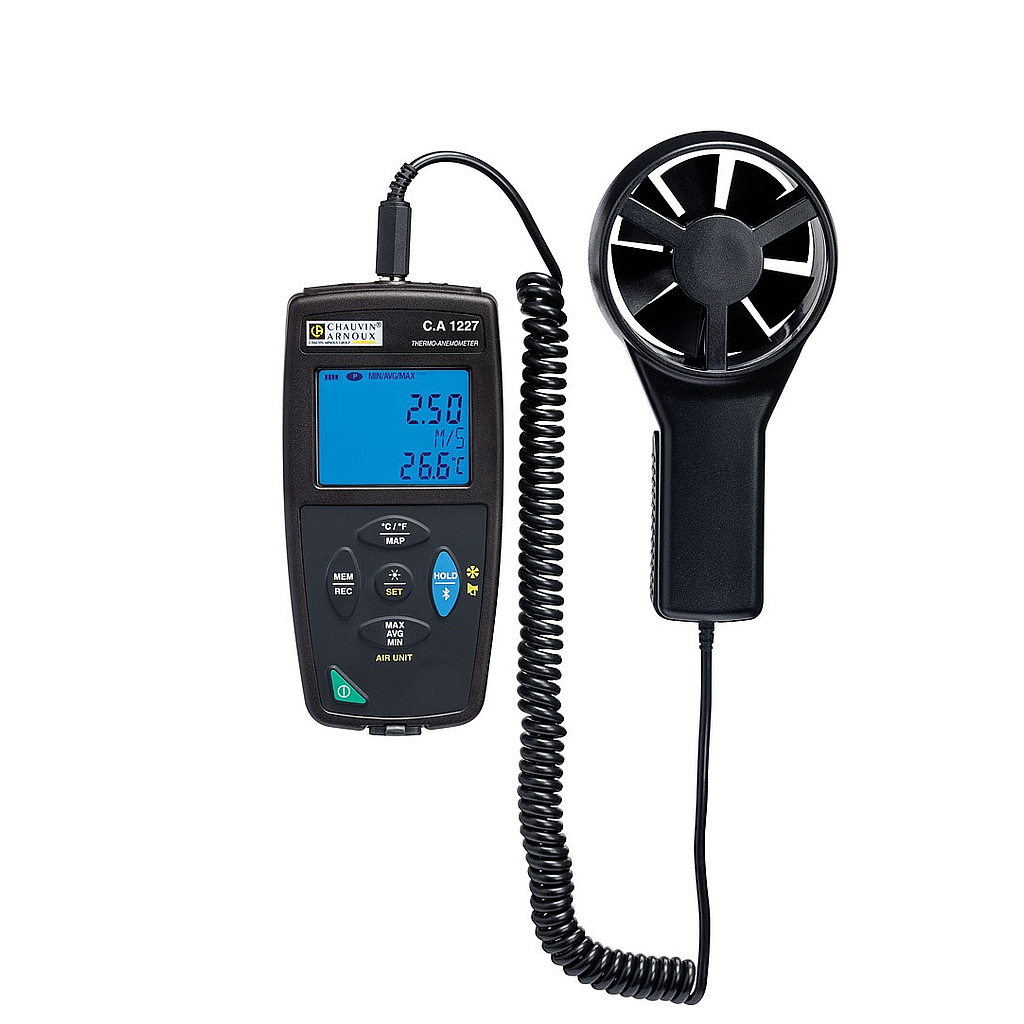

Chauvin Arnoux C.A 1227 温度风速计 (35m/s)

AIR SPEED AND FLOW RATE
- Type of sensor: Vane / optical detection
- Speed :
+ Measurement range: 0.25 m/s to 35.0 m/s (49.0 to 6890.0 fpm)
+ Resolution
0.01 m/s ( 0.25 to 2.99 m/s) / 0.1 fpm (49.0 to 99.9 fpm)
0.1 m/s ( 3.0 to 35.0 m/s) / 1 fpm (100 to 6,850 fpm)
+ Intrinsic uncertainty : ± 3 % of reading ± 4 counts
- Flow rate
+  Measurement range : 0.00 to 2,999 m3/h
+ Resolution :
0.01 m3/h ( 0.00 to 2.99 m3/h)
0.1 m3/h ( 3.0 to 99.9 m3/h)
1 m3/h (100 to 2,999 m3/h)
+ Intrinsic uncertainty : ± 8% of reading
TEMPERATURE
- Type of sensor : CTN
- Measurement range: - 20.0 to + 50.0 °C/ - 4 to + 122 °F
- Resolution : Display in °C: 0.1°C  Display in °F: 0.1°F
- Intrinsic uncertainty in °C : 0 to 50 °C: ± 0.8 °C / -20 to 0 °C: ± 1.6 °C
FUNCTIONS
- Recording
+ Manual Start / Stop on the product: short press for MEM spot recording / Long press for REC recording at the rate of the current mode
+  Programmed recording: start date, recording interval (1 minute to 2 hours) and end date defined using the PC software
- Data storage : More than 1 million points
- Min-Avg-Max-Hold : Yes
- MAP  mode: The MAP function can be used to map the air speeds measured
- Flow-rate measurement : Yes: direct reading with the cones proposed as accessories or on the basis of a surface defined by the user.
- Backlighting : Yes
- Units
+ Air-speed units: m/s, km/h, fpm, mph -
+ Air flow-rate units: m3/s, m3/h, l/s, cfm
- Automatic power-off: Yes (configurable)
POWER SUPPLY
- Type : 3 x 1.5V AA / LR6 alkaline batteries. Mains connection possible with the mains / micro-USB adapter offered as an accessory
- Battery life: 200 hrs (portable mode) / 8 days of recording (15-minute intervals)
PHYSICAL SPECIFICATIONS
- Interfaces : 2 possible communication modes: Bluetooth wireless link and USB
- Mounting: Casing equipped with a magnet, a wall-mount system and a slot for suspending the product. Compatible with the Multifix accessory
- Dimensions / weight : 187 x 72 x 32 mm / 260 g with batteries
- Ingress protection : IP54 casing
- Product operating range: Temperature: -10 to +60 ° C / Humidity: 10 to 90 %RH
- Compliance : IEC61010-1 / IEC 61326-1
GENERAL SPECIFICATIONS
- Data Logger Transfer Windows PC software functions: Display as a graph or a table of values / Data export in graph or Excel table form. Real-time mode / Automatic report generation in Word format / Data format compatible with the Dataview software offered as an accessory


State at delivery: Bag, 3 x 1.5 V AA alkaline batteries, USB cable, test report and quick start-up guide
Accessories:
-Cones kit for flow-rate measurement with meter (circular cross-section Ø 210mm and rectangular cross-section 346x346mm)  P01654250
-Vane sensor Ø80mm  P01654251
-Shockproof sheath + Multifix  P01654252
-Multifix  P01102100Z
-Mains adapter  P01651023
-Bag P01298075
-Metal case  P01298071
-Dataview software  P01102095
-Bluetooth BLE / USB modem for PC   P01654253
-4 x AA/LR6 NiMH Batteries + Battery charger HX0053

Details

datasheet
user guider

Advantages

  • Wide backlit display
  • MAP function for mapping the air speeds measured
  • Min, Max, Average and Hold functions
  • Flow rate measurement
  • Recording up to 1 million points
  • Communicating via USB or Bluetooth
  • Data Logger Transfer software with automatic report generation

Description

Equipped with a wide backlit display, the C.A 1227 offers all the useful functions for measuring air speed and flow rate in the field, such as Min, Max, Average, MAP and Hold as well as extensive recording capabilities. With the cones available as accessories, it is possible to perform direct flow rate measurements.
The Data Logger Transfer software is available for free download to view the recorded data, configure the C.A 1227, benefit from remote display and generate automatic reports


Additional specifications:

- Flow rate measurement range: 0.25 m/s to 35.0 m/s
  Intrinsic uncertainty: ± 3 % of reading ± 4 counts
- Flow rate measurement with the cones kit available as an accessory
  Square cross-section: 346 x 346 mm / Circular cross-section: Ø210 mm
- Temperature measurement range: - 20.0 to + 50.0 °C
  Intrinsic uncertainty: 0 to 50 °C : ± 0.8 °C / -20 to 0 °C : ± 1.6 °C
- Min, Max, Average, MAP and Hold functions / Backlighting
- Air speed units: m/s, km/h, fpm, mph
- Flow rate units: m3/s, m3/h, l/s, cfm
- Recording up to 1 million points
- USB or Bluetooth interfaces
- Vane diameter: Ø8 mm
- Casing dimensions: 150 x 72 x 32 mm / Sensor: 160 x 80 x 38 mm
- Weight: 400 g with batteries
- Compatible with the Multifix accessory
- Shockproof protective sheath available as an accessory
