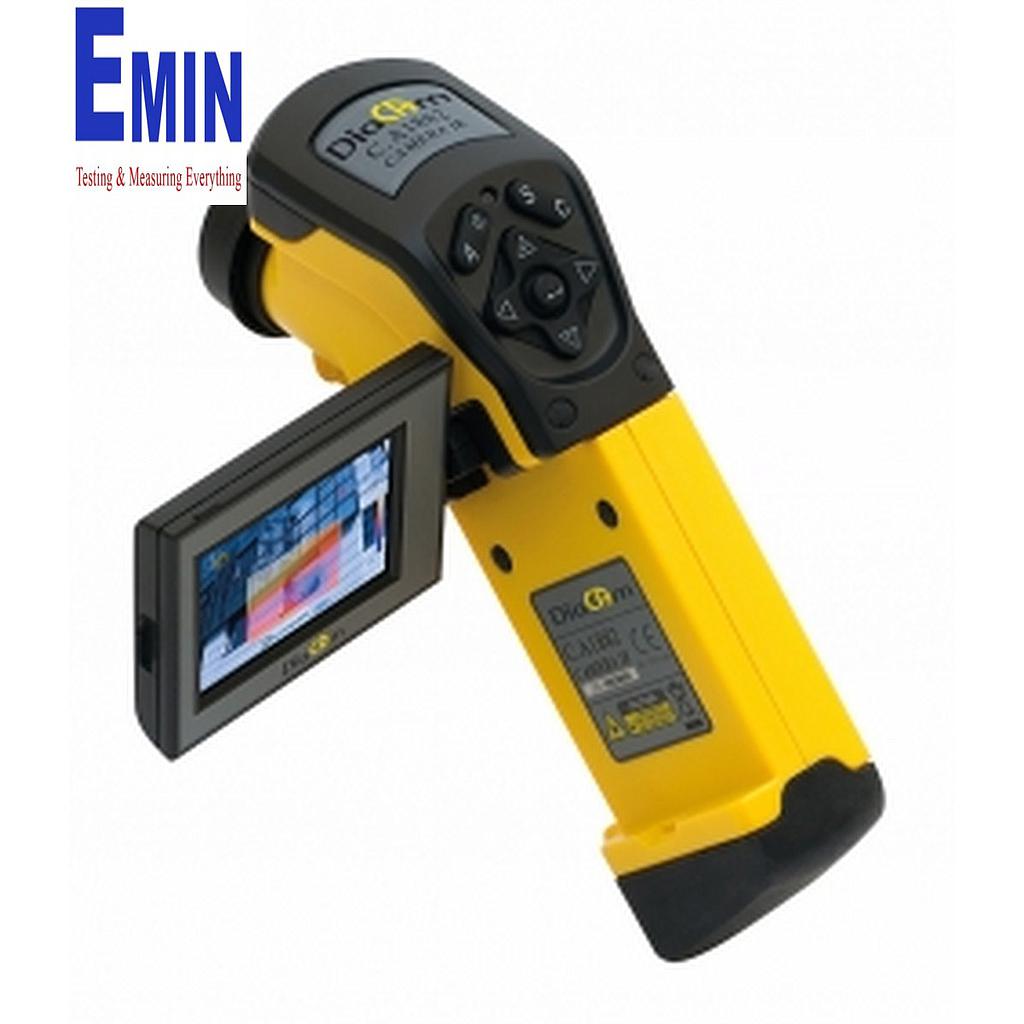

Chauvin Arnoux CA 1882 DiaCAm(P01651215)红外热成像仪

  • 制造商: Chauvin Arnoux
    Model: C.A 1882
    来源: Ireland
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Manuafacturer: Chauvin Arnoux
Model : C.A 1882
Item: P01651215
Warranty : 12 month

Detector specifications
- Detector: 160 x 120
- Type: UFPA microbolometer, 8-14 μm
- Frequency: 50 Hz*
- Sensitivity (N.E.T.D): 0.08 °C @ 30 °C
Temperature measurement
- Temperature range: -20 °C to +250 °C
- Accuracy: ±2 °C or ±2 % of reading
Image performance
- Thermal image
+ Field of view: 10° x 8°; 12° x 10°; 38° x 28°
+ Spatial resolution: 2.2 mrad; 4.4 mrad
+ Min. focal distance: 10 cm
+ Focusing: Manual
- Real image: Yes
+ "MixVision" mode: Merge function with adjustment from 0 to 100 % of the level of the thermal image overlay in the real image
+ Image size : 640 x 480 pixels
Functions
- Emissivity correction: Yes
- Parameter settings: Emissivity, environmental temperature, distance, relative humidity
- Measurement tools: 1 manual cursor + automatic Min/Max detection on adjustable area
- Laser pointer: Yes
- Memory: 1,000 thermal images as standard
- Type of storage: Removable 2 GB SD card (as standard), up to 16 GB
- Screen: 3 inches, multi-directional
General specifications
- Battery: Lithium-Ion rechargeable battery / Battery life: 3 hours
- Battery recharging : Recharging via external charger
- Protection: IP54

State of delivery:  delivered in plain cardboard box with battery charger, docking station, battery, 2 GB mini-SD card, SD card reader , video cable, RayCam Report software on CD-ROM, operating manuals and measurement reports.
Accessories
-Battery P01296045
-Battery charger  P01296046
-Bag P01298075
-Docking station P01651528
-Mains power supply  P01651527
-Sun-shade P01651532
-In-vehicle charger adapter HX0061
-C.A 1875 training bench P01651620

Details

datasheet
user guider

Description

With its 160 x 120 detector and 0.08°C sensitivity, this camera is particularly ergonomic and simple to use, offering easy access to the analysis functions (manual cursor, automatic detection of hot/cold spots on adjustable area). Its support with tripod insert and its 38° x 28° wide-angle lens allowing users to expand the field of analysis without increasing the distance from the object make this camera an ideal tool for building inspections.

  1. Detector: 160 x 120
  1. Thermal sensitivity: 0.08 °C at 30 °C
  1. Temperature range: - 20 °C to + 250 °C
  1. Wide-angle lens: 38° x 28°
  1. MixVision mode for viewing the IR image, the real image and an overlay of the IR image on the real image
  1. Storage of 1,000 radiometric images on SD card
  1. 3-inch multi-directional screen
  1. Protection: IP 54
  2. Video output for use on video projector
  3. RayCAm Report software as standard (analysis and reports)
