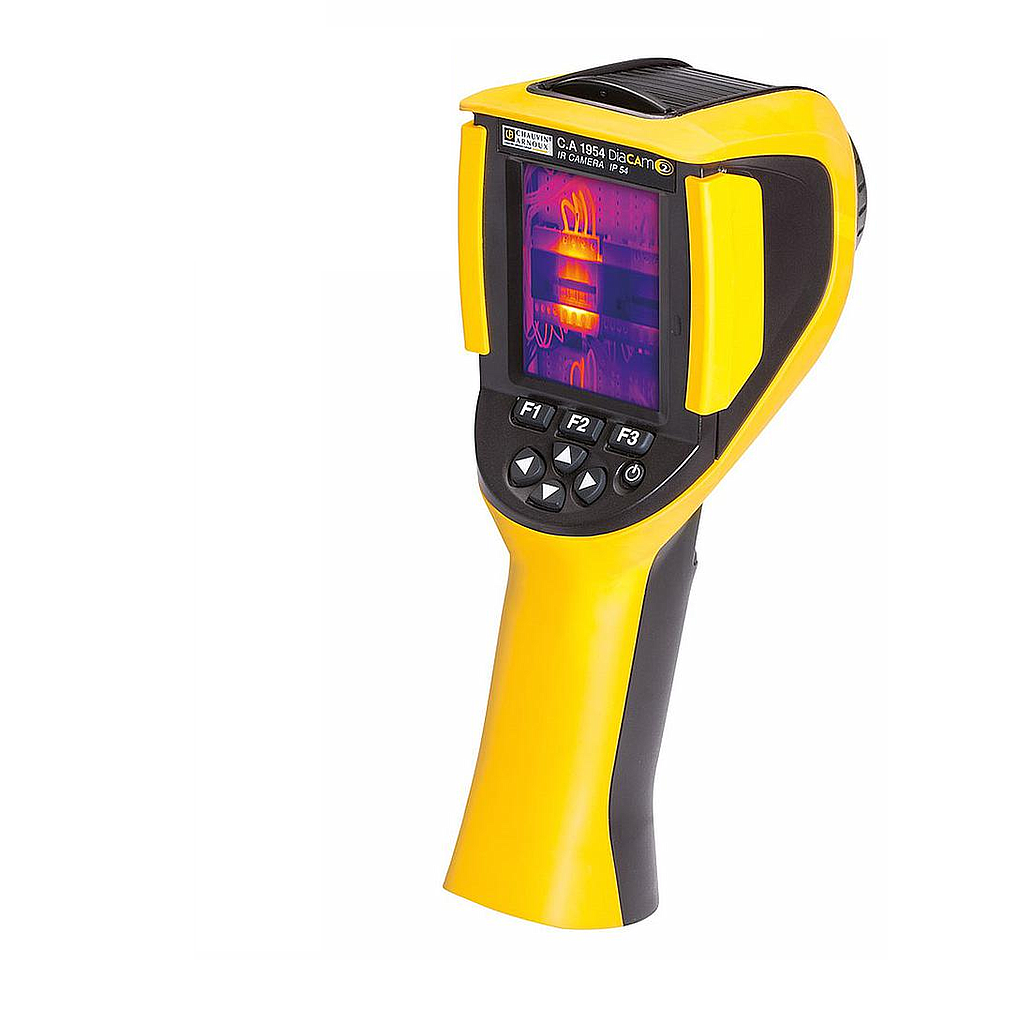

Chauvin Arnoux C.A 1954 DiaCAm2 热像仪 (alarm, +250 °C)

DETECTOR
Dimensions: 160 x 120
Type: UFPA microbolometer, 8 ~14 μm
Frequency: 9 Hz
Sensitivity: (N.E.T.D) 80 mK @ 30 °C (0.08 °C @ 30 °C)
TEMPERATURE MEASUREMENT
Temperature range: -20 °C to +250 °C
Accuracy: ±2 °C or ±2 % of reading
IMAGING PERFORMANCE
Thermal image: -20 °C to +250 °C
Field of view: 38° x 28°
IFOV (spatial resolution): 4.1 mrad
Focus: Fixed
Minimum focal distance : 30 cm
Real image : Yes (320 x 240 pixels)
Display mode: Thermal image, real image with automatic parallax compensation.
Image merging available with PC software.
ANALYTICAL FUNCTIONS
Measuring tools: 1 manual cursor + 1 automatic detection + Min Max Avg on
adjustable area + temperature profile + isotherm
Parameter settings: Emissivity, environmental temperature, distance, relative humidity
Voice comments: Yes, by Bluetooth (earpiece supplied)
Connectivity:
Environmental measurements:
C.A 1821, C.A 1822, C.A 1823, C.A 1246, C.A 1227
Clamp meters: F407, F607
Multimeters: MTX 3292, MTX 3293
Storage: On 2 GB micro SD card (approx. 4,000 images) Exchangeable up to 32 GB
Image format: .png (thermal and real images saved simultaneously)
Laser pointer: yes
IMAGE DISPLAY
Settings: Automatic or manual adjustment of the min max for the palette
Freezing of image: Animated or fixed image
Display of the images: Multi-palette
Screen: 2.8 inches
POWER SUPPLY
Type: NiMH rechargeable batteries with low self-discharge
Recharging method: External (charger supplied)
Battery life: 9 hrs (typical) / 50 % brightness and Bluetooth deactivated
ENVIRONMENTAL SPECIFICATIONS
Operating temperature: -15 °C to +50 °C (-4 °F to +122 °F)
Storage temperature range: -40 °C to +70 °C (-40 °F to +158 °F)
Humidity: 10 % to 95 %
Compliance: EN 61326-1: 2006 / EN 61010-1 Ed. 2
Resistance to falls: 2 metres on all surfaces
Shock resistance: 25 G
Vibration resistance 2 G
PHYSICAL SPECIFICATIONS
Weight / Dimensions: 700 g with rechargeable batteries / 225 x 125 x 83 mm
Ingress protection: IP 54
Interfaces:
- USB link and Mass Storage function. The product is then
recognized as a USB key to simplify image transfers
- Bluetooth for connectivity with earpiece (voice comments)
and Chauvin Arnoux® measuring instruments (C.A 1821,
C.A 1822, C.A 1823, C.A 1246, C.A 1227, F407, F607) and
Metrix® products (MTX 3292, MTX 3293)
Mounting on tripod: Yes, ¼’’ insert on the camera
GENERAL INFORMATION
Report generation software: Supplied as standard with automatic report generation in .pdf or .docx (Word) format / Compatible with W7, W8, W10, 32 & 64 Bits
Standard state at delivery
C.A 1954 thermal camera delivered in a site-proof
case with 4 NiMH batteries and battery charger,
1 micro SD HC card, 1 USB cable, 1 Bluetooth
earpiece, 1 specimen measurement report,
CAm Report® software on CD-Rom and user’s manual
