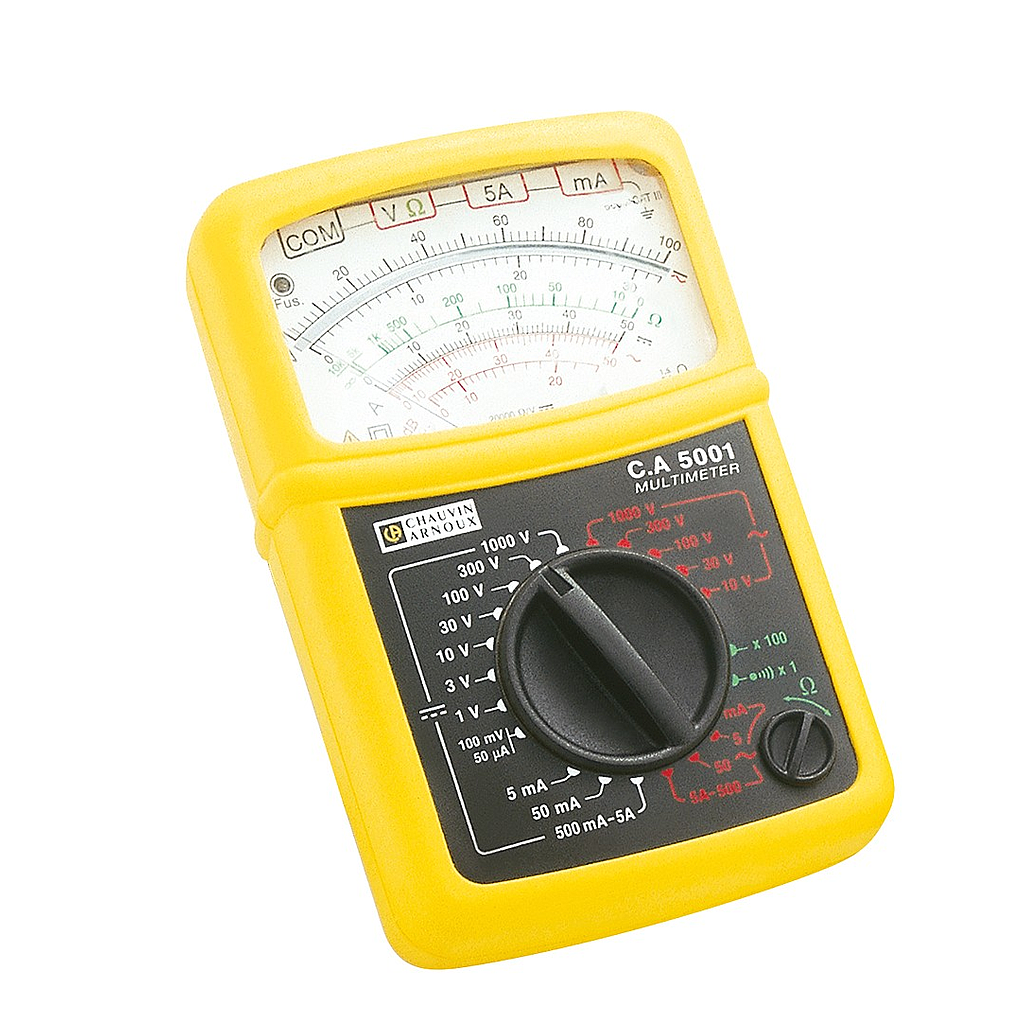

Chauvin Arnoux CA 5001 模拟万用表 (P01196521E)

- DC voltage : 8 ranges: 100 mV /.. / 1,000 V
- AC voltage : 5 ranges: 10 V /.. / 1,000 V
- Internal resistance : 20 kΩ/V
- Working frequency : 10 Hz ...100 kHz depending on range
- DC current  : 5 ranges: 50 μA  /.. / 5 A
- AC current  : 4 ranges: 5 mA  /.. / 5 A
- Typical accuracy : 1.5 % on V .  2.5 % on V~and A .  10 % on Ω
- Power supply: 1.5 V battery
- Battery life: 10,000 measurements of 15 s
- Electrical safety : IEC / EN 61010-1 Edition 2 • 600 V Cat III-2
- Protection : HRC fuses: 0.5 A and 5 A
- Degree of watertightness: IP 40
- Environmental conditions: -10 °C ... +55 °C and RH < 90 %
- Dimensions / Weight: 160 x 105 x 56 mm / 500 g

State of delivery:  IEC 1010 safety leads with test probes, battery and user manual.
Accessories:
- Shoulder bag (240 x 230 x 70 mm)  P01298033
- Carrying holster (220 x 180 x 75 mm)  P01298036
- Carrying case (270 x 200 x 65 mm)  with precut foam insert:
+ for the C.A 5001 or C.A 5003  P01298037
+ for the C.A 5005 and MN 89   P01298037A

Detail

datasheet
user guider

Description

The C.A 5001 is a very competitively-priced analogue multimeter designed to meet all the needs of electricians.

Specifications:

  • DC voltage: 100 mV to 600 V (8 ranges)
  • Accuracy: 1.5% except with 100 mV range (2.5%)
  • AC voltage: 10 V to 600 V (5 ranges)
    Bandwidth: [20Hz-100kHz] on 10 V range,  [20Hz-1kHz] on 300 V and 1,000 V ranges
    Accuracy: 2.5% except with 100 mV range (3%)
  • Impedance: 20 kΩ/V
  • DC current: 50 µA to 5 A (5 ranges)
  • AC current: 5 mA to 5 A (4 ranges)
    Bandwidth: [40 Hz-5 kHz]
    Accuracy: 2.5% except with 5 A range(5%)
  • Resistance: 10 kΩ and 1 MΩ
  • Audible continuity test: R < 50 Ω
  • dB scale (V AC).
  • Fuse status LED
  • Dimensions: 160 x 105 x 56 mm
  • Weight: 500 g
  • Use on any installation rated lower than or equal to CAT III 600 V as per IEC/EN 61010-1 Edition 2
