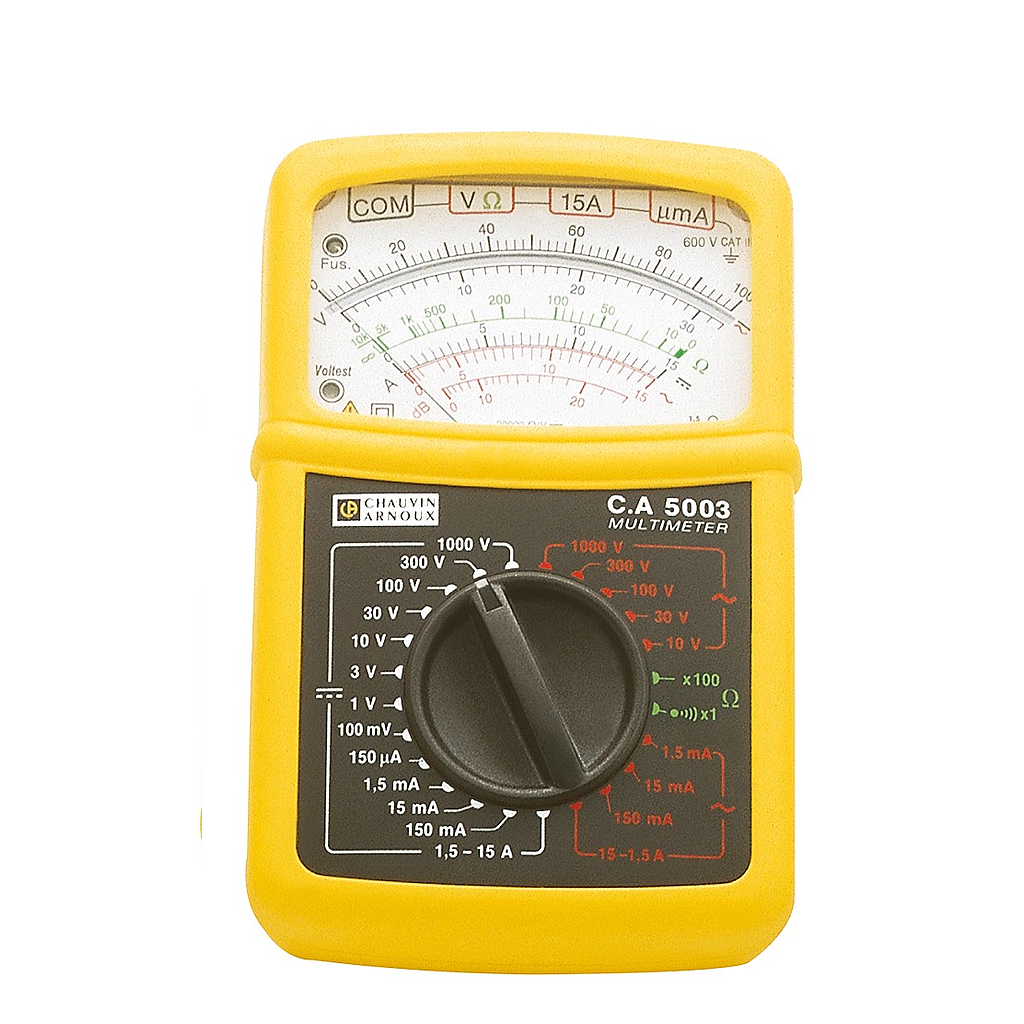

Chauvin Arnoux CA 5003 模拟万用表 （P01196522E）

- DC voltage : 8 ranges: 100 mV /.. / 1,000 V
- AC voltage : 5 ranges: 10 V /.. / 1,000 V
- Internal resistance : 20 kΩ/V
- Working frequency : 10 Hz ...100 kHz depending on range
- DC current  : 7 ranges: 50 μA /.. / 15 A
- AC current  : 5 ranges: 1.5 mA /.. / 15 A
- Resistance:  2 ranges: 10 kΩ and 1 MΩ
- Audible continuity test: R < 50 Ω
- Scale in dB for V AC: 0 ... +22 dB
- Typical accuracy : 1.5 % on V .  2.5 % on V~and A .  10 % on Ω
- Power supply: 9 V battery
- Battery life: 10,000 measurements of 10 s
- Electrical safety : IEC / EN 61010-1 Edition 2 • 600 V Cat III-2
- Protection : HRC fuses: 1.6 A and 16 A
- Degree of watertightness: IP 53
- Environmental conditions: -10 °C ... +55 °C and RH < 90 %
- Dimensions / Weight: 160 x 105 x 56 mm / 500 g

State of delivery:  IEC 1010 safety leads with test probes, battery and user manual.
Accessories:
- Shoulder bag (240 x 230 x 70 mm)  P01298033
- Carrying holster (220 x 180 x 75 mm)  P01298036
- Carrying case (270 x 200 x 65 mm)  with precut foam insert:
+ for the C.A 5001 or C.A 5003  P01298037
+ for the C.A 5005 and MN 89   P01298037A

datasheet
user guider

Description

The C.A 5003 is a very competitively-priced analogue multimeter designed to meet all the needs of electricians.

Specifications:

• DC voltage: 100 mV to 600 V (8 ranges)
• AC voltage: 10 V to 600 V (5 ranges)
• DC current: 50 µA to 15 A (7 ranges)
• AC current: 1.5 mA to 15 A (5 ranges)
• Automatic calibration
• “Voltest” LED if voltage present in ohmmeter mode
• Typical accuracy: 1.5%
• Impedance: 20 kΩ/V
• Resistance: 10 kΩ and 1 MΩ
• Audible continuity test: R < 50 Ω
• dB scale (AC voltages)
• Fuse status LED
• Dimensions: 160 x 105 x 56 mm
• Weight: 500 g
• IP53
• Use on any installation rated lower than or equal to CAT III 600 V as per IEC/EN 61010-1 Edition 2
