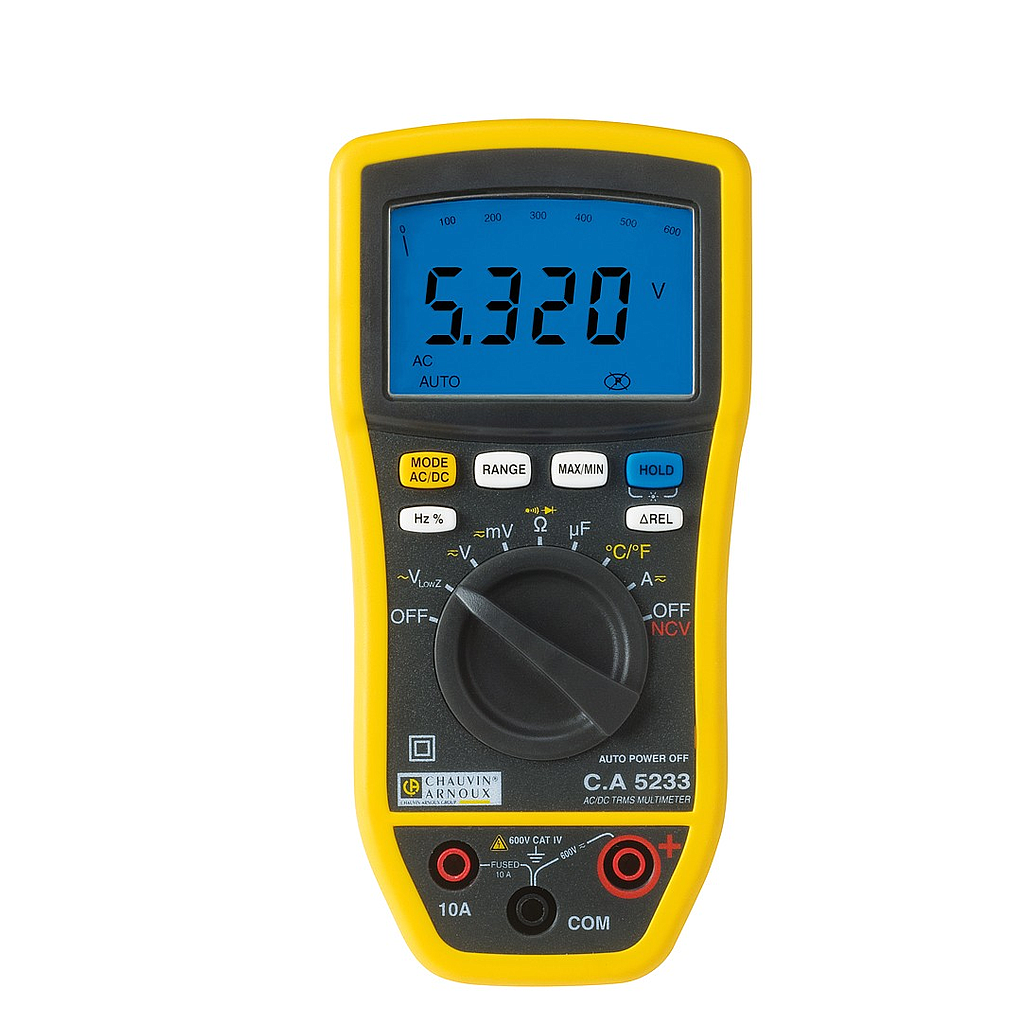

Chauvin Arnoux C.A 5233 TRMS 数字万用表 (3 kHz (V) / 1 kHz (A))

- Display: 6,000-count backlit display + 61-segment bargraph
- Acquisition: True RMS
- Autorange or manual: Yes
- Bandwidth: 3 kHz (V) / 1 kHz (A)
- Best accuracy: 0.2 %
- AC voltage: 6 calibres – 600 V - Resolution: 0.01 mV
- AC LowZ voltage: 4 calibres – 600 V - Resolution: 0.001 V
- DC voltage: 6 calibres – 600 V - Resolution: 0.01 mV
- AC current / DC current: With 1 mV/A clamp: 2 calibres - 10 A; Resolution: 0.001 A
- Resistance measurement: 6 calibres - 60 MΩ - Resolution: 0.1 Ω
- Audible continuity / Diode test: Yes / Yes
- Frequency / Duty ratio: 3 calibres: up to 3 kHz / Yes
- Capacitance:  calibres – 1,000 μF - Resolution: 0.01 nF
- Temperature  (with external K thermocouple) : 1 calibre ; 0 °C to +760 °C / -4 °F to +1,400 °F; Resolution: 1°
- No-contact voltage detection (NCV): Yes
- Display Hold function: Yes
- Relative mode: yes
- Min-Max: yes
- Power supply: 9 V alkaline battery (6LF22)
- Leakproofing: IP54
- Dimensions: 155 x 75 x 75 mm
- Weight: 320 g
- Electrical safety (IEC 61010): 600 V CAT IV / 600 V CAT III

Delivered with 2 measurement leads equipped with test probes, a 9 V alkaline battery and an operating manual in 5 languages +temperature sensor and adapter
ACCeSSoRieS
- C.A 1871 infrared probe for multimeter   P01651610Z
- C.A 801 single-channel temperature adapter   P01652401Z
- C.A 803  two-channel temperature adapter with differential measurement  P01652411Z
- Multi-position DMM mounting accessory   P01102100Z
- CMI214S current measurement lead   P03295509
- Adapter for K thermocouple (delivered 1 wire thermocouple)   P06239306
- HRC fuse, 6 x 32, 10 A 600 V 50 kA   AT0084

Details

datasheet
user guider

Description

This compact, comprehensive digital multimeter is equipped with all the functions required by electricians for maintenance of low and medium-power residential and tertiary equipment and installations.
Ergonomic and simple to use, it is exceptionally easy to read with its 6,000-count backlit display with bargraph, 2 "Off" positions for greater effectiveness and a compact casing with a non-slip protective coating for excellent handling.

  • CAT IV 600V
  • TRMS measurements
  • Large 6,000-count backlit display (digits 8 mm high)
  • 61-segment bargraph
  • Double OFF position
  • No-contact voltage detection  (NCV)
  • VLow Z low-impedance voltage measurement to avoid stray voltages.
  • Min, MAX and RELative functions
  • Measurement up to 600 V
  • AC or DC current measurement up to 10 A
  • Frequency measurement
  • Temperature measurement
  • Capacitance measurement
  • 60 mV range
  • Compact IP54 casing with built-in shockproof protection
  • Compatible with the multi-function mounting accessory
