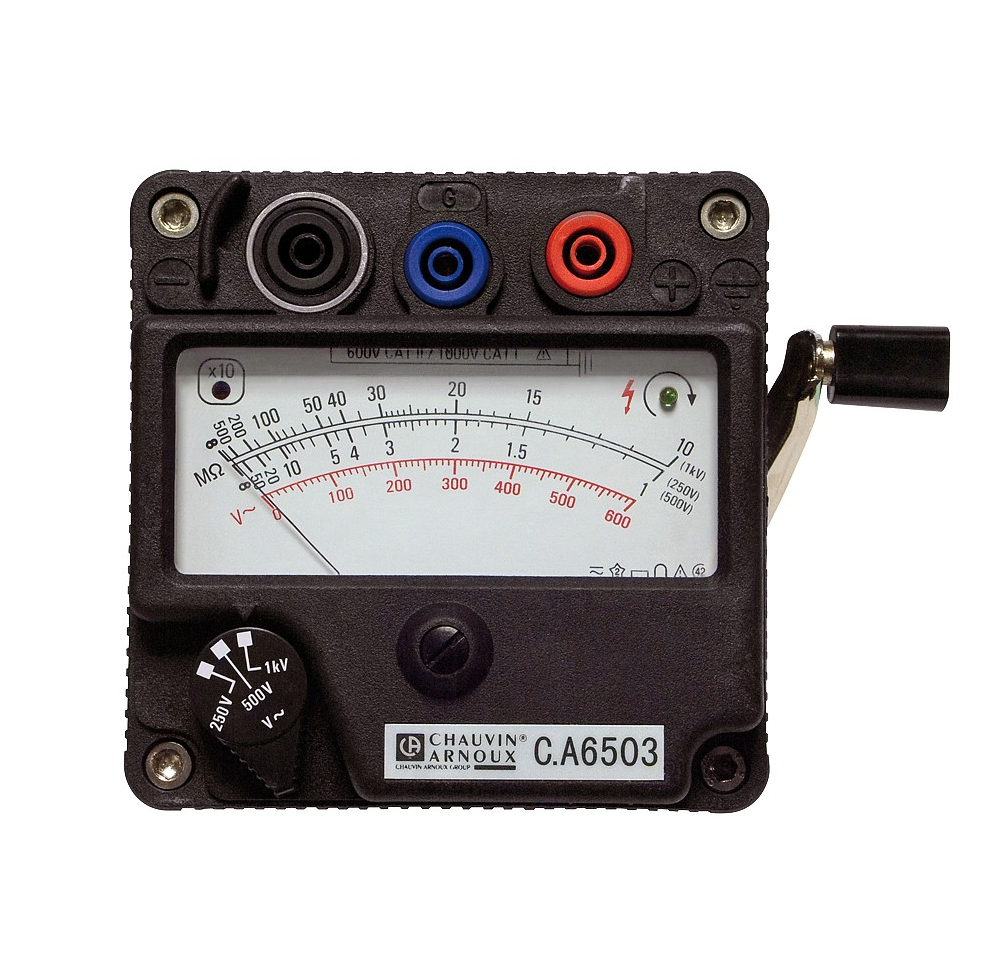

Chauvin Arnoux CA 6503(P01132504)手摇式绝缘电阻兆欧表

Insulation (MO calibre)
- Test voltage (VDC) : 500 V
- Range: 0.5 tới 200 MΩ
- Accuracy: ± 2.5 % of measurement
Voltage
- Range: 0 to 600 VAC
- Frequency: 45 to 450 Hz
- Accuracy: 3 % at full scale
Other features
- Display: Analog
- Dimensions: 120 x 120 x 130 mm
- Weight: 1.06 kg
- Power supply: Hand-cranked magneto: stable, constant test voltage
- Electrical safety: IEC 61010 – 600 V CAT II / 300 V CAT III


State at delivery:  Delivered in on-site case with 1 operating manual, 3 elbowed/straight PVC leads 1.5 m long (black/red), 1 earth lead, 3 crocodile clips (black/red), 1 black test probe.

Optional compatible accessories for VX 0100:
- C.A 846 thermo-hygrometer  P01156301Z
- C.A 861 thermometer + K thermocouple  P01650101Z
- 0.2 A fuses (set of 10)  P02297302
- Set of 2 crocodile clips (red/black) P01102052Z
- Set of 2 test probes (red/black)   P01102051Z
- Set of 2 leads 1.5 m long (red/black)  P01295283Z
- 5 crocodile clips (red, black, blue, yellow, green/yellow   P01101849
- 3 safety leads 1.5 m long (red, blue, black)    P01295171

Detail

datasheet
user guider

Description

Hand-cranked portable insulation tester

Portable, lightweight and compact, the C.A 6503 insulation tester can be used totally independently because it is powered by a magneto.

This all-terrain tool is ideal for use on industrial and residential sites, electricity distribution networks and telecommunications equipment. It is suitable for a wide range of applications such as ensuring that electrical installations comply with the applicable standards, or carrying out preventive maintenance on cables, motors, circuit-breakers, transformers, etc.

Specifications:

  • Test voltages: 250, 500 and 1,000 V DC
  • Measurement range: 1 to 5,000 MΩ
  • Power supply: magneto
  • Protection: IP52
  • Electrical safety: IEC 61010 300V CAT III
  • Dimensions : 120 x 120 x 130 mm / 1.06 kg
