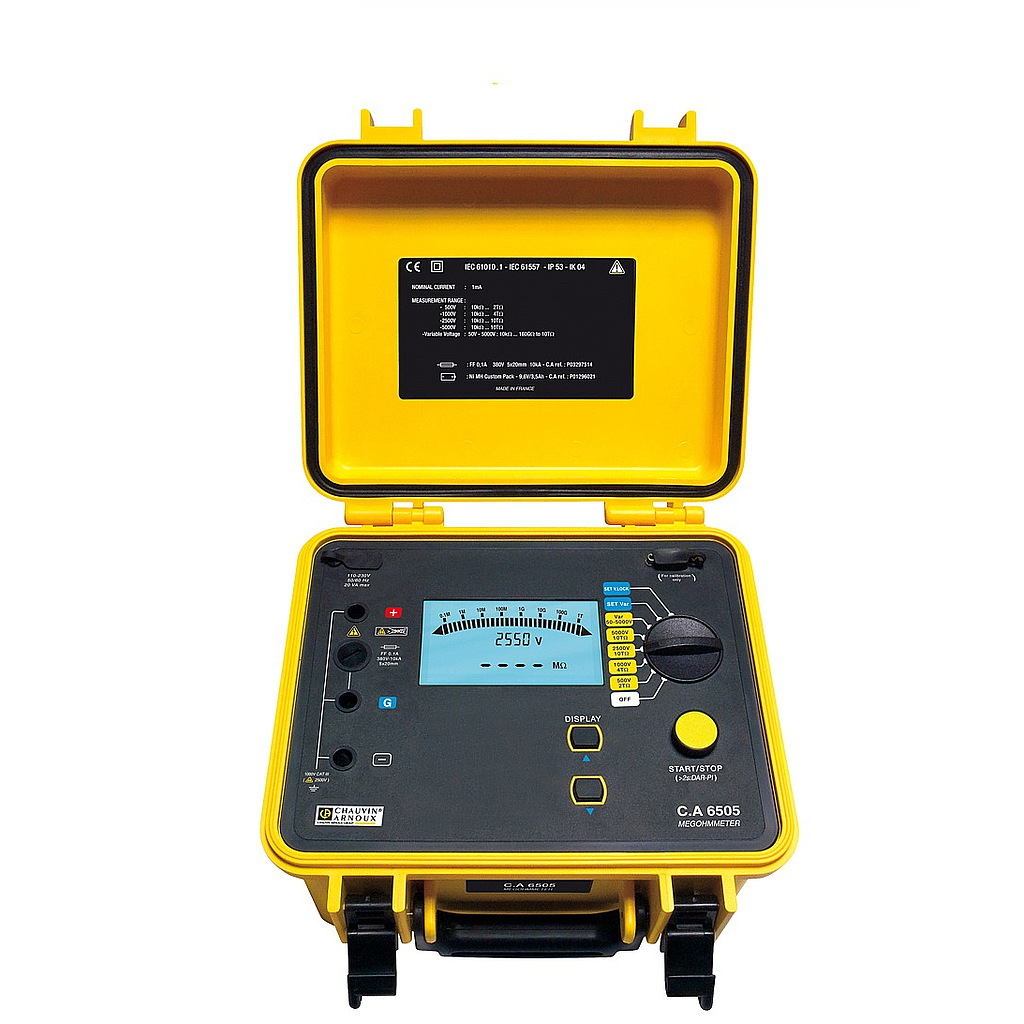

Chauvin Arnoux C.A 6505 Insulation testers (5.1KV)

- Saving of measurements Rechargeable battery
- Voltage: 1 to 5,100 VAC/DC
- Insulation: 500/1,000/ 2,500 / 5,000 VDC+ variable from 50 V to 5,100 VDC(10 or 100 V increments)
- Range : 10 kΩ to 10 TΩ
- Capacitance: 0.001 to 49.99 μF
- Current: 0.001 nA to 3,000 μA
- Alarms: yes
- Smoothed display: no
- Chronometer: yes
- Prog. test time: yes
- Quality ratios: DAR / PI
- R(t): no
- Communication: no
- Power supply: NiMH rechargeable battery
- Safety: IEC 61010-1 Cat. III 1000 V (Cat. I, 2,500 V)- IEC 61557
- Display: giant LCD + bargraph
- Backlighting: yes
- Dimensions: 270 x 250 x 180 mm
- Weight: 4.3 kg
- PC software: no

State at delivery: carrying bag containing: 3 HV leads 3 m long with large crocodile clips (including one shielded), 1 lead with rear connection (35 cm) + 1 power cable

datasheet
user guider
catalog vietnamese
catalog english

The C.A 6505  5 kV megohmmeter makes industrial equipment inspection and maintenance testing particularly simple.
In its site-proof casing suitable for even the severest conditions, the C.A 6505 offers optimum accuracy and expertise for insulation testing.
As soon as it is connected, it measures the voltage, frequency, capacitance and residual current values on the installation or equipment to be tested.
Functions and specifications:
    Fixed 500/1,000/2,500/5,000 V DC test voltage or programmable from 40 V to 5,100 V DC
    Measurement range: 10 kΩ to 10 TΩ
    Programmable test duration
    Calculation of DAR & PI quality ratios
    Measurement of voltage, capacitance and leakage current
    LCD screen with bargraph
    Power supply by NiMh rechargeable battery
    Compliant with IEC 61557
    IP53 protection
    IEC 61010 1,000 V CAT III safety
    Dimensions: 270 x 250 x 180 mm / 4.3 kg
