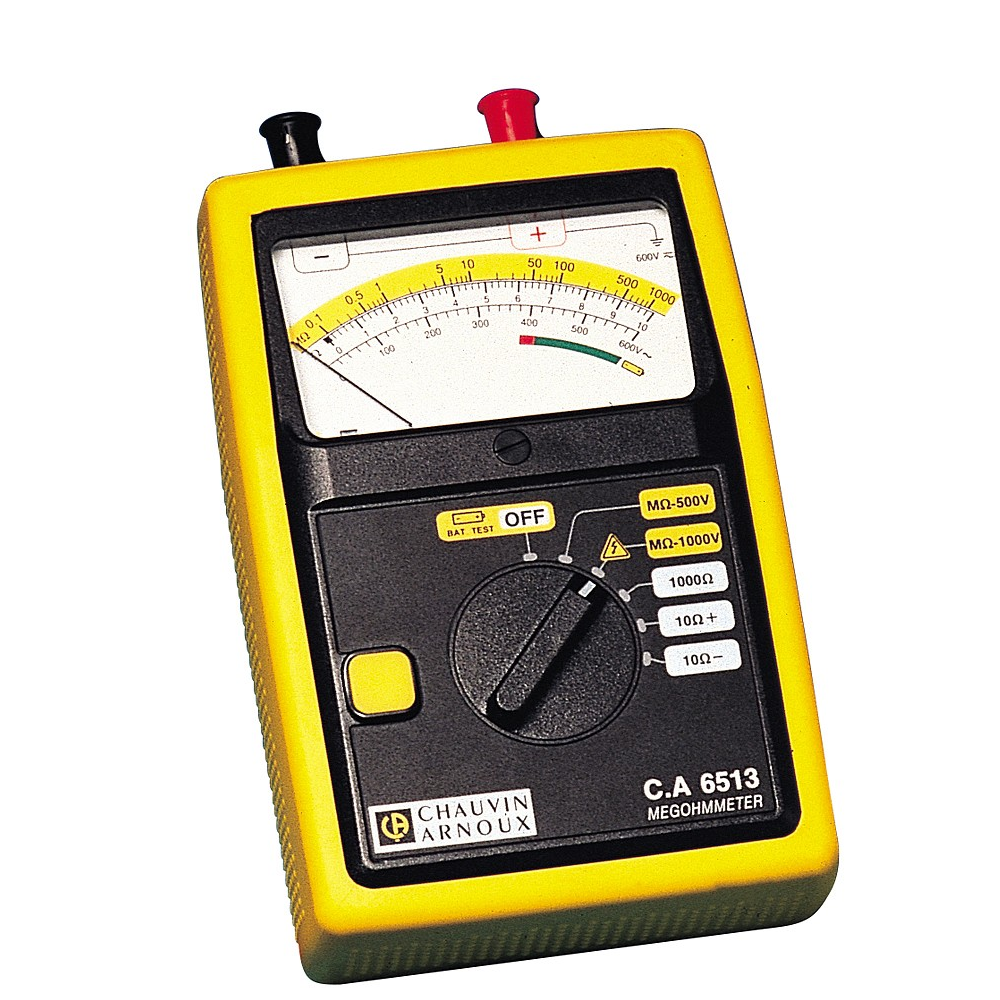

Chauvin Arnoux C.A 6513 绝缘电阻表 (1000V/1000MΩ)

Insulation (MΩ calibre)
- Test voltage (VDC) : 250 V / 500 V / 1000 V
- Range: 0.1 to 1000 MΩ
- Accuracy: ± 5 % of measurement
Resistance
- Range: 0 to 1000 MΩ
- Accuracy: ± 3 % at full scale
Continuity
- Range: -10 to +10 Ω
- Accuracy: ± 3 % at full scale
- Measurement current: ≥ 200 mA
- Reverse current: Yes
Voltage
- Range: 0 to 600 VAC
- Frequency: 45 to 400 Hz
- Accuracy: 3 % at full scale
Other features
- Display: Analog
- Dimensions: 167 x 106 x 55 mm
- Weight: 1.06 kg
- Power supply: 4 x 1.5 V AA batteries
- Electrical safety: IEC 61010 – 600 V CAT III


State at delivery:  Delivered mounted in its shockproof housing with 2 elbowed/straight PVC leads 1.5 m long (black/red), 1 black test probe, 1 red crocodile clip, 1 operating manual, 4 x 1.5 V AA batteries.

Optional compatible accessories for VX 0100:
-C.A 846 thermo-hygrometer P01156301Z
-C.A 861 thermometer + K thermocouple  P01650101Z
-Set of 2 crocodiles clips (red/black) P01102052Z
-Set of 2 test probes (red/black) P01102051Z
-Set of 2 leads 1.5 m long (red/black) P01295283Z
-1.5 V AA alkaline battery P01296033
-1.5 V AA alkaline battery (x12) P01296033A
-1.5 V AA alkaline battery (x24) P01296033B
-1.6 A fuse P01297022
-Shockproof housing no.13 P01298016

Details

datasheet
user guider

Description

Analogue insulation tester at 1,000 V DC

The C.A 6513 is an economical insulation and continuity tester popular with self-employed electricians, installers and maintenance departments for measurements on electrical devices and installations

Functions and specifications:

  • Insulation measurement: up to 1,000 MΩ (1 range) at 500 V and 1,000 V DC
  • AC voltage measurement: 0 to 600 V
  • Continuity measurement: -10 Ω to +10 Ω (I = 200 mA)
  • Resistance measurements: 0 to 1,000 Ω
  • Automatic voltage absence testing  by direct measurement
  • Single input on two colour coded terminals
  • Easy reading of the indication and logarithmic scale
  • Power supply: 4 x LR6 1.5 V batteries
  • Compliant with IEC 61557
  • Electrical safety: IEC 61010 600V Cat III
  • Dimensions: 167 x 106 x 55mm; weight: 600g
