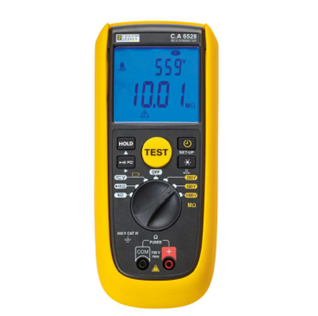

Chauvin Arnoux C.A 6528 绝缘和连续性测试仪 (1‐700V, 11 GΩ)

Industrial maintenance

Voltage

Measurement range/ resolution: 1‐700 V / 1 V

Accuracy / input impedance: ±1.2% R ± 1ct for AC+DC; ±1 R ± 1ct for DC / 25 MΩ

Operating frequency :DC; 30‐440 Hz

Insulation

Test voltage: 250-500-1,000 V

Range at maximum test voltage: 11 GΩ

Compliance with the IEC 61557‐2standard: 2 GΩ

Measurement range:

250 V 50 kΩ ‐ 4.2 GΩ

500 V 100 kΩ ‐ 4.2 GΩ

1 000 V 200 kΩ ‐ 11 GΩ

Measurement range / resolution: 50 kΩ ‐ 3.999 / 1 kΩ; (0.2)* 3.6‐39.99 MΩ / 10 kΩ; 36‐399.9 MΩ / 100 kΩ; 360‐4,200 MΩ / 1 MΩ; (1 kV) 3.6 ‐ 11.00 GΩ / 10 MΩ

Accuracy: 0.05‐399.9 MΩ : ±1.5 R ± 10cts; 360 ‐4,200 MΩ: ±4 R ± 10cts ; ±4 R ± 5cts (at 1,000 V); 3.6‐11 GΩ: ±10 R ± 10cts

Test voltage (I <1 mA): 0%+20%

Timer (min:s): 10s to 39min 59s

Alarms: 1 threshold / test voltage

Continuity

Measurement range: 0.02 Ω ‐ 40 Ω (200 mA)

Accuracy / open-circuit voltage: ±1.2% R ±3cts / 6 VDC < U < 9 VDC

Measurement current :≥ 200 mA (up to 2 Ω)

Continuity threshold (fast beep): 2 Ω / 1 Ω

Cable compensation: up to 5 Ω

Resistance

Measurement range / resolution: 1 ‐399.9 Ω / 0.1 Ω; 360‐3,999 Ω / 1 Ω; 3.60‐39.99 kΩ / 10 Ω; 36.0‐420.0 kΩ / 100 Ω

Accuracy: ±1.2% R ±3cts

General specifications

Display: 2 x 4,000 cts

Power supply / Automatic power-off: 6 x LR 6 or AA batteries / 10 min deactivatable

Battery life: 1,000 measurements: at 1 MΩ @ 1 kV (5 s ON / 25 s OFF); >3,000 continuity measurements (5 s ON / 25 s OFF) at 1 Ω

Dimensions / weight / IP rating: 218 x 95 x 63 mm / 760 g / IP 40

EMC / electrical safety: IEC 61326‐1 / IEC 61010‐1, IEC 61010‐2‐030 and IEC 61010‐2‐034 / 600V CAT IV

Compliance with standards: IEC 61557 parties 1, 2, 4 and 10

Including

2 safety leads, 1 red and 1 black

1 red crocodile clip

1 black test probe

1 protective sheath mounted on the instrument

6 x LR6 or AA batteries

1 safety datasheet

1 quick start guide

1 verification certificate
