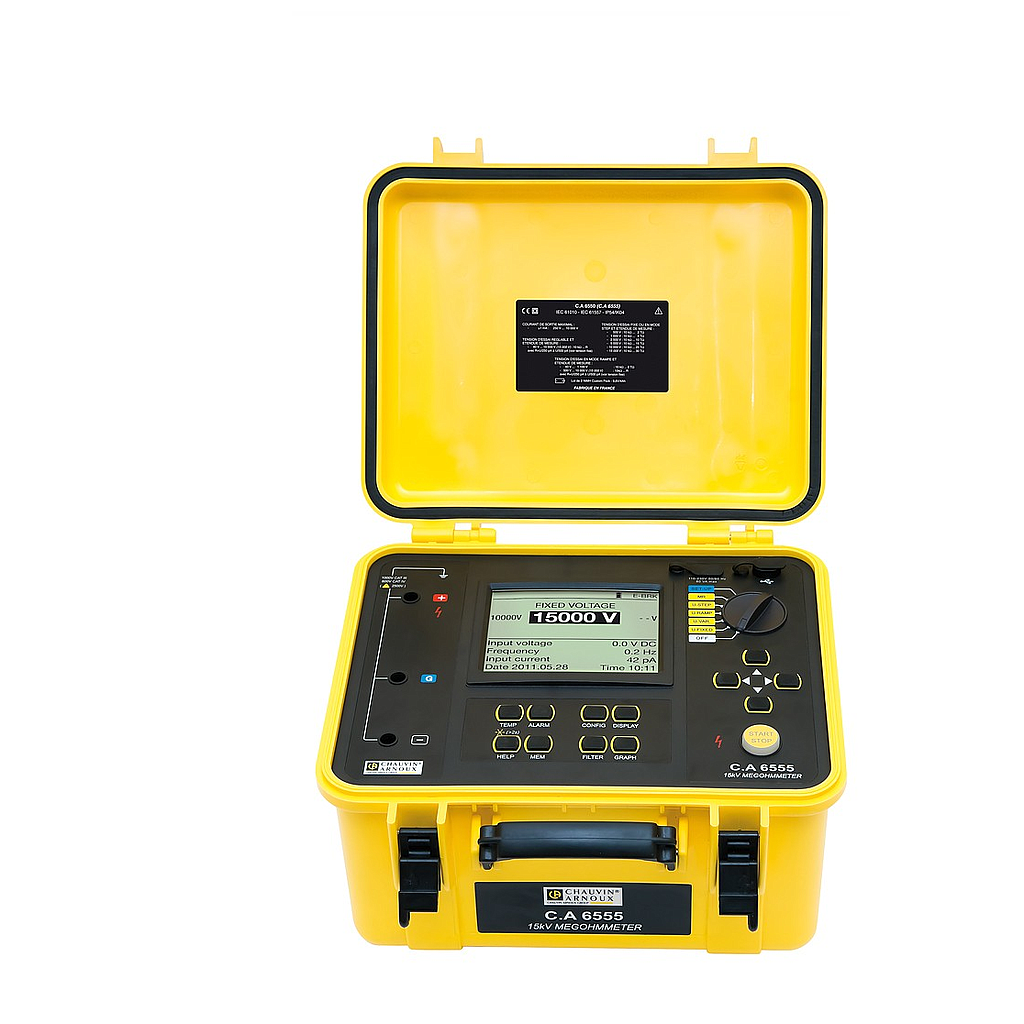

Chauvin Arnoux C.A 6555 Digital insulation testers (15 KV, 30TΩ)

- For  professionals
- Voltage: 15 KV
- Insulation: 500/1,000/2,500/5,000/10,000/15,000 V
- Range : 10 kΩ to 30 TΩ
- Continuity: yes
- Resistance : yes
- Capacitance: 0.001 - 9.999 μF / 10.00 - 49.99 μF
- Current: Leakage current from 0 to 10 mA
- Voltage ramp mode: 3 pre-configurable ramps
- R calcul. (ref. T°): yes
- Alarms: yes
- Smoothed display: yes
- Chronometer: yes
- Prog. test time: yes
- Quality ratios: DAR / PI / DD / ΔR (ppm/V)
- R(t): display on screen
- R(t) + U(t), I(t), I(u): Graphic display of curves
- Storage: 256 kB, up to 80,000 recordings
- Communication: Optically-isolated port for USB and RS232 link
- Power supply: NiMH battery rechargeable with external voltage
- Safety: 1,000 V Cat. IV - IEC 61010-1 and IEC 61557
- Backlighting: yes
- Dimensions: 340 x 300 x 200 mm
- Weight: 6.2 kg


State at delivery:
Delivered with bag containing :
• 2 safety leads 3m long equipped with an HV connector at each end (red / blue),
• shielded safety lead 3 m long equipped with an HV connector at one end and an HV connector with rear connection (black) at the other end,
• 3 crocodile clips (red, blue, black),
• 2 x CAT IV 1000 V test probes (red, black) for voltage measurement,
• 1 blue lead with rear connection,
• 1 mains power cable 2 m long,
• DataView® software,
• 1 optical / USB communication lead,
• 1 operating manual in 5 languages on CD-ROM

Accessories
3 HV leads with croc. clips for 10/15 kV  P01295466
Blue 8 m HV lead with croc. clips  P01295468
Red 8 m HV lead with croc. clips  P01295469
Black 8 m HV lead with croc. clips  P01295470
Blue 15 m HV lead with croc. clips  P01295471
Red 15 m HV lead with croc. clips  P01295472
Black 15 m HV lead with croc. clips  P01295473
3 x 3 m HV leads for 10/15 kV  P01295465
50 cm HV lead with rear connection  P01295467
2 red/black test probes P01295454Z
3 crocodile clips: red/blue/black  P01103062
Bag P01298066

Detail

datasheet
user guider
catalog vietnamese
catalog english

Description

15,000 V insulation tester

With its site-proof casing, the C.A 6555 insulation tester is used to check equipment insulation during manufacturing, on-site installation work, periodic inspections and recommissioning of installations.

They are ideal for electricity companies, manufacturers, installers, maintenance firms, industry, R&D centres and infrastructure.

Specially adapted for checking insulation on rotating machinery with a 12 kV power supply or higher, the C.A 6550 complies with the IEEE43
standard which recommends testing insulation at 5-10 kV.

Functions and specifications
:

  • Wide measurement range from 10 kΩ to 25 TΩ
  • Fixed or programmable test voltage from 40V to 15 kV
  • 5mA max. charging current
  • Large backlit LCD screen with digital display, bargraph and R(t)+u(t), i(t) and i(u) graphs
  • Automatic ratio calculation: DAR / PI / DD / DR (ppm/V)
  • Multiple test modes: voltage ramp and step with "burning", "early break" and "I-limit" modes
  • 3 filters to optimize measurement stability
  • Calculation of R at a reference temperature
  • 80,000-measurement storage capacity and real-time clock
  • Optically-isolated USB communication for transfer onto PC and report generation with DataView® software
  • Power supply NiMH rechargeable battery with external charger
  • Compliant with IEC 61557 -1 -2
  • Electrical safety: IEC 61010 1000V CAT IV
  • Dimensions: 406 x 330 x 174 mm / 6 kg
