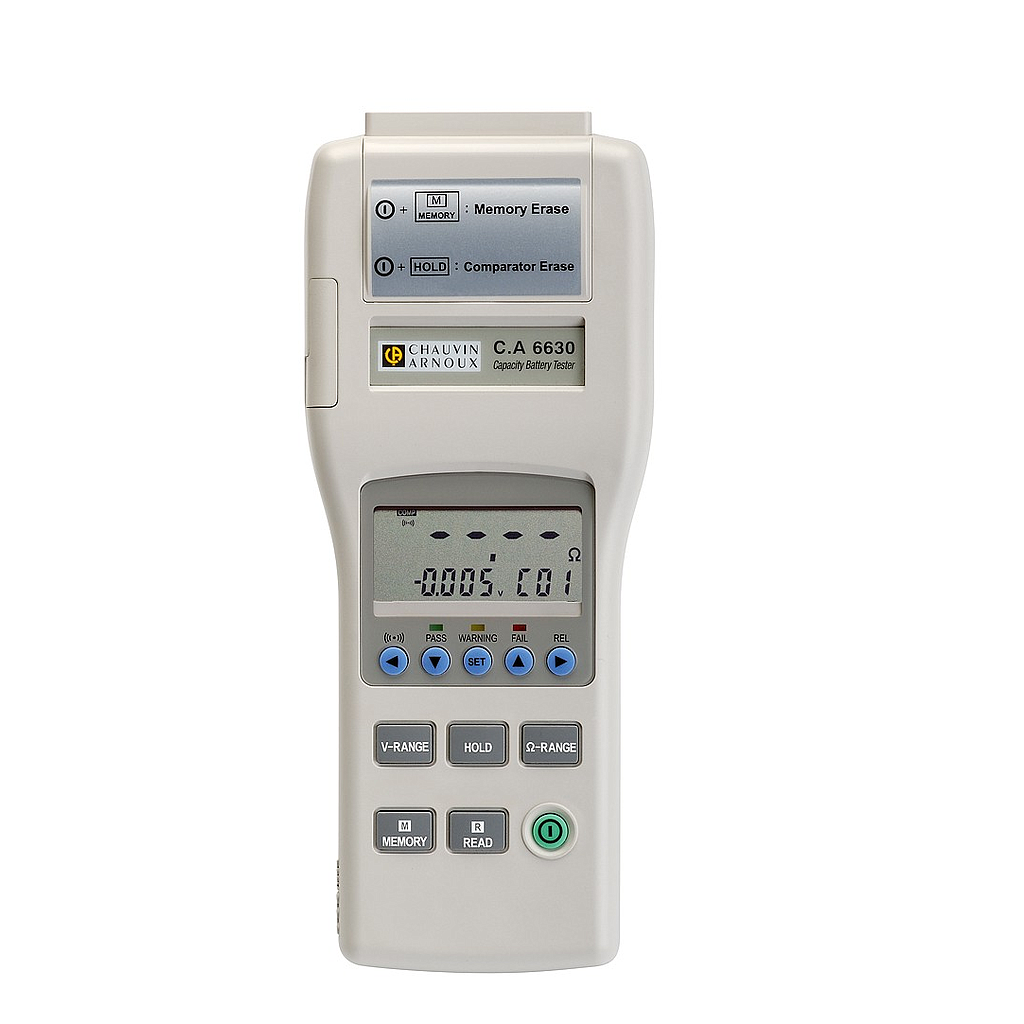

Chauvin Arnoux C.A 6630 电池测试仪

- LCD screen with 2 displays and numerous symbols
- measurement of resistance: t° coeff.: ± (0.1% of L + 0.5 digits) / °C
- measurement current: 1.5 mVAC / Measurement frequency: 1 kHz ± 10 %
+ Range/ Resolution/ Measurement current/ Accuracy: 40 mΩ / 10 μΩ / 37.5 mA/ ± (1 % of L + 8 digits)
+ Range/ Resolution/ Measurement current/ Accuracy: 400 mΩ/ 100 μΩ/ 3.75 mA/ ± (1 % of L + 8 digits)
+ Range/ Resolution/ Measurement current/ Accuracy: 4 Ω/ 1 mΩ/ 375 μA/ ± (1 % of L + 8 digits)
+ Range/ Resolution/ Measurement current/ Accuracy: 40 Ω/ 10 mΩ/ 37.5 μA/ ± (1 % of L + 8 digits)
- measurement of voltage: t° coeff.: ± (0.1% of L + 0.5 digits) / °C
+ Range/ Resolution/ Accuracy:  4 V/ 1 mV/ ± (0.1 % of L + 6 digits)
+ Range/ Resolution/Accuracy: 40 V/ 10 mV/ ± (0.1 % of L + 6 digits)
- powered by 6 x 1.5 V batteries – continuous autonomy: 7 hours
- maximum power consumed: 1 VA
- dimensions: 250 x 100 x 45 mm
- weight: 500 g, including batteries

State of delivery:
- A set of 2 x 1-m long measurement leads with retractable test probe tips
„- Data transfer software for exporting and processing stored data on a PC
„- C.A 6630 / PC connection cord
„- Instruction manual in 5 languages

Details

datasheet
user guider

Battery capacity tester

Ideal for preventive maintenance, the C.A 6630 battery capacity tester fits comfortably in one hand. It is simple to use and allows measurement of the internal resistance and open-circuit voltage.

It can test the following types of batteries: Nickel/Cadmium, Lithium-ion , Nickel/metal hybrid, Lead/Acid.

The 'compare' function can be used for quick checks on battery deterioration.

The C.A 6630 has 2 storage modes:
- manual up to 999 measurements
- automatic in logger mode

The PC software supplied, which is similarly user-friendly, can be used to:
- export the stored data onto the PC
- review and display in graphic form the values measured in data logger mode

In addition, it is delivered with its measurement leads.

Technical specifications:

- Resistance: 40 mΩ to 40 Ω

- Voltage: 4 V to 40 V

- 2-display LCD screen

- ZERO adjustment function for compensating the voltage circuit

- Dimensions/weight: 250 x 100 x 45mm / 500 g including batteries
