Chauvin Arnoux CA 745 N(P01191743Z)电压测试仪/ 连续性/ 相位/ 便携式

- Display range: 40 A AC - 400 A AC - 4,000 A AC
- Measurement range: 0.01 A - 39.99 A; 40.0 A-399.9 A; 400 A-3,999 A
- Resolution : 1 mA; 10 mA; 100 mA
- Accuracy: ± (2  %+ 10 số); ± (1.5 %+ 2 số); ± (1.5 %+ 2 số)
- Sensor clamping diam. / length:  Ø 100 mm / 350 mm
- Bandwidth: 10 Hz - 3 kHz
- Power supply: 2 x 1.5 V AAA/LR3 batteries
- Safety: IEC 61010 CAT IV 600V
- Operating temperature: 0°C to +50°C
- Instrument weight: Approx. 130 g
- Casing dimensions: 100 x 60 x 20 mm
- Length of connection cable: 0.8 m

State at delivery: 1 DigiFLEX sensor delivered in a blister pack with 2 x 1.5V AAA batteries, 1 elastic strap and an operating manual in 5 languages
Accessories & Replacement Parts:
- 1 set of black/red CAT III/IV test probes P01102152Z
- 1 set of black/red Ø 2 mm test probes, CAT II  P01102153Z
- 1 set of black/red Ø 4 mm test probes, CAT II  P01102154Z
- C.A 753  adapter for 2P+E sockets P01191748Z
- Velcro strap x 5  P01102113
- 1.5 V LR3/AAA alkaline battery (x 1)  P01296032
- Bag compatible with MultiFix accessory, 120 x 200 x 60  P01298074
- MultiFix mounting accessory  P01102100Z

Detail

datasheet
user guider
catalog vietnamese
catalog english

Advantages

  • Automatic recognition of AC and DC voltage
    No risk of tripping the high-sensitivity RCDs
    when testing phase/earth
    Phase test with a single test probe
    Resistance and continuity testing
    Removable test probes

Description

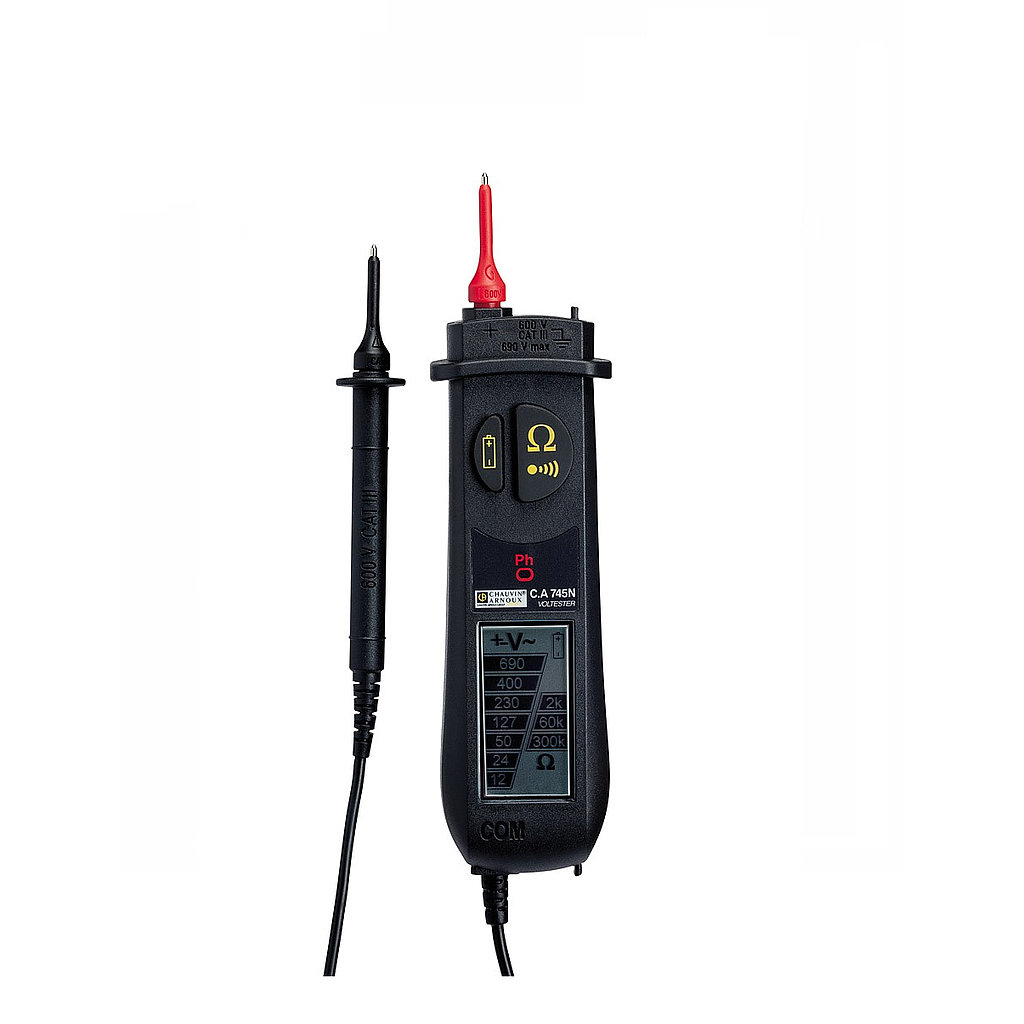

The C.A 745N voltage and continuity tester is equipped with an LCD screen to display the different thresholds in bargraph form. It is compact and specially designed for comfortable handling.
The test probes are removable and easy to replace. They are stowed in a compartment built into the instrument.
The C.A 745N can test AC and DC voltage up to 690 V, with automatic AC or DC detection. It displays the resistance value on 3 thresholds and also offers audible continuity testing. The In addition, the C.A 745N can be used for single-pole phase testing. With the C.A 745N, there is no risk of tripping high-sensitivity RCDs when performing a phase/earth test.

It offers a battery life of 150 operating hours with alkaline batteries.

Specifications:
•   Battery status check
•   Single-pole phase test
•   AC and DC voltage test (7 thresholds) with automatic AC or DC detection
•   Resistance (3 thresholds) with audible and visual alarm if a voltage is present
•   Audible continuity
•   600 V CAT I
