Chauvin Arnoux CA 755(P01191755)电压测试仪/ 连续性/ 相位/ 便携式

- DC voltage
+Measurement range: 3 mV to 1,000 V – 4 calibres
+Resolution: 1  mV to 1 V
- AC voltage
+Measurement range: 100 mV to 1,000 V – 4 calibres
+Resolution: 1  mV to 1 V
- Operating frequency: DC and 50/60 Hz
- Impedance: 10 MΩ
- No-contact voltage detection: With 230 V 50/60 Hz at a distance of approx. 5 cm
- Audible continuity test: R ≤ 30 Ω
- Resistance test
+Measurement range: 0.3 Ω  to 30 MΩ– 6 calibres
+Resolution: 0.1 Ω to  0.01 MΩ
- Capacitance tests
+Measurement range: 400 pF to 30  mF
+Resolution: 0.001 nF to 0.01 mF
- Standards: 600 V CAT III, IEC 61010-1, IEC  61010-031, IEC 61010-032, IEC 61010-033
- Power supply: 2 x  1.5 V LR03 batteries
- Battery life: 100 hours with alkaline batteries. Automatic standby mode after 10 minutes
- Dimensions / weight: 180 x 52 x 45 mm / 200 g

State at delivery:  delivered with 1 set of extra-fine test probes CAT III/CAT IV (red/black), 2 x 1.5 V AAA / LR3 alkaline batteries
Accessories & Replacement Parts:
- 1 set of black/red CAT III/IV test probes P01102152Z
- 1 set of black/red Ø 2 mm test probes, CAT II  P01102153Z
- 1 set of black/red Ø 4 mm test probes, CAT II  P01102154Z
- C.A 753  adapter for 2P+E sockets P01191748Z
- Velcro strap x 5  P01102113
- 1.5 V LR3/AAA alkaline battery (x 1)  P01296032
- Bag compatible with MultiFix accessory, 120 x 200 x 60  P01298074
- MultiFix mounting accessory  P01102100Z

Detail

datasheet
user guider
catalog vietnamese
catalog english

Advantages

  • Automatic recognition of AC and DC
  • Automatic recognition of resistors, diodes and capacitors
  • Automatic calibre selection
  • Hazardous voltage indication
  • Removable test probes

Description

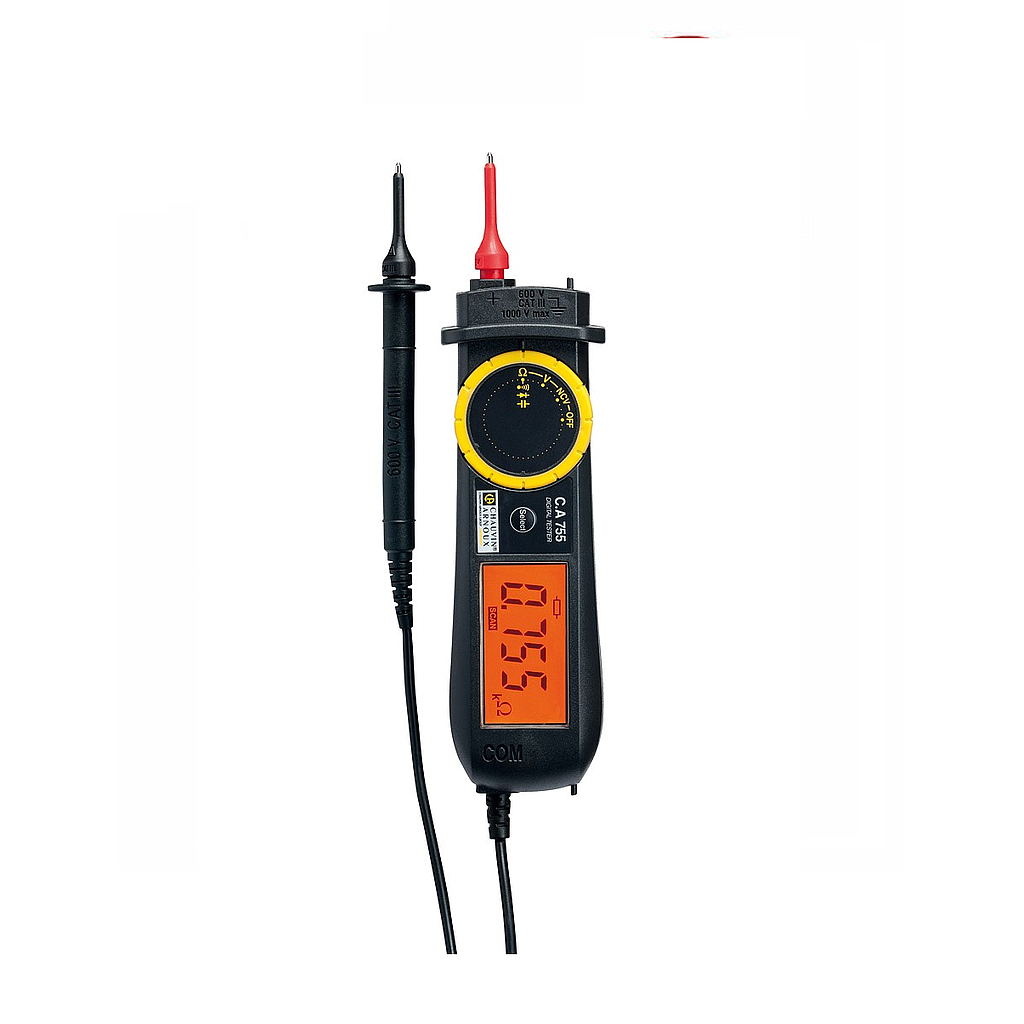

Lightweight and comfortable to handle, the C.A 755 is equipped with an IP 54 casing protected against dust and capable of withstanding falls from 2 metres. With its large 3,000-count backlit display, the C.A 755 tester is ergonomic and functional.
Electricians, heating engineers and maintenance technicians: the C.A 755 is an essential tool for your test and maintenance work. It enables you to work in total safety:
- double insulation
- protection against electric shocks up to 6 kV in voltage mode
- protection up to 1,000 V for continuity, resistance and capacitance tests
- no-contact voltage detection
- indication if a hazardous voltage is present
- automatic power-off after 10 minutes' inactivity.
The C.A 755 is rated 600V CAT III and complies with the new IEC 61010-2-033 standard on multimeters.
It offfers both the basic functions, such as voltage and continuity, and more specific multimeter functions such as diode test, resistance, continuity and capacitance. With its "SMART" function, the C.A 755 automatically recognizes DC or AC, as well as resistors, diodes and capacitors.
Simple and effective, the test probes are easy to remove and replace. They are stowed in a compartment built into the instrument.

Specifications:
•   Voltage: 3 mVDC to 1,000 VDC/ 100 mVAC to 1,000 VAC
•   Resistance: 0.3 Ω to 30 MΩ
•   Capacitance: 400 pF to 30 mF
•   Diode test
•   Audible continuity for R ≤ 30 Ω
•   600 V CAT III
