Chauvin Arnoux CA 8331 MA193(P01160512)用于三相网络的能量分析仪

  • 制造商: Chauvin Arnoux
    Model: C.A 8331 MA193
    • 报价要求 报价要求
  • Price (exclude tax) 62,991,027 VND
    Price (include tax) 69,290,130 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Number of channels: 3U / 4I
- Number of inputs: 4V / 3I
- Voltage (TRMS AC+DC): 2 V to 1,000 V
+ Voltage ratio: Up to 500 kV
- Current (TRMS AC+DC):
+ MN clamps: MN93 : 500 mA to 200 AAC ; MN93A : 0,005 AAC to 100 AAC
+ C193 clamp: 1 A to 1000 AAC
+ AmpFlex® or MA clamps: 100 mA to 10000 AAC
+ PAC93 clamp: 1 A to 1300 AAC/DC
+ E3N clamp: 50 MA to 100 AAC/DC
+ Current ratio: Up to 60 kA
- Frequency: 40 Hz to 69 Hz
- Power values: W, VA, var, VAD, PF, DPF, cos φ, tan φ
- Energy values : Wh, varh, VAh, VADh
- Harmonics : Yes
+THD : Yes, orders 0 to 50, phase
- Flicker (Pst and Plt): Yes
- Unbalance: Yes
- Recording Min/Max of a selection of parameters at max. sampling rate: 4 hrs to 2 weeks
- Peak: Yes
- Vectorial representation: Automatic
- Display: TFT colour ¼ VGA screen, 320 x 240, diagonal 148 mm
- Capture of screens and curves: 12
- Electrical safety: IEC 61010 1 000 V CAT III / 600 V CAT IV
- Protection :  IP53 / IK08
- Battery life: Up to 13 hours
- Communication interface: USB
- Power supply: 9.6 V NiMH rechargeable battery or mains power supply
- Dimensions : 240 x 180 x 55 mm/ 1.9 kg

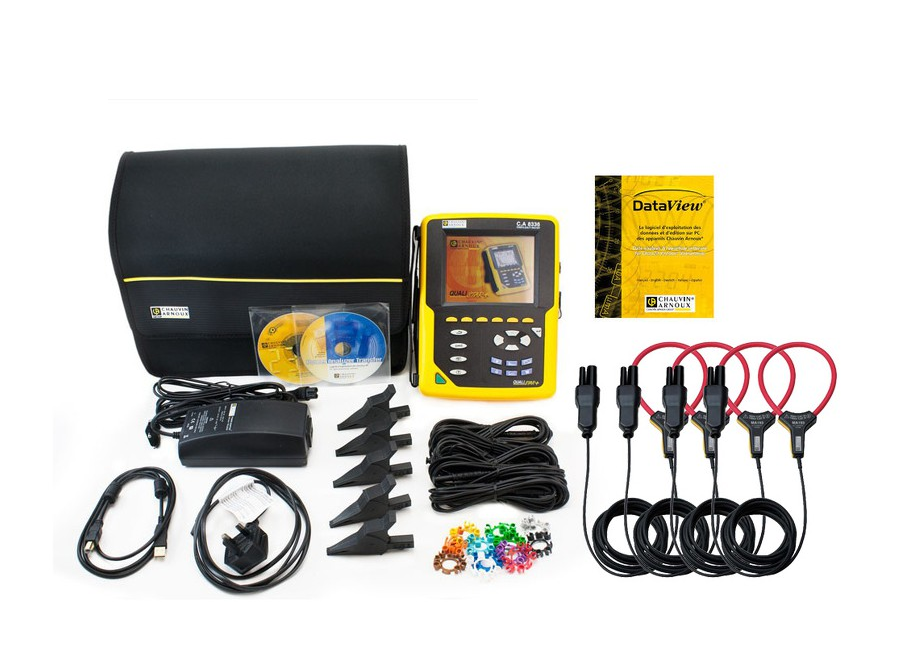

State at delivery: C.A 8331, 3 MA193 (250mm, 10kA),a bag for accessories, 4 x 4 mm banana  voltage  leads  3  m  long,  4  crocodile  clips,  12-colour  identification  kit  for  the  leads  and  inputs,  anti-scratch  screen-protection film (mounted), USB cable, mains power cable, mains power  pack,  safety  datasheet,  1  CD  containing  multi-language  operating  manual  and  1  CD  containing  PC  software  for  data  recovery (Power Analyzer Transfer).

Details

datasheet
user guider
catalog vietnamese
catalog english

Advantage

  • Direct access to the main functions (configuration, etc.)
  • Direct access to the measurements (harmonics, flicker, etc.)
  • Voltage/current inputs with colour-coded inserts
  • Large colour TFT screen for easy reading
  • Battery life of 13 hrs

Description

All the parameters simultaneously

Designed for test and maintenance departments working in industrial or administrative buildings, the Qualistar+ C.A 8331 can be used to obtain a snapshot of the main features characterizing the quality of the electrical network.

Easy to handle and particularly compact, this instrument also offers a large number of calculated values and several processing functions. The C.A 8331 is equipped with 3 voltage measurement channels and 3 current measurement channels.
When the current sensors are connected to the C.A 8331, it recognizes them automatically. It also offers the possibility of mixing different types of current sensors and configuration of the ratios allows direct reading of the measurements.

The Qualistar+ is specially designed for work in the field:

The multiple functions of the Qualistar+ C.A 8331 make it particularly versatile. It is suitable for applications up to 1,000 V in CAT III and 600 V in CAT IV.
The measurements obtained with the Qualistar models can be processed using two software tools: PAT delivered as standard and Dataview®, available as an option.

Technical specifications:

  • TRMS AC+DC voltage and current, frequency
  • Power values: W, VA, var, VAD, PF, DPF, cos φ, tan φ
  • Energy values: Wh, varh, VAh, VADh, , BTU, toe, Joule
  • Harmonics from 0 to the 50th order, phase
  • Flicker (Pst and Plt)
  • Recording of a selection of parameters at the maximum sampling rate over a period from 4 hrs to 2 weeks
  • Peak detection
  • Vectorial representation
  • IP53 / IK08
  • USB communication
  • Dimensions / weight: 240 x 180 x 55 mm / 1.9 kg
