Chauvin Arnoux CA 850（P01184101）压力计

-Measurement range: 0 to 6.89 bar
-Maximum pressure: 10.33 bar
-Resolution: 0.004 bar
-Accuracy: 0.3 % full scale
-Response time: 0.5 s
-Unit selection: psi, bar, mbar, inH2O, mm H2O, mm Hg, OZin2, kg/cm2, Kpa, Ft H2O, in Hg, cm H2O
-Power supply: 1 x 9 V battery
-Dimensions:  72 x 182 x 30 mm
-Mass:  220 g (battery included)

datasheet
user guider

Description

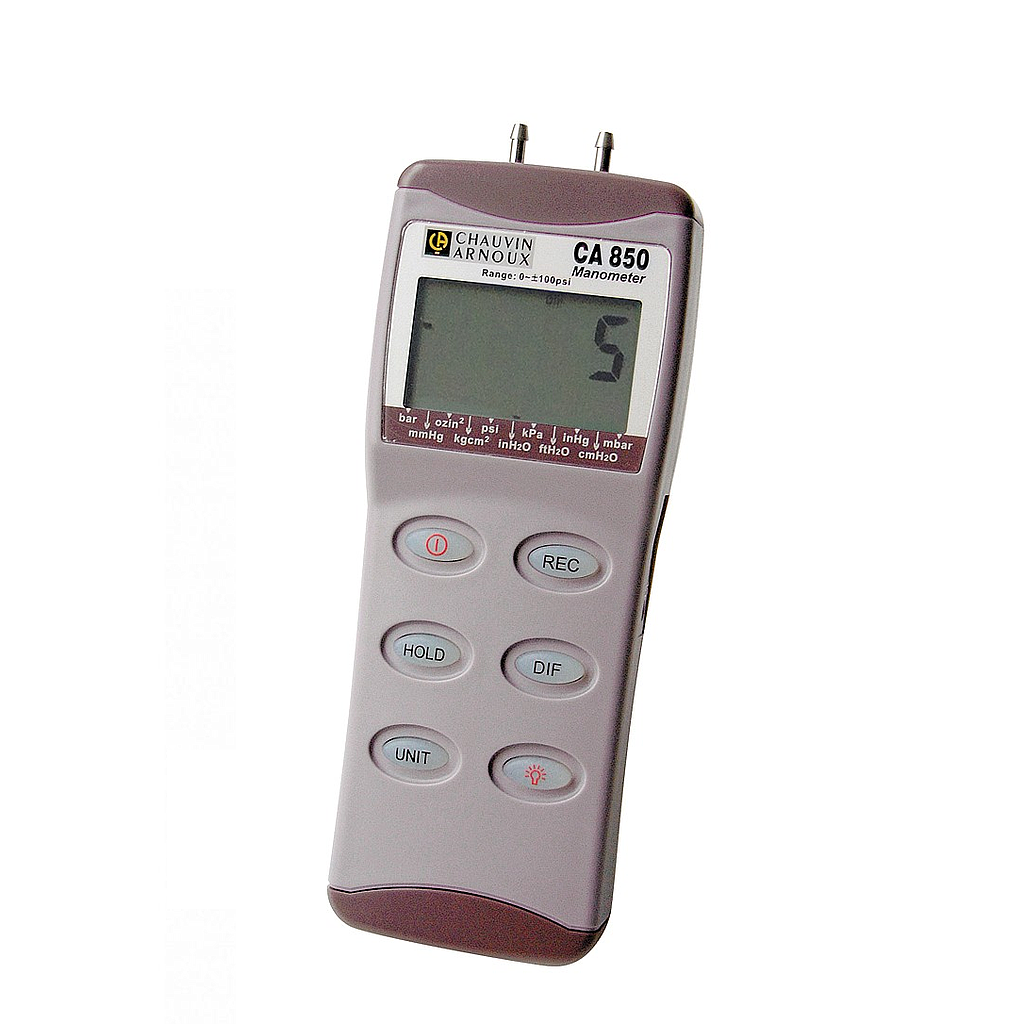

The C.A 850 Digital Manometer is ideal for measuring relative and differential pressure levels in air-conditioning installations, medical equipment and pneumatic control systems. The measurements are easy to read with its large display.

1. Measurement range: -100 to +100 psi

1. Maximum pressure: ± 150 psi

1. Resolution: 0.01 psi

1. Accuracy: ± 0.3 % full scale
2. Pressure units: bar, mmHg, ozin², kg/cm², inH20, kPa, ftH2O, inHg, cmH2O, mbar

Functions

1. Time/date-stamped monitoring of MIN and MAX values

1. Differential pressure measurements

1. Measurement hold

1. Automatic power-off

1. Backlighting

1. Dimensions: 72 x 182 x 30 mm

1. Weight: 220 g
