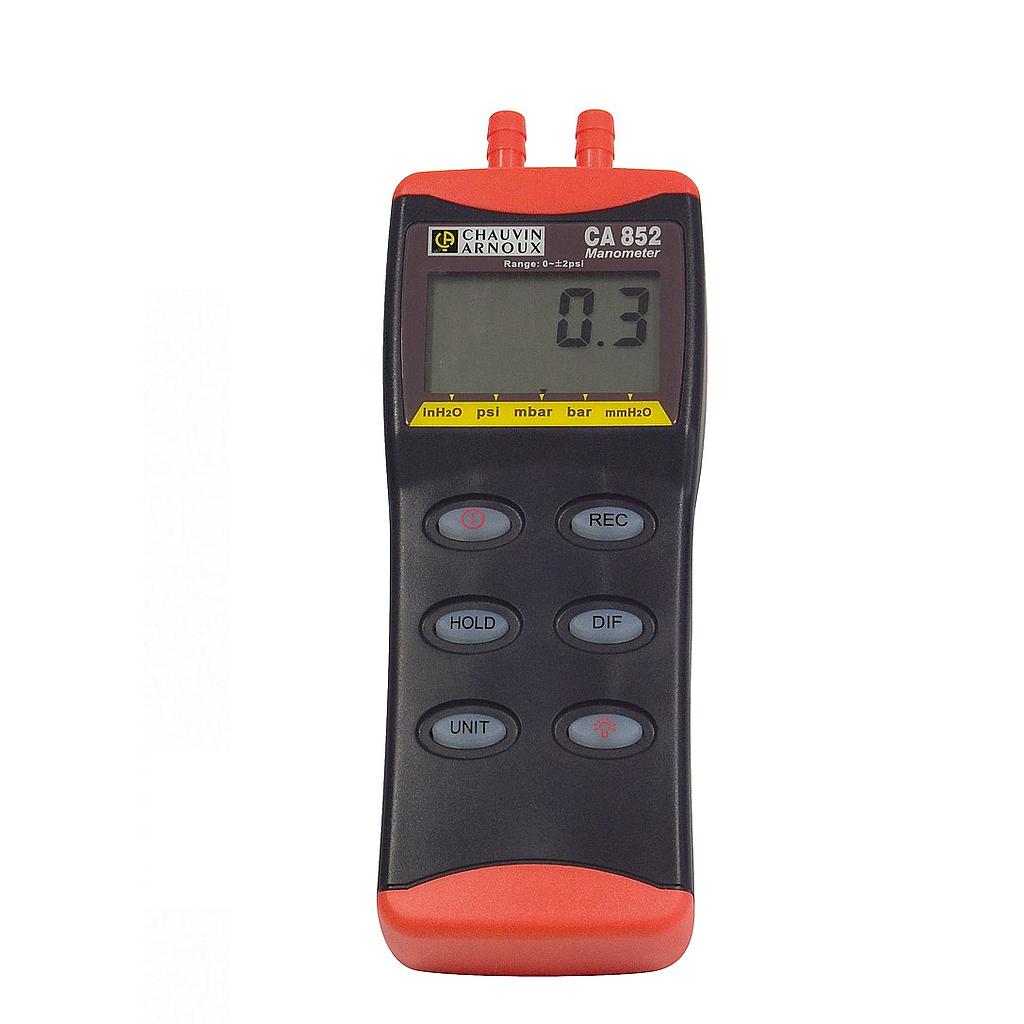

Chauvin Arnoux CA 852(P01184102)压力计

-Measurement range: 0 to 138 mbar
-Maximum pressure: 1.38 bar
-Resolution: 0.1 mbar
-Accuracy: 0.3 % full scale
-Response time: 0.5 s
-Unit selection: psi, bar, mbar, inH2O, mm H2O
-Power supply: 1 x 9 V battery
-Dimensions:  72 x 182 x 30 mm
-Mass:  220 g (battery included)

Detail

datasheet
user guider

Description

The C.A 852 Digital Manometer is ideal for measuring relative and differential pressure levels in air-conditioning installations, medical equipment and pneumatic control systems. The measurements are easy to read with its large display.

Typical applications:
measurement of filter clogging on air-conditioning installations, measurement of pressure losses in ventilation ducts, leakage tests in gas ducts, etc.

  1. Measurement range: - 2 to + 2 psi
  1. Maximum pressure: ± 20 psi
  1. Resolution: 0.004 psi
  1. Accuracy: ± 0.3 % full scale
  1. Pressure units: bar, inH20, mmH2O, mbar

Functions

  1. Time/date-stamped monitoring of MIN and MAX values
  1. Differential pressure measurements
  1. Measurement hold
  1. Automatic power-off
  1. Backlighting
  1. Dimensions: 72 x 182 x 30 mm
  1. Weight: 220 g
