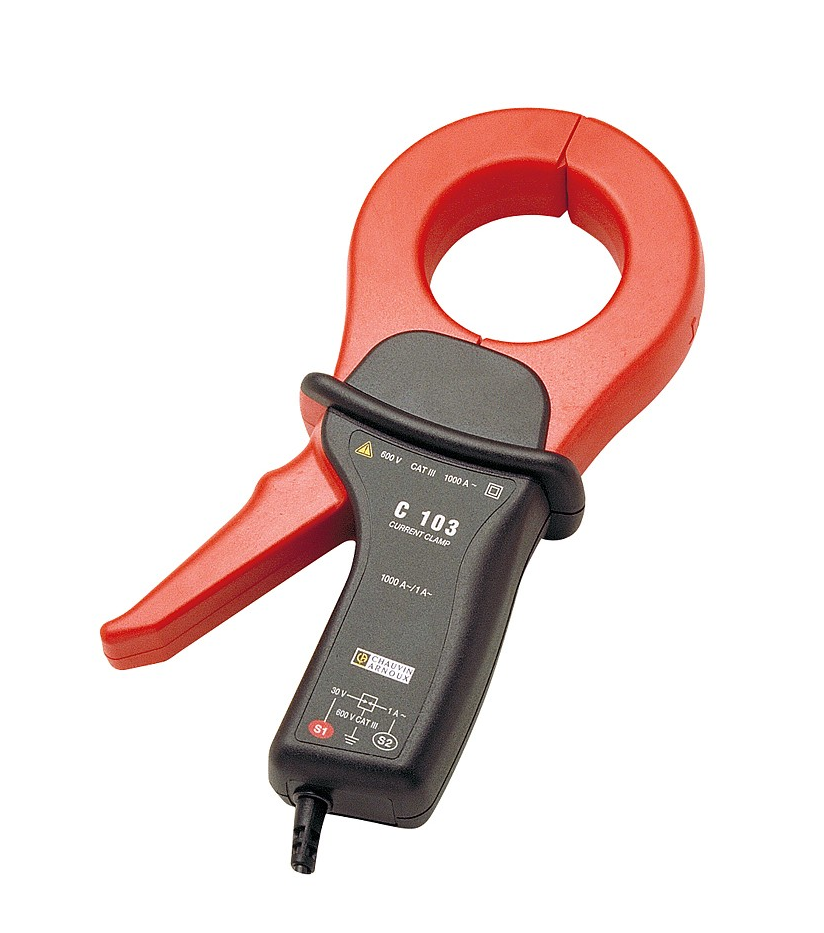

Chauvin Arnoux C103 交流电流钳 (1200A)

- Input
+ Very low current: 0.1 A - 1,200 A
+ Low current: 0.1 A - 1,200 A
+ Medium current: 0.1 A - 1,200 A
+ AC: yes
- Output / Connections
+ Current: 1 A AC
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1,000/1
+ Output protected against overvoltage: yes
+ Bandwidth (frequency in Hz): 30 Hz-10 kHz
+ Typical accuracy:  ≤ 0.5 %

Details

datasheet
user guider
catalog vietnamese
catalog english

Description

The C Series is a range of high-performance 1,000 A transformer clamps. The round jaw shape and the uniformly-distributed winding guarantee accuracy and minimum phase difference.
It is equipped with an oscillating magnetic element adjustment system and a patented system for gradual assisted jaw opening.
Its Ø 52 mm clamping capacity allows current measurements on most conductors on CAT III 600 V industrial and tertiary installations.

Main features of the C103 model:

  • Output signal: alternating current
  • Transformation ratio: 1,000/1
  • Output via lead and isolated Ø 4 mm male plugs
  • Output protected against voltage surges
