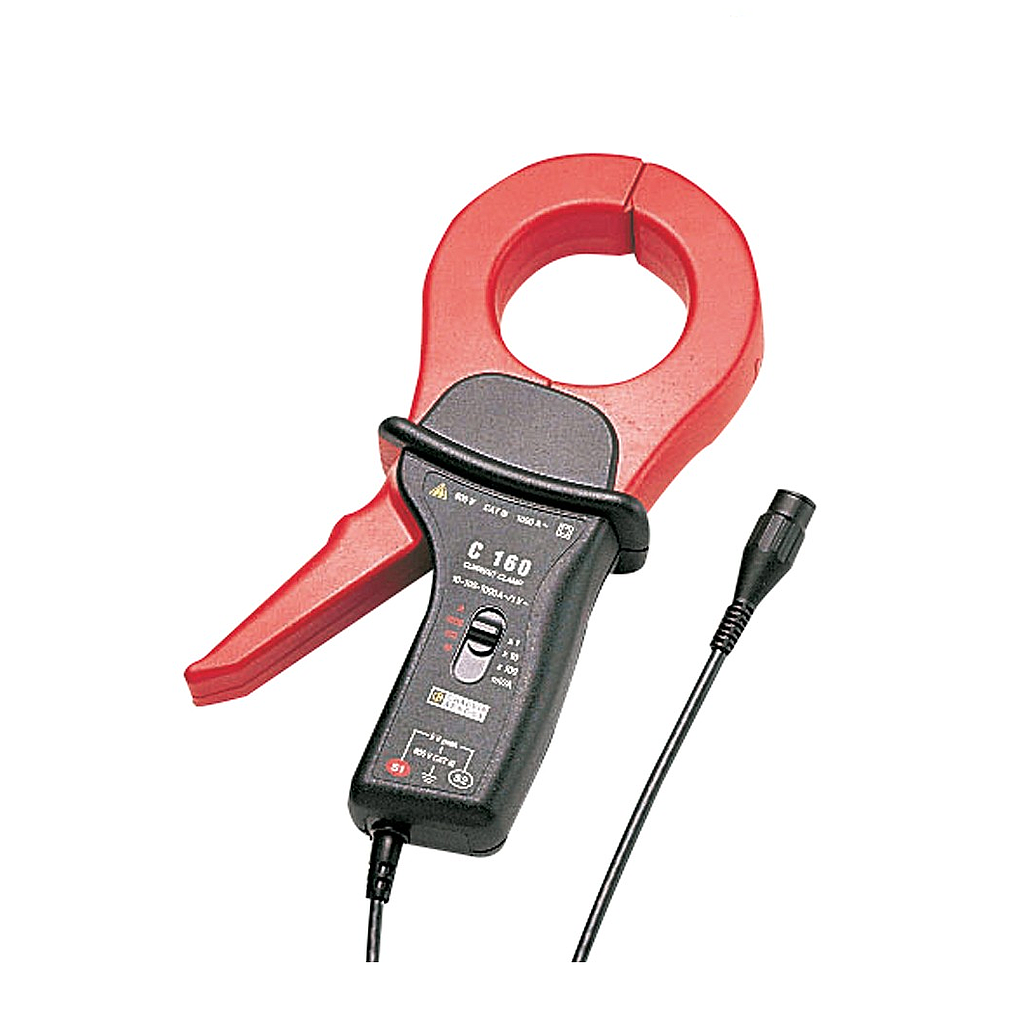

Chauvin Arnoux C160 Clamp meter (2000A)

- Input
+ Low current: 0.1 A - 30 A peak; 1 A - 300 A peak; 1 A to 2.000 A  peak
+ Medium current: 0.1 A - 30 A peak; 1 A - 300 A peak; 1 A to 2.000 A peak
+ AC: yes
- Output / Connections
+ Current:
+ Voltage: 3 V peak; 3 V peak; 2 V peak
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 10 A/1 V ; 100 A/1 V ; 1.000 A/1 V
+ Bandwidth (frequency in Hz): 10Hz - 100kHz
+ Typical accuracy: ≤ 3 %; ≤ 2 %;  ≤ 1 %

Details

datasheet
user guider
catalog vietnamese
catalog english

Description

The C Series is a range of high-performance 1,000 A transformer clamps. The round jaw shape and the uniformly-distributed winding guarantee accuracy and minimum phase difference.
It is equipped with an oscillating magnetic element adjustment system and a patented system for gradual assisted jaw opening.
Its Ø 52 mm clamping capacity allows current measurements on most conductors on CAT III 600 V industrial and tertiary installations.

When used with an oscilloscope, this isolated current sensor offers 3 sensitivities and can be used to view currents with a bandwidth of up to 100 kHz.

Main features of the C160 model:

  • Output signal: AC voltage
  • Output / input ratio: 100 mV / A AC, 10 mV / A AC, 1 mV / A AC,
  • Output via coaxial cable and isolated male BNC plug
