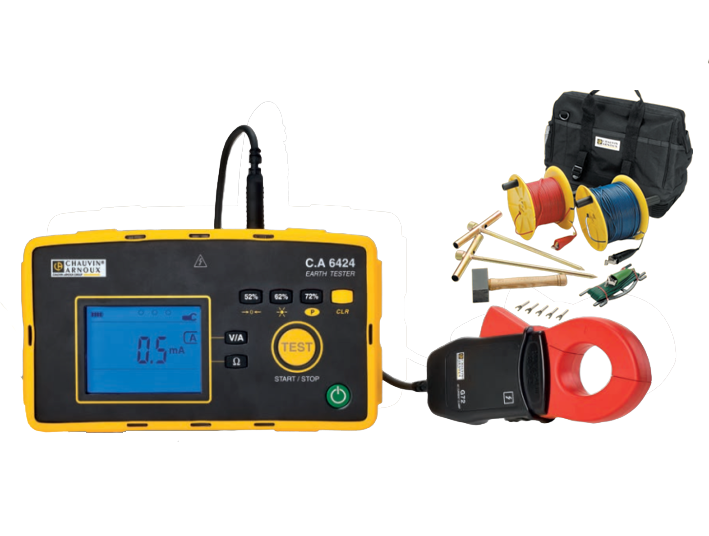

Chauvin Arnoux CA6424+G72+kitEarth3P(50m) 接地电阻测试套件

• R 2P measurement range: 50 kΩ

• RE 3P measurement: 50kΩ

• One-shot or permanent RE 3P measurement mode

• Automatic measurement frequency 128Hz/256Hz

• Hazardous voltage detection

• Noise voltage detection

• RH High alarm

• Voltage measurement up to 600V

• RH measurement

• Lead null up to 5Ω in R 2P mode

• Current measurement 0.5mA to 60A via optional G72 clamp

• Power supply: 6 x NiMH rechargeable batteries

• Rechargeable via mains, USB or vehicle cigar lighter outlet

• Battery life span: > 1500 RE 3P

• Auto Power Off: deactivatable

• Standards : IEC 61010-2-30 / 600V CAT IV, IEC 61557-1 & IEC 61557-5, IP65 / IK04

• Dimensions & weight: 223 x 126 x 70mm, 1kg

• Delivered in a carrying bag containing:

     6 x NiMH rechargeable batteries

     1 x USB power adapter, 5V & 2A + power supply cord

     1 x multilingual quick start guide 16 L

     1 x multilingual safety sheet

     1 x battery information sheet

     1 x test report with measurements

     Users’ guides to be downloaded from our web site

     1x current clamp G72

     1x kit Earth 3P (50m)

• Accessories & Replacement parts

     Carrying bag

     4 points Hands-free strap

     Hand strap

     15m basic earth kit (B/G/R)

     50m earth kit

     Current clamp G72

     LR6 NiMh batteries x4

     USB charger (cable included)

Datasheet
