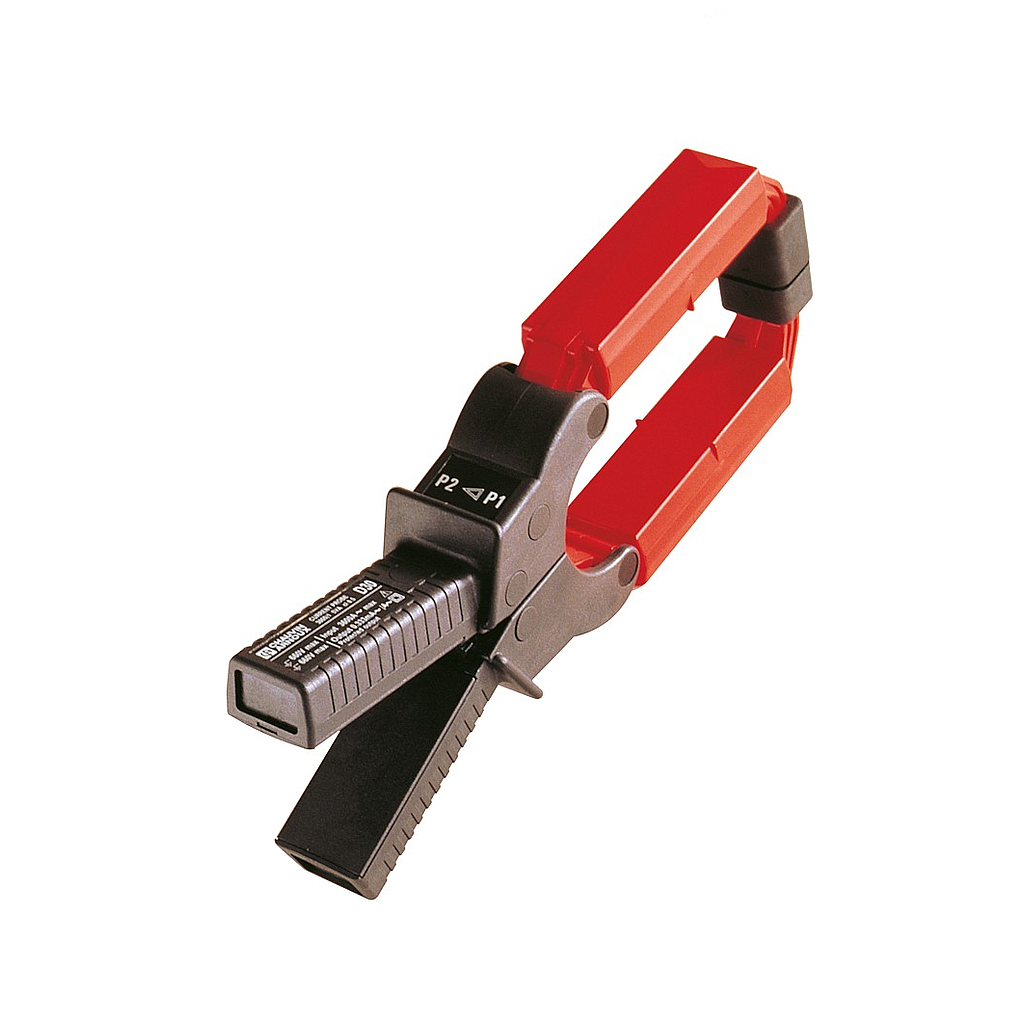

Chauvin Arnoux D38N Clamp meter (AC 9000A)

- Input
+ Low current: 1 A to 90 A peak ; 1 A to 900 A peak ; 1 A to 9,000 A peak
+ Medium current: 1 A to 90 A peak ; 1 A to 900 A peak ; 1 A to 9,000 A peak
+ High current: 1 A to 90 A peak ; 1 A to 900 A peak ; 1 A to 9,000 A peak
+ AC: yes
- Output / Connections
+ Current:
+ Voltage: 0.9 V peak
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 1 A/10 V ; 1 A/1mV ; 1 A/0.1mV
+ Bandwidth (frequency in Hz): 30Hz - 50kHz
+ Typical accuracy:  ≤ 2 %

Details

datasheet
user guider
catalog vietnamese
catalog english

Description

The D Series is a range of transformer clamps for accurate measurement of alternating currents up to 3,000 A.

The rectangular jaw shape, the quality of the magnetic circuits and the evenly-distributed winding makes it ideal for accurate measurements on large cables or busbars.

When used with an oscilloscope, this isolated current sensor has 3 sensitivities and allows you to view currents with a bandwidth of up to 50 kHz and peak currents up to 9,000 A.

Main features of the D38N model:

  • Output signal: AC voltage
  • Output / input ratio: 10 mV / A AC, 1 mV / A AC, 0.1 mV / A AC
  • Output via coaxial cable and isolated male BNC plug
