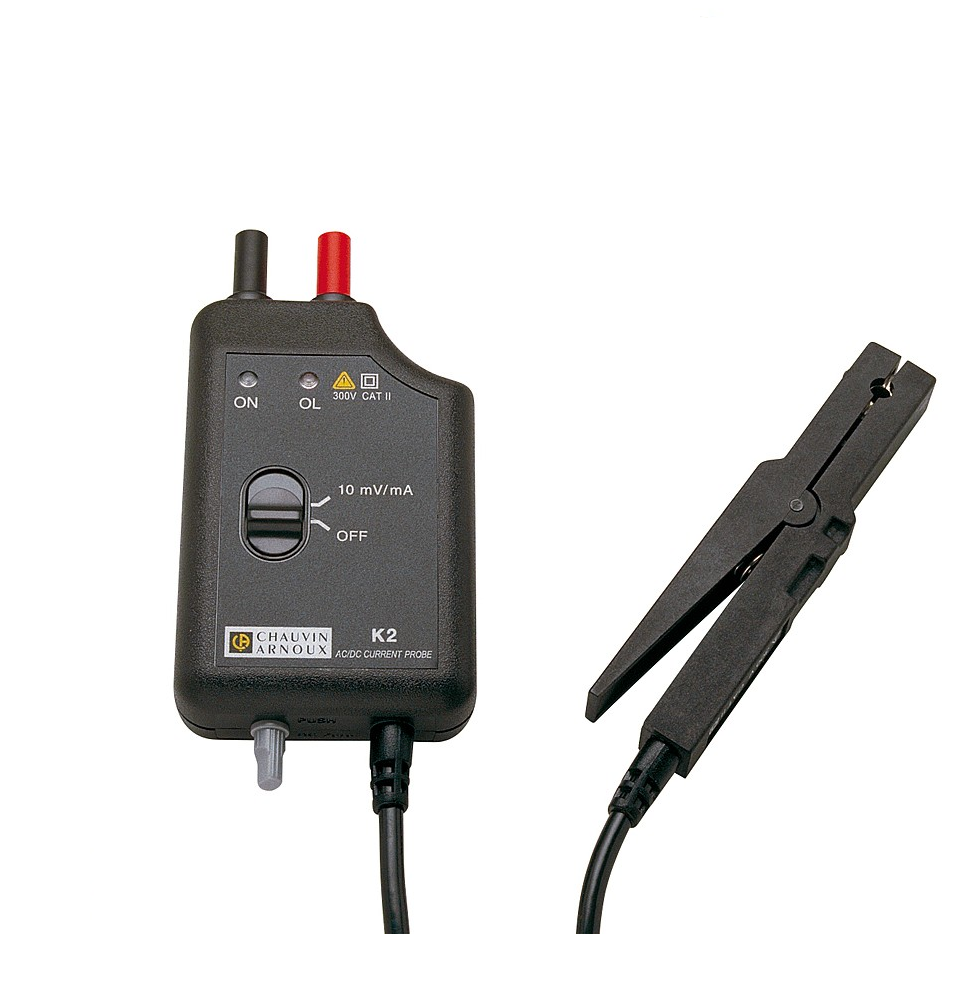

Chauvin Arnoux K2 AC/DC微型电流钳 (4.5A DC, 3A AC)
制造商: Chauvin Arnoux Model: K2 P/N: P01120074 来源: France 保障: 12 Month - 报价要求
- 联系
- Input
+ Very low current: 100 μA - 450 mA DC; 100 μA - 300 mA RMS; 100 μA - 450 A peak
+ AC: yes
+ DC : yes
- Output / Connections
+ Current:
+ Voltage: 4.5 V DC; 3 V RMS; 4.5 V peak
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1mA/10mV
+ Bandwidth (frequency in Hz): DC- 1.5 kHz
+ Typical accuracy: ≤ 1 %
datasheet
user guider
catalog vietnamese
catalog english
Description
The K Series is a range of "micro-clamps" for accurate measurements of very low direct and alternating currents.
Their small size and their shape make them ideal for exploring and measuring in places where access is difficult.
Main features of the K1 model:
- Rated current: 3 A AC / 4.5 A DC
- Output signal: DC and AC current
- Output / input ratio: 1 mV / mA
- Output via isolated Ø4mm male plugs with 19 mm spacing
