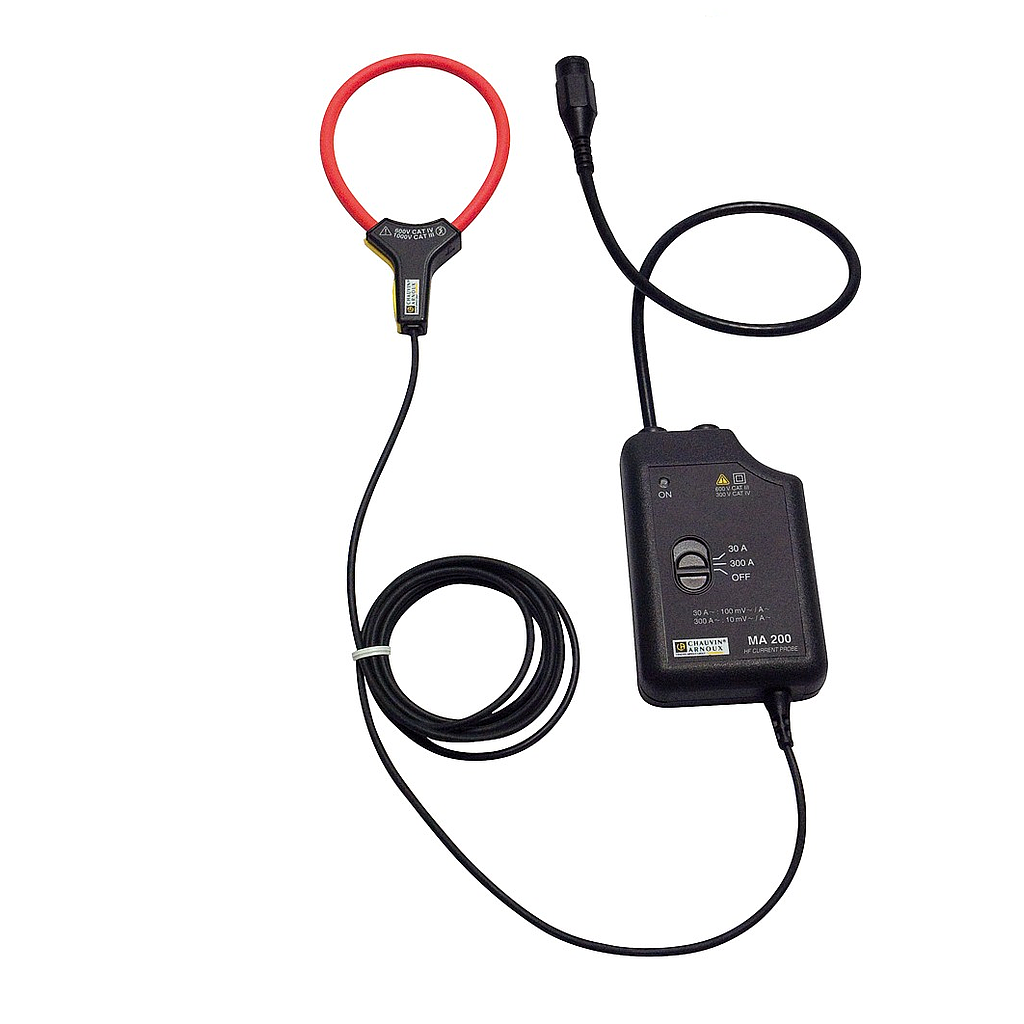

Chauvin Arnoux MA200/35 clamp meter (4.5A)

- Input
+ Low current: 5 A...4,500 A peak
+ Medium current: 5 A...4,500 A peak
+ High current: 5 A...4,500 A peak
+ AC: yes
- Output / Connections
+ Current:
+ Voltage: 4.5 V peak
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 1 mV/A
+ Bandwidth (frequency in Hz): 5 Hz... 1MHz phase shift at 1kHz ≤ 1.5
+ Typical accuracy:  ≤ 1 % + 0.3 A

datasheet
user guider
catalog vietnamese
catalog english

Description

The MA200 Series is a family of "high-frequency" flexible sensors for viewing and measuring electrical or electrotechnical currents with significant variations and  amplitude.

These "isolated current probes for oscilloscopes" offer a bandwidth of 1 MHz and can be used to analyse currents with complex forms, transients present in power electronics power supplies, welding units, etc., …

Main specifications:

• Measurement range from 500 mA AC to 3,000 A AC
• Single or bi-calibre
• Bandwidth of up to 1 MHz
• 3 clamping diameters: 45 mm, 70 mm and 100 mm
• 600 V CAT IV / 1,000 V CAT III
