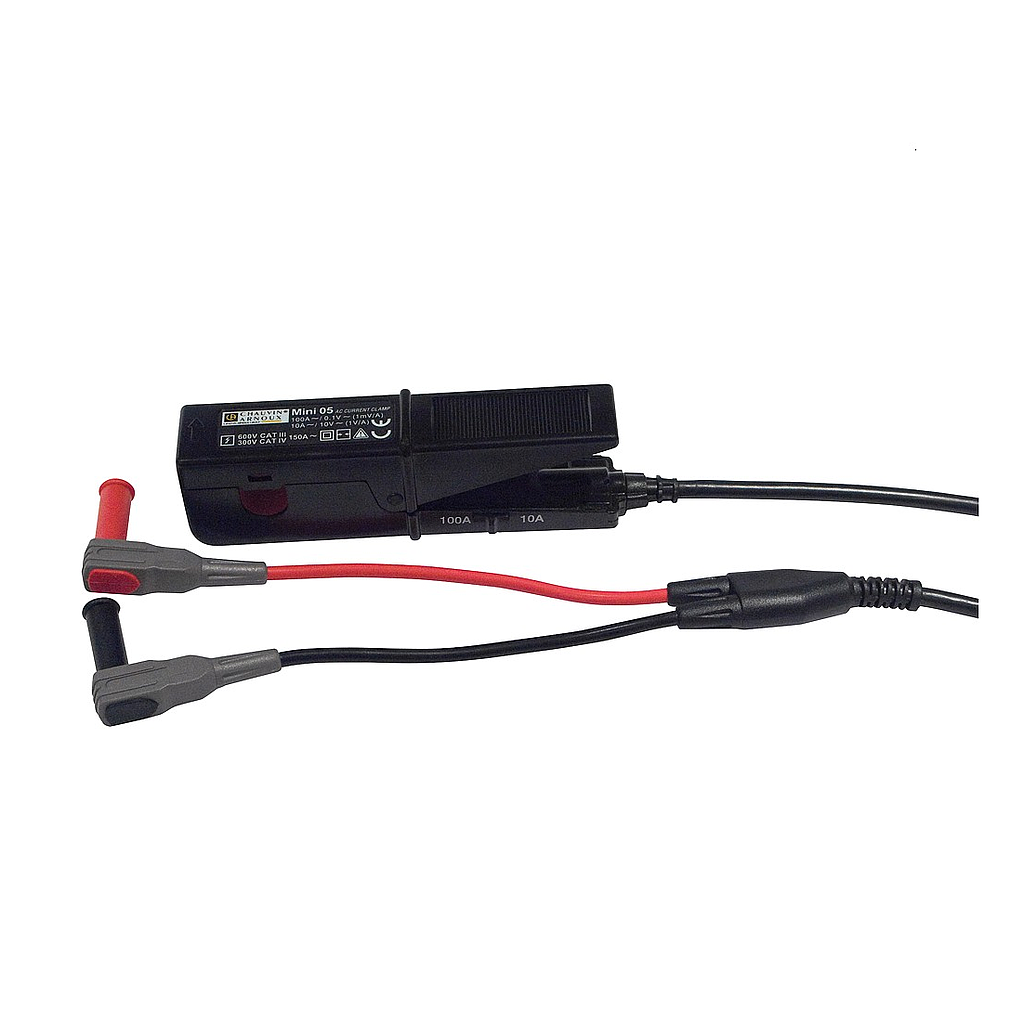

Chauvin Arnoux MINI05(P01105105Z)高灵敏度的电流钳

- Input
+ Very low current: 5 mA - 10 A; 1 - 100 A
+ Low current: 5 mA - 10 A; 1 - 100 A
+ Medium current: 5 mA - 10 A; 1 - 100 A
+ AC: yes
- Output / Connections
+ Voltage: 10 V A AC; 0.1 V AC
+ Female sockets ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1 mA/1 mV; 1 A/1 mV
+ Bandwidth (frequency in Hz): 48 Hz-500 Hz
+ Typical accuracy: ≤ 3 % ;≤ 2 %

Detail

datasheet
user guider
catalog vietnamese
catalog english

Description

The MINI 02 current clamp, whose jaws are equipped with a high-performance magnetic material and a double winding, offers good linearity and improved performance.
Small and compact, it is an ideal complement for any multimeter to measure alternating currents in low-power tertiary or industrial applications.
If there is a current flowing in the conductor clamped, the MINI 02 clamp is protected against voltage when i is disconnected from the measuring instrument.

Main features of the MINI 02 model:

  • Rated current: 100 A AC
  • Output signal: alternating current
  • Transformation ratio: 1,000/1
  • Output via lead and isolated Ø 4 mm male plugs
  • Output protected against voltage surges
