Chauvin Arnoux MINI09（P01105109Z）AC电流钳

- Input
+ Low current: 1 - 150 A
+ Medium current: 1 - 150 A
+ AC: yes
- Output / Connections
+ Voltage: 15 V DC
+ Female sockets ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1 A/100 mV
+ Bandwidth (frequency in Hz): 48 Hz-500 Hz
+ Typical accuracy: ≤ 4 %

datasheet
user guider
catalog vietnamese
catalog english

Description

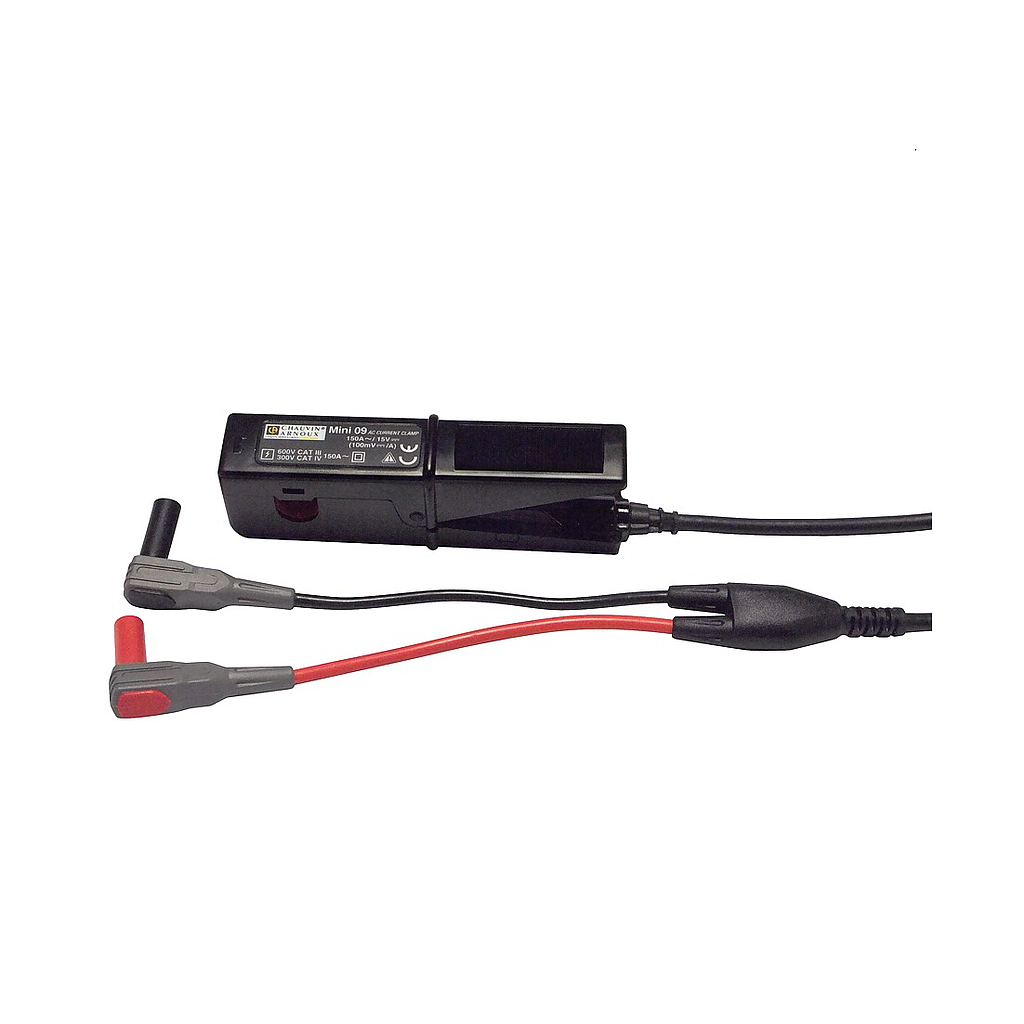

The small, compact MINI 09 current clamp is an ideal complement for any multimeter to measure alternating currents in low-power tertiary or industrial applications.

Its DC voltage output enables you to overcome the insufficient AC sensitivity of certain measuring instruments.

Main features of the MINI 09 model:

• Rated current: 150 A AC
• Output signal: DC voltage
• Output / input ratio: 100 mV DC / A AC
• Output via lead and isolated Ø 4 mm male plugs
