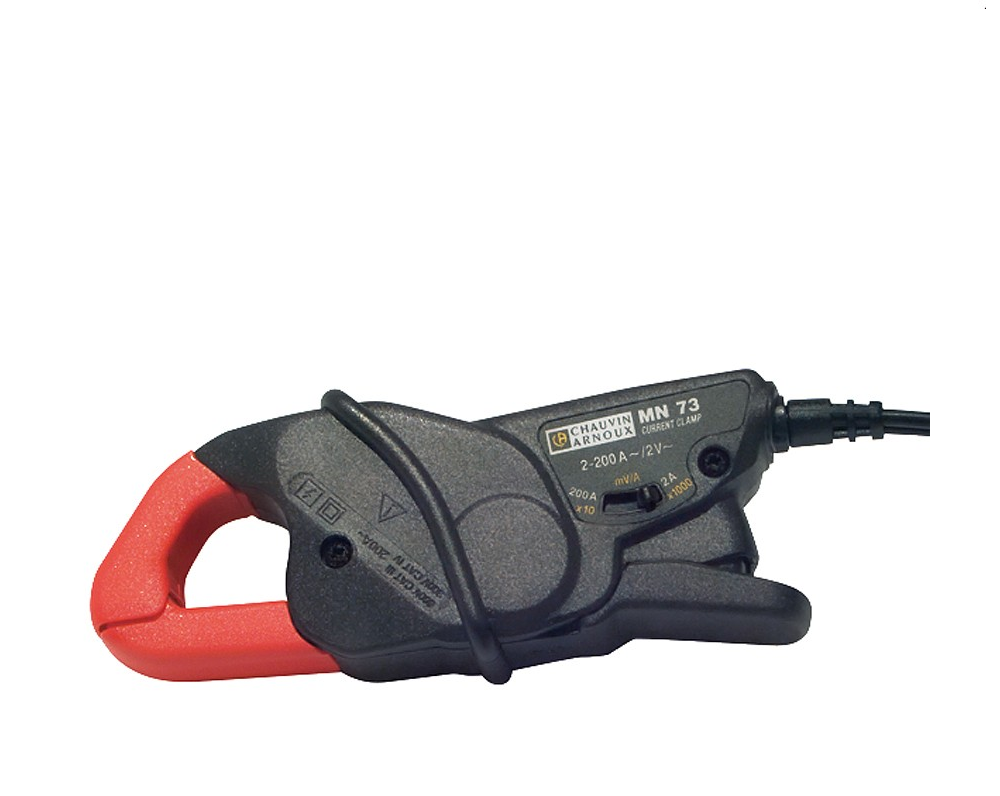

Chauvin Arnoux MN73（P01120421）漏电流测量电流钳

- Input
+ Very low current: 10 mA - 2.4 A; 100 mA - 240 A
+ Low current: 10 mA - 2.4 A; 100 mA - 240 A
+ Medium current: 10 mA - 2.4 A; 100 mA - 240 A
- Output / Connections
+ Current:
+ Voltage: 2 V AC; 2 V AC
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1mA/1mV; 1A/10mV
+ Bandwidth (frequency in Hz): 48 Hz-10 Hz
+ Typical accuracy: ≤1%; ≤ 2%

datasheet
user guider
catalog vietnamese
catalog english

Description

The MN Series is a range of versatile transformer clamps for measuring alternating currents up to 240 A with a multimeter or a power analyser.

Compact and ergonomic, the jaw is suitable for measurements in places where access is difficult and can also be used to clamp any cable up to 20 mm in diameter in installations up to CAT III 600 V or CAT IV 300 V.

When used with a multimeter equipped with an mV AC range and good measurement resolution, this 2-calibre clamp allows measurement of leakage or differential currents from 10 mA.

Main features of the MN73 model:

• Output signal: AC voltage
• Output / input ratio: 1,000 mV / A AC, 10 mV / A AC
• Output via lead and isolated Ø 4 mm male plugs
