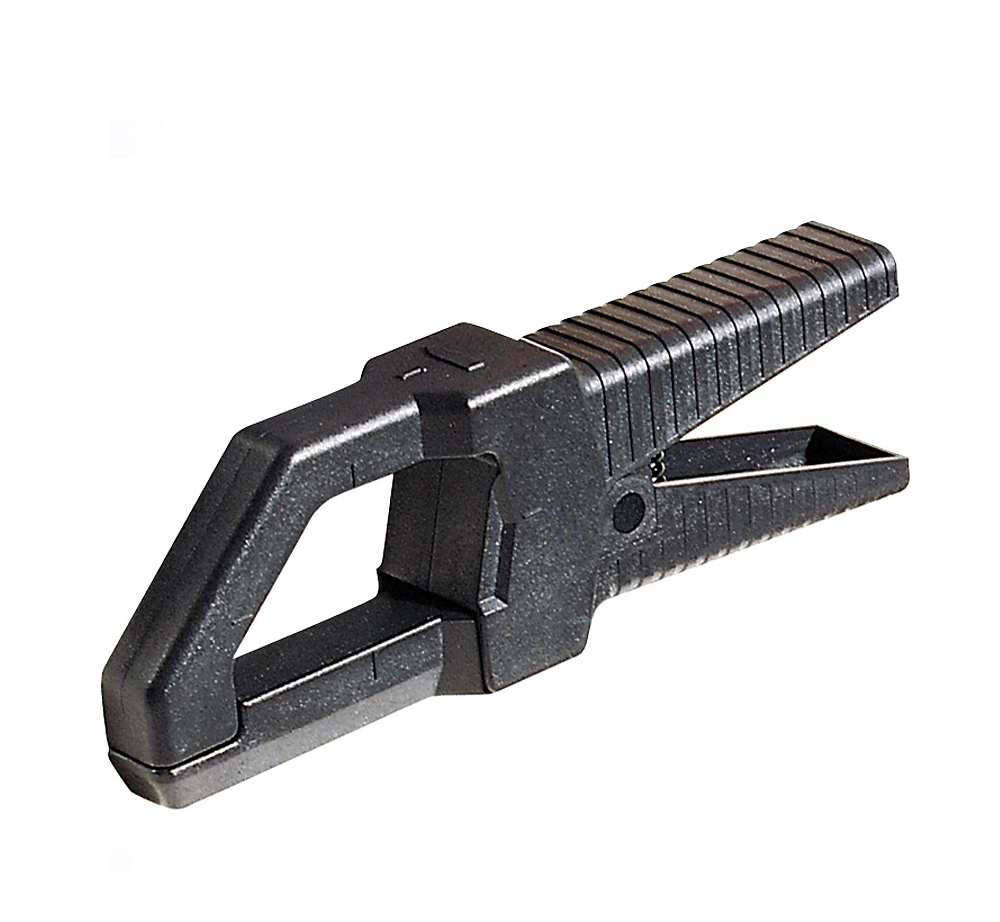

Chauvin Arnoux Y1N 量程交流电流测量 (600A)

- Input
+ Low current: 4 A - 600 A
+ Medium current: 4 A - 600 A
+ AC: yes
- Output / Connections
+ Current: 0.5 A AC
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1,000/1
+ Output protected against overvoltage: yes
+ Bandwidth (frequency in Hz): 48 Hz-1 Hz
+ Typical accuracy:  ≤ 3 %

Detail

datasheet
catalog vietnamese
catalog english

Description

The Y Series is a range of transformer clamps whose jaw shape and clamping diameter allow the measurement of alternating currents up to 600 A on cables 30mm in diameter or busbars up to 62x5 mm in installations up to CAT III 600 V or CAT IV 300 V.

Main features of the Y1N model:

  • Rated current: 600 A AC
  • Output signal: alternating current
  • Transformation ratio: 1,000/1
  • Output via lead and isolated Ø 4 mm male plugs
  • Output protected against voltage surges
