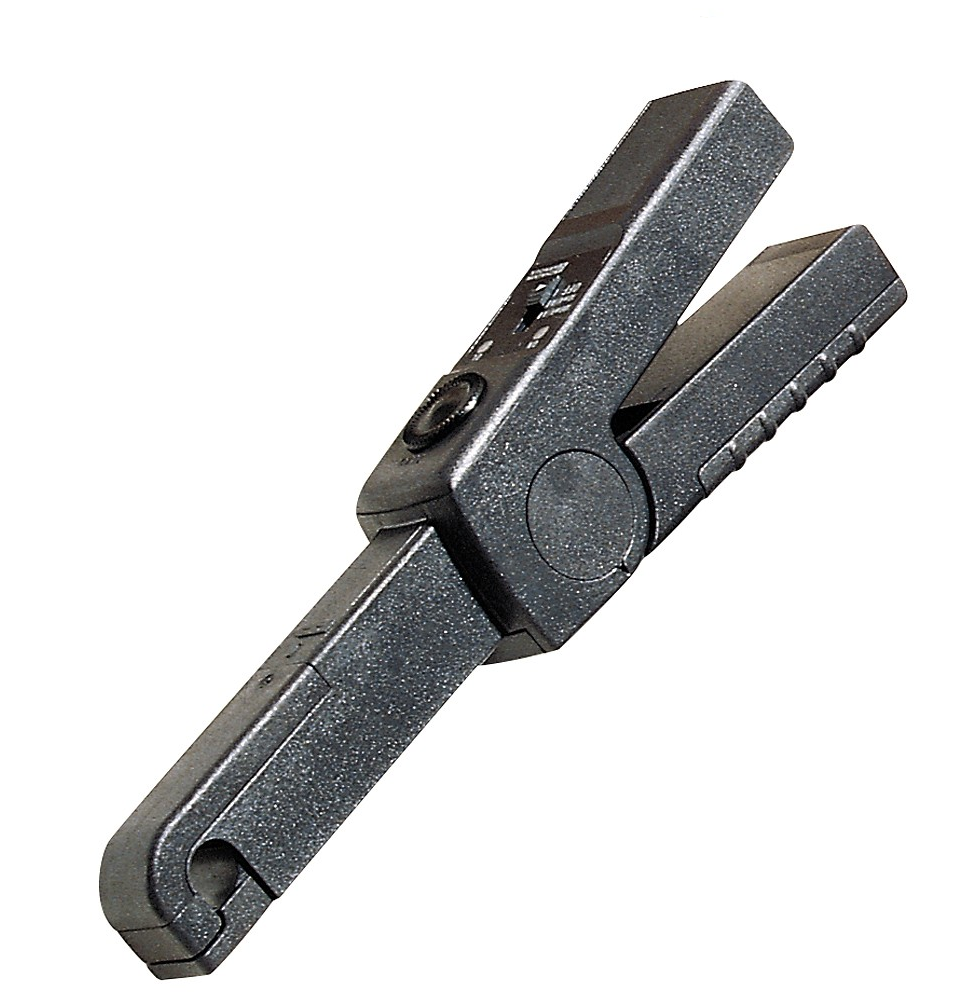

Chauvin Arnoux E1N AC/DC钳形电流表/ 便携式/ 测量 (150A)

- Input
+ Medium current: 0.05 - 2 A DC; 0.05 - 1.5 A AC; 0.5 - 150 A AC/DC
+ High current: 0.05 - 2 A DC; 0.05 - 1.5 A AC; 0.5 - 150 A AC/DC
+ AC: yes
+ DC : yes
- Output / Connections
+ Voltage: 2 V DC; 1.5 V AC; 150 mV AC/DC
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1A/1V; 1A/1mV
+ Bandwidth (frequency in Hz): DC- 2 kHz; DC- 8 kHz
+ Typical accuracy:   ≤ 2%; ≤ 1.5 %

Detail

datasheet
user guider
catalog vietnamese
catalog english

Description

The EN Series is a range of Hall-effect clamps for measuring direct and alternating currents.

The long, narrow shape of these clamps makes them ideal for measuring in cable strands, in confined spaces such as switchboards and in the electrical circuits of automotive vehicles.
The output signal is directly proportional in form and amplitude to the DC and AC components of the current measured.

Main features of the E1N model:

  • Rated current: 150 A AC/DC
  • Output signal: DC and AC voltage
  • Output / input ratio: 1 mV / mA, 1 mV / A
  • Output via lead and isolated Ø 4 mm male plugs
