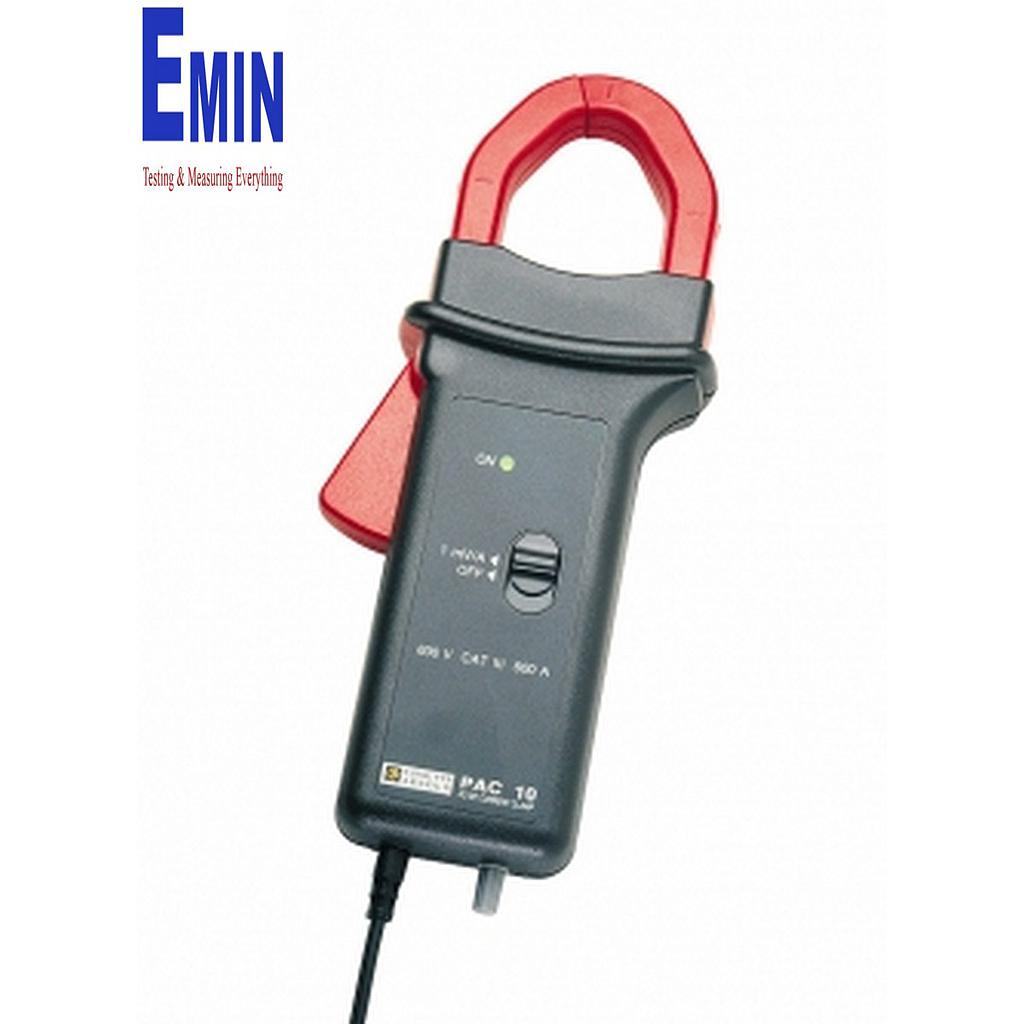

Chauvin Arnoux PAC10 电流钳 (600A)
制造商: Chauvin Arnoux Model: PAC10 P/N: P01120070 来源: France 保障: 12 Month - 报价要求
- 联系
Manuafacturer: Chauvin Arnoux
Model : PAC 10
Item: P01120070
Warranty : 12 month
- Input
+ Current: 0.5 - 400 A AC; 0.5 - 600 A DC
+ AC: yes
+ DC : yes
- Output / Connections
+ Voltage: 600 mV; AC/DC
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1A/1mV
+ Bandwidth (frequency in Hz): DC- 5 kHz
+ Typical accuracy: ≤ 2%
datasheet
user guider
catalog vietnamese
catalog english
Description
The PAC Series is a range of Hall-effect current clamps for measuring direct and alternating currents.
2 forms are proposed to clamp cables up to 30 mm or 42 mm in diameter, as well as small busbars.
The range comprises PAC1x models and PAC2x models for higher currents.
Main features of the PAC10 model:
- Rated current: 400 A AC/600 A DC
- Output signal: DC and AC voltage
- Output / input ratio: 1 mV / A
- Output via lead and isolated Ø 4 mm male plugs
