+ Low current: 1 A - 1.200 A peak
+ Medium current: 1 A - 1.200 A peak
+ AC: yes
- Output / Connections
+ Voltage: 1.2 V peak
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 1 mA / 1 mV
+ Bandwidth (frequency in Hz): 5Hz - 10kHz
+ Typical accuracy: ≤ 2 %
The Y Series is a range of transformer clamps whose jaw shape and clamping diameter allow the measurement of alternating currents up to 600 A on cables 30mm in diameter or busbars up to 62x5 mm in installations up to CAT III 600 V or CAT IV 300 V.
When used with an oscilloscope, this isolated current sensor has 2 sensitivities and allows you to view currents with a bandwidth of up to 10 kHz and peak currents up to 1,200 A.

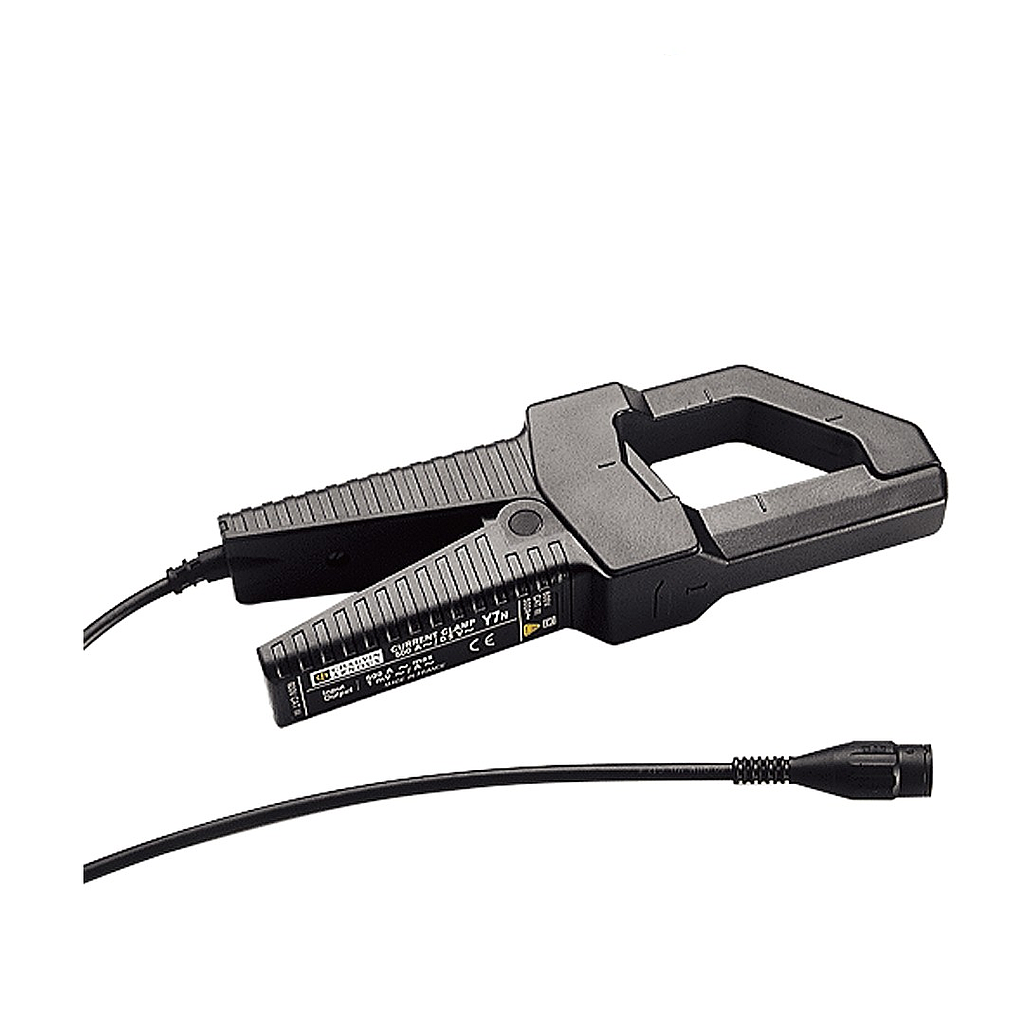

Main features of the Y7N model:
- Output signal: AC voltage
- Output / input ratio: 1 mV / A AC
- Output via coaxial cable and isolated BNC male plug
