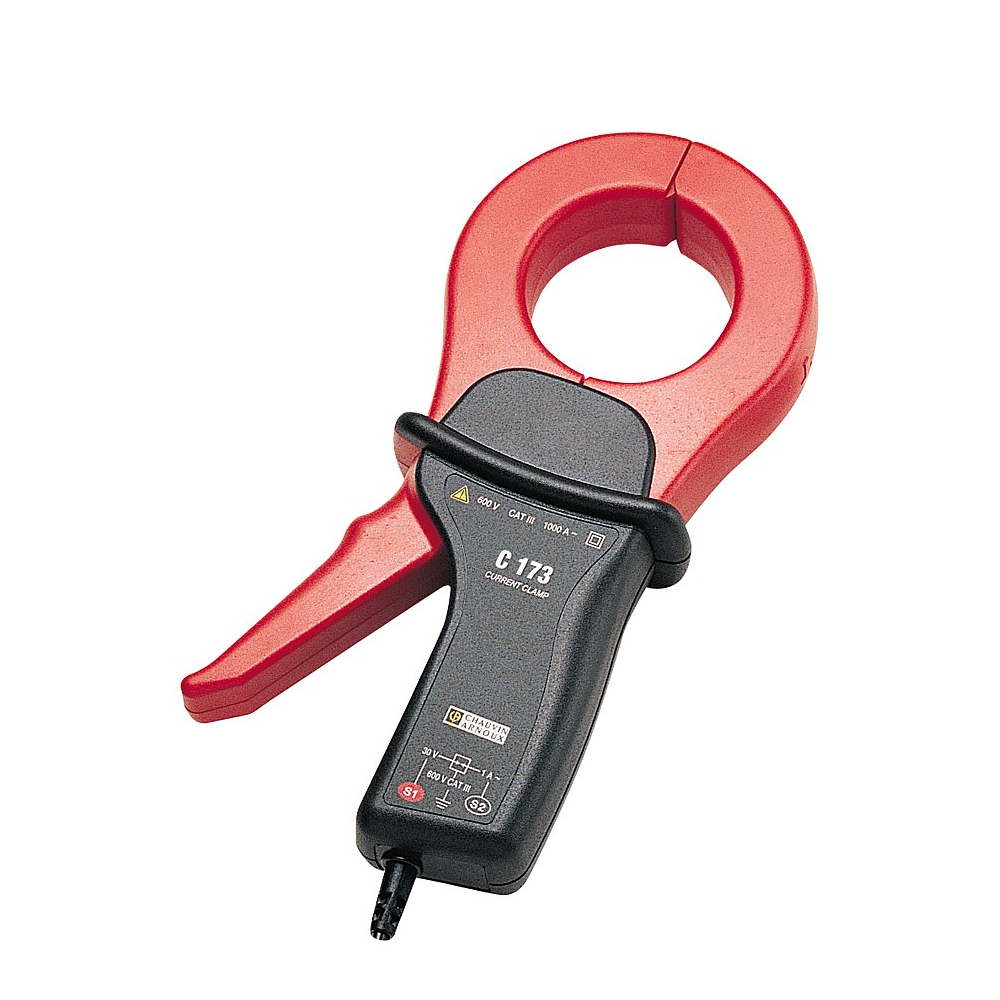

Chauvin Arnoux C173 交流电流钳 (1200A)
制造商: Chauvin Arnoux Model: C173 P/N: P01120309 来源: France 保障: 12 Month - 报价要求
- 报价要求
- 联系
- Input
+ Very low current: 1 - 300 A; 1 - 600 A; 1 - 1,200 A
+ Low current: 1 - 300 A; 1 - 600 A; 1 - 1,200 A
+ Medium current: 1 - 300 A; 1 - 600 A; 1 - 1,200 A
+ AC: yes
- Output / Connections
+ Voltage: 1 V AC
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1A/1V; 10A/1V; 100A/1V; 1,000A/1V
+ Bandwidth (frequency in Hz): 10 Hz-3 kHz
+ Typical accuracy: ≤ 0.7%; ≤ 0.5 %; ≤ 0.3%; ≤ 0.2%
datasheet
user guider
catalog vietnamese
catalog english
Description
The C Series is a range of high-performance 1,000 A transformer clamps. The round jaw shape and the uniformly-distributed winding guarantee accuracy and minimum phase difference.
It is equipped with an oscillating magnetic element adjustment system and a patented system for gradual assisted jaw opening.
Its Ø 52 mm clamping capacity allows current measurements on most conductors on CAT III 600 V industrial and tertiary installations.
When used with a multimeter with an mV AC range and good measurement resolution, this 4-calibre clamp allows measurement of leakage or differential currents starting at 1 mA.
Main features of the C173 model:
- Output signal: AC voltage
- Output / input ratio: 1 V / A AC, 100 mV / A AC, 10 mV / A AC, 1 mV / A AC,
- Output via lead and isolated Ø 4 mm male plugs
