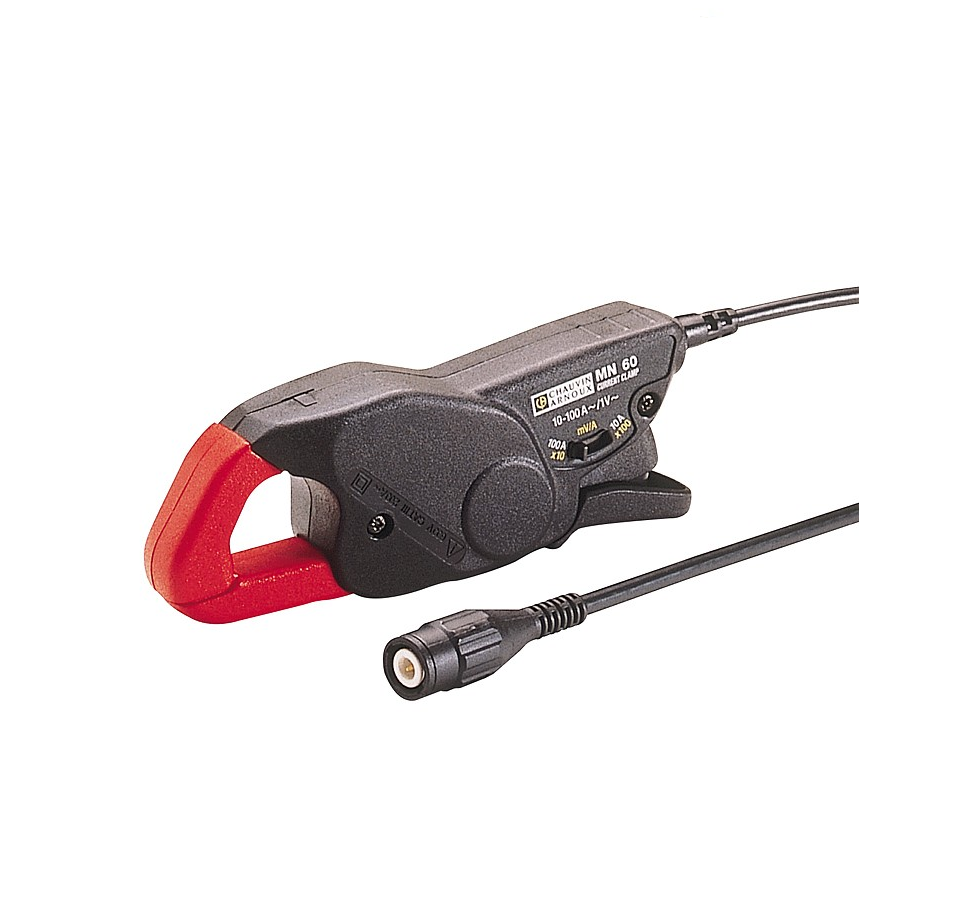

Chauvin Arnoux MN60 Clamp meter (600A)

- Input
+ Low current: 0.1 A - 60 A peak; 0.5 A - 600 A peak
+ Medium current: 0.1 A - 60 A peak; 0.5 A - 600 A peak
+ AC: yes
- Output / Connections
+ Voltage: 6V peak
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 1 A / 100 mV; 1 A / 10 mV
+ Bandwidth (frequency in Hz): 40Hz - 40kHz
+ Typical accuracy:   ≤ 2 %; ≤ 1.5 %

Details

datasheet
user guider
catalog vietnamese
catalog english

Description

The MN Series is a range of versatile transformer clamps for measuring alternating currents up to 240 A with a multimeter or a power analyser.

Compact and ergonomic, the jaw is suitable for measurements in places where access is difficult and can also be used to clamp any cable up to 20 mm in diameter in installations up to CAT III 600 V or CAT IV 300 V.
When used with an oscilloscope, this isolated current sensor offers 2 sensitivities and allows you to view currents with a bandwidth of up to 10 kHz and peak currents up to 600 A.

Main features of the MN60 model:

  • Output signal: AC voltage
  • Output / input ratio: 100 mV / A AC, 10 mV / A AC
  • Output via coaxial cable and isolated BNC male plug
