Chauvin Arnoux MN14 交流钳形电流表/ 便携式/ 测量 (240A)
制造商: Chauvin Arnoux Model: MN14 P/N: P01120416 来源: France 保障: 12 Month - 联系
- Input
+ Low current: 0.5 - 240 A
+ Medium current: 0.5 - 240 A
- Output / Connections
+ Voltage: 0.2 V AC
+ Female sockets ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1A/1mV
+ Bandwidth (frequency in Hz): 48 Hz-10 Hz
+ Typical accuracy: ≤1%
datasheet
user guider
catalog vietnamese
catalog english
Description

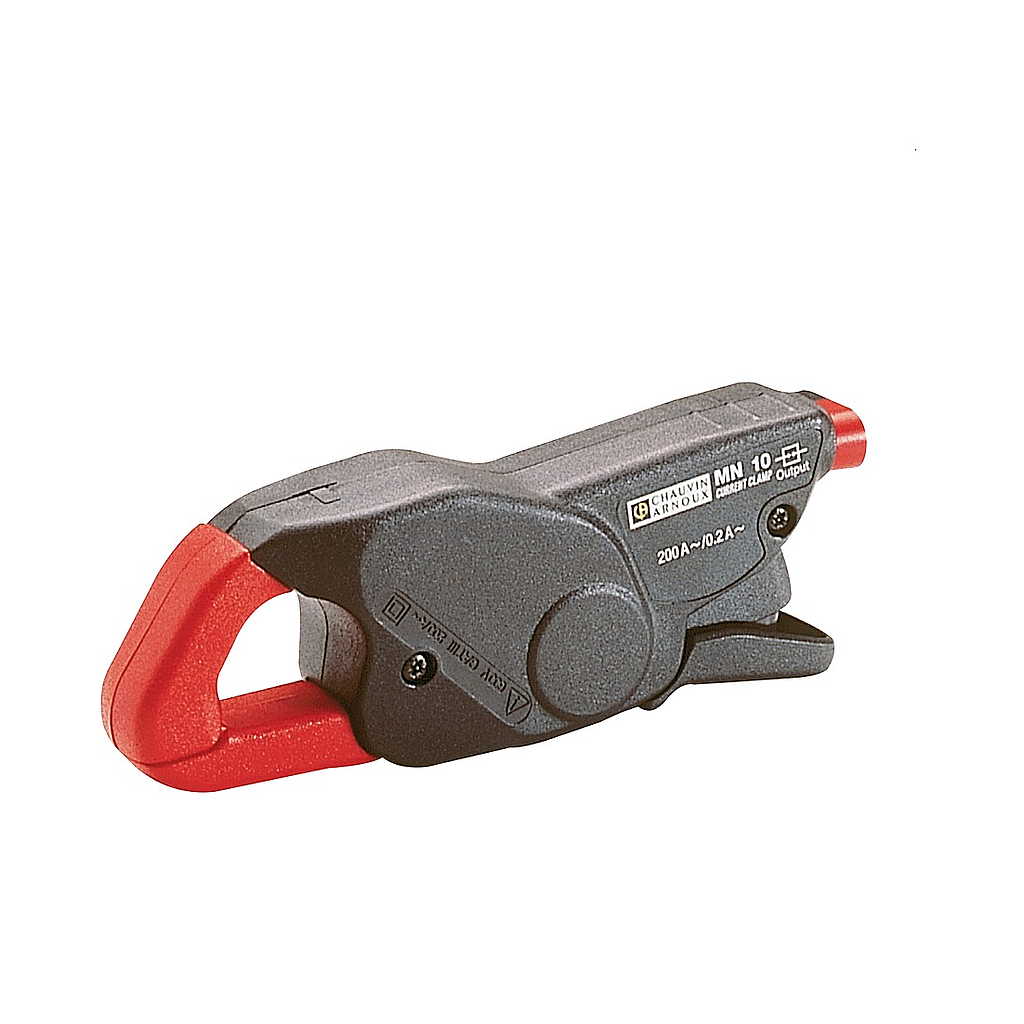

The MN Series is a range of versatile transformer clamps for measuring alternating currents up to 240 A with a multimeter or a power analyser.
Compact and ergonomic, the jaw is suitable for measurements in places where access is difficult and can also be used to clamp any cable up to 20 mm in diameter in installations up to CAT III 600 V or CAT IV 300 V.
Main features of the MN14 model:
- Rated current: 200 A AC
- Output signal: AC voltage
- Output / input ratio: 1 mV / A AC
- Output via isolated Ø 4 mm female sockets
