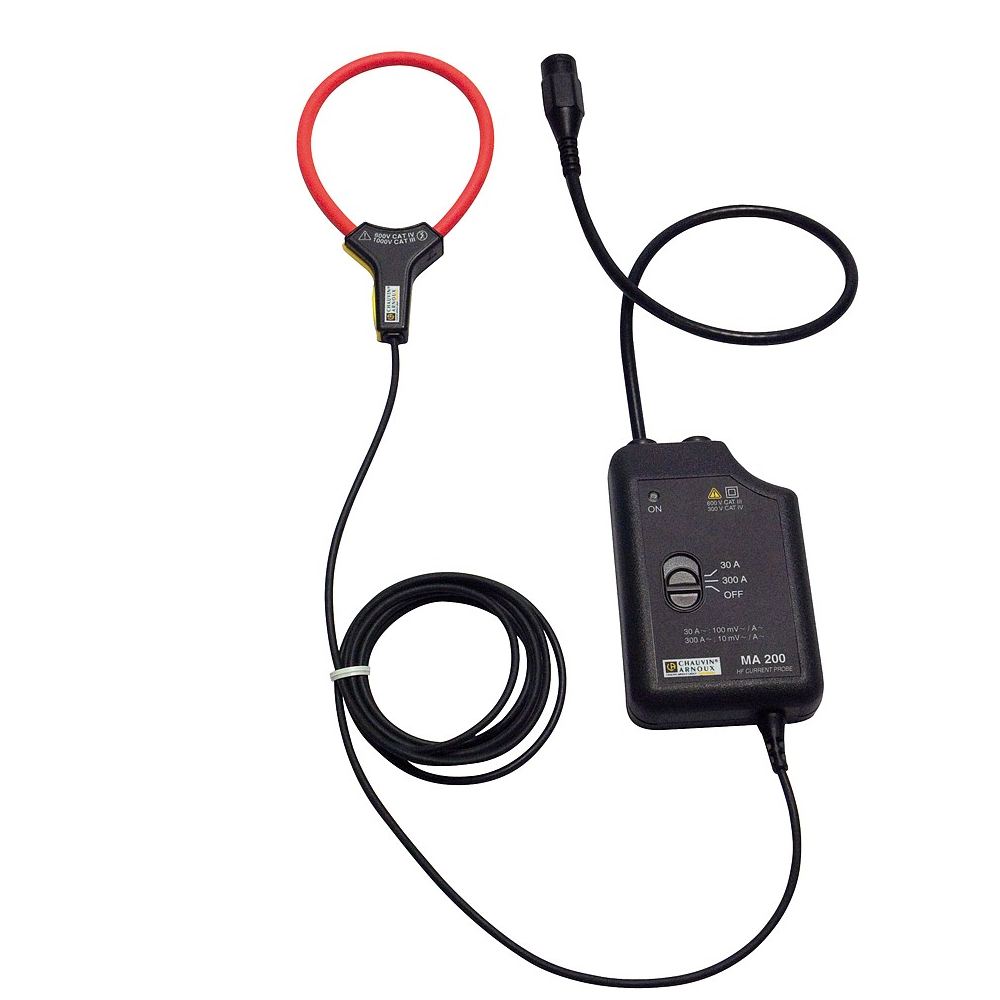

Chauvin Arnoux MA200-350 柔性电流钳
制造商: Chauvin Arnoux Model: MA200-350 P/N: P01120572 来源: France - 联系
- Input
+ Very low current:
+ Low current: 5 A...4,500 Apeak
+ Medium current: 5 A...4,500 Apeak
+ High current: 5 A...4,500 Apeak
+ AC: yes
- Output / Connections
+ Voltage: 4,5 Vpeak
+ BNC connector (coaxial): yes
- Specific features
+ Transformation ratio (input/output): 1 mV/A
+ Power measurement (low phase shift): yes
+ Bandwidth (frequency in Hz): 5 Hz...1MHz
+ Typical accuracy: ≤ 1 % + 0,3 A
datasheet
user guider
catalog vietnamese
catalog english
Description
The MA200 Series is a family of "high-frequency" flexible sensors for viewing and measuring electrical or electrotechnical currents with significant variations and amplitude.
These "isolated current probes for oscilloscopes" offer a bandwidth of 1 MHz and can be used to analyse currents with complex forms, transients present in power electronics power supplies, welding units, etc., …
Main specifications:
- Measurement range from 500 mA AC to 3,000 A AC
- Single or bi-calibre
- Bandwidth of up to 1 MHz
- 3 clamping diameters: 45 mm, 70 mm and 100 mm
- 600 V CAT IV / 1,000 V CAT III
