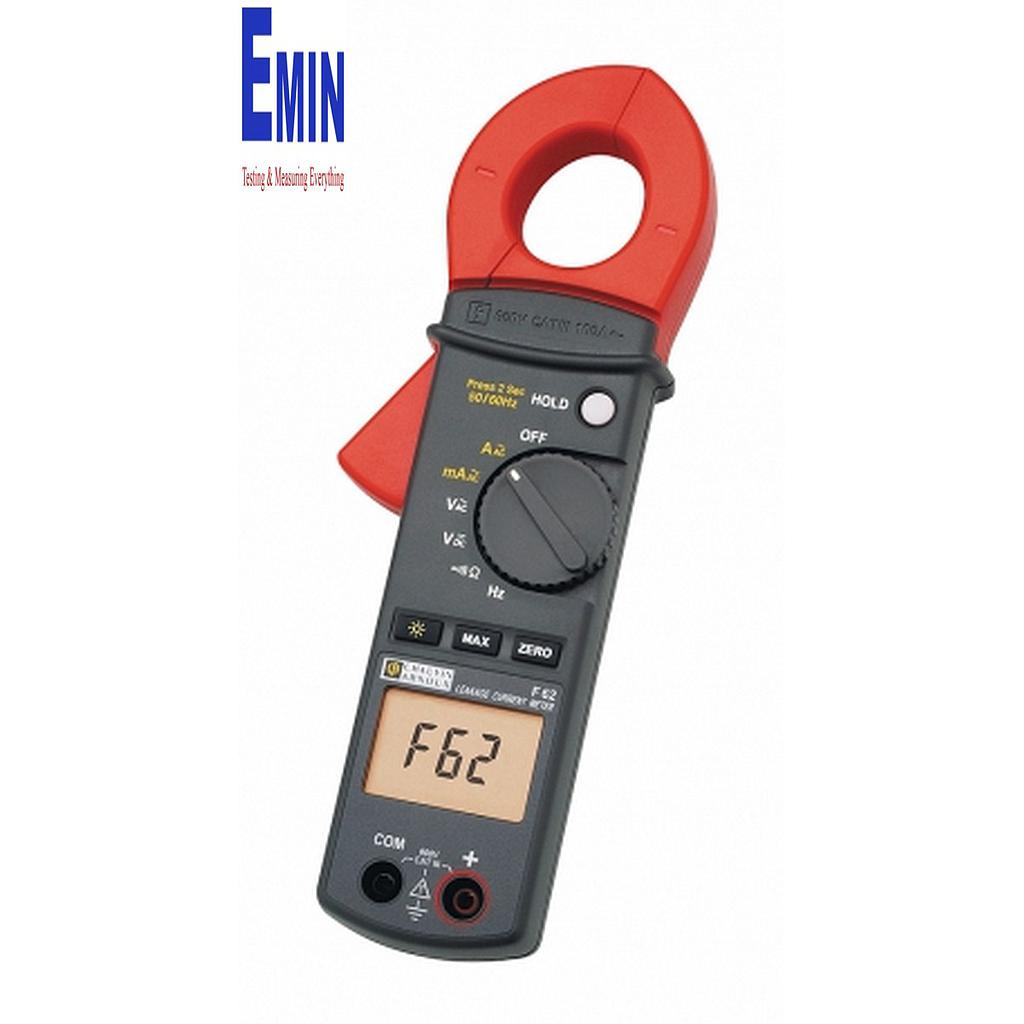

Chauvin Arnoux F62 泄漏电流钳表 (100A)

Manuafacturer: Chauvin Arnoux
Model : F62
Item: P01120760
Warranty : 12 month

- Resolution: 10µA
- Strong immunity to spurious currents: 70dB
- 50/60Hz harmonic filter
- Current/ Accuracy: 30µA to 100A AC
- AC/DC voltage/ Accuracy: 0.1V to 600V
- Frequency/ Accuracy : 5Hz to 1kHz
- Resistance/ Accuracy: 0.1Ω to 1kΩ
- Audible continuity: <35Ω
- Backlit display: 10,000 counts
- Functions: max. and Delta; display memorization
- Battery life indicator light; automatic power off
- Dimensions: 218x64x30mm
- Weight: 280g
- Standards: IEC 61010-1 / IEC 61010-2-032 / IEC 61010-2-033
- Installation category: CAT III 300 V
- Protection rating of casing: IP 30 as per NF EN 60529

Delivered with carrying bag containing: a set of elbowed male banana/straight male banana leads, 1 set of test probes, 2 x  1.5 V AAA/LR3 batteries, 1 bag and 1 operating manual in 5  languages

Detail

datasheet
user guider

Description

In the event of an insulation fault or untimely tripping of RCDs, the F62 clamp is the ideal tool for detecting and measuring the leakage currents flowing to earth.

The versatile F62 clamp also offers all the functions of a multimeter clamp.

Specifications:

  • 10,000-count backlit display
  • Current: 30 µA to 100 A AC
  • Resolution : 10 µA
  • 50/60 Hz anti-harmonic filter
  • High immunity to eddy currents: 70 dB
  • AC/DC voltage: 0.1 V to 600 V
  • Frequency: 5 Hz to 1 kHz
  • Resistance: 0.1 Ω to 1 kΩ
  • Audible continuity: < 35 Ω
  • Functions: Max, Relative, display memorization
  • Automatic power-off with battery status indication
  • 300 V CAT III
