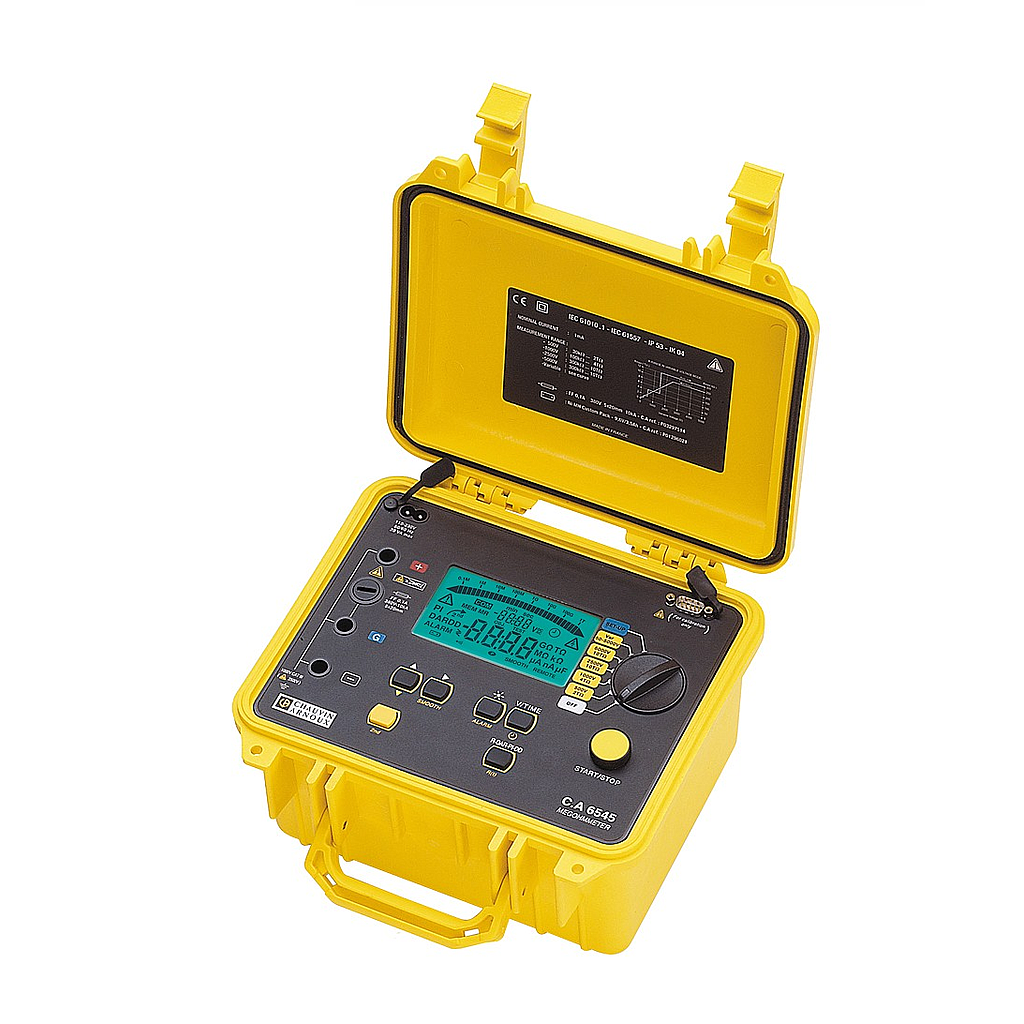

Chauvin Arnoux C.A 6545 程式数字绝缘测试仪 (5000V, 10 TΩ)
制造商: Chauvin Arnoux Model: C.A 6545 P/N: P01139711 来源: France - 报价要求
- 联系
INSULATION
Fixed test voltages: 500 / 1,000 / 2,500 / 5,000 V
Adjustable test voltage: 40 V to 5,100 V in 10 or 100 V increments
Ranges:
500 V: 10 kΩ to 2 TΩ
1,000 V: 10 kΩ to 4 TΩ
2,500 V: 10 kΩ to 10 TΩ
5,000 V: 10 kΩ to 10 TΩ
VOLTAGE: 1 to 5,100 V (15 Hz to 500 Hz or DC)
CAPACITANCE: 0.001 to 49.99 F
LEAKAGE CURRENT: 0.000 nA to 3,000 A
Functions:
Display Large graphical LCD
Backlighting: YES
Programmable alarms: YES
Smoothing of display: YES
Prog. test duration: YES
Calculation of ratios: DAR - PI and DD
Step voltage mode: NO
Calc. of R at reference T°: NO
Locking of test voltage: YES
R(t): Recording of samples
Power supply: Rechargeable NiMH battery
Battery life: 30 days with 10 DARs and 5 PIs / day
Electrical safety: IEC 61010-1 (Cat. III 1,000 V or Cat. I 2,500 V) and 61557
Dimensions: 270 x 250 x 180 mm
Weight: 4.3 kg
Delivered with a carrying bag containing:
• 2 HV safety leads, one red and one blue, length 3 m, equipped with an HV plug at one end and an HV crocodile clip at the other end.
• 1 black guarded HV safety lead, length 3 m, equipped with an HV plug with rear connection at one end and an HV crocodile clip at the other end.
• 1 blue guarded HV safety lead, length 0.35 m, equipped with an HV plug at one end and an HV plug with rear connection at the other end.
• mains power cable 1.80 m long
• 8 simplified user’s manuals (CA 6547)
• 1 USB drive containing the user’s manuals (1 file per language)
