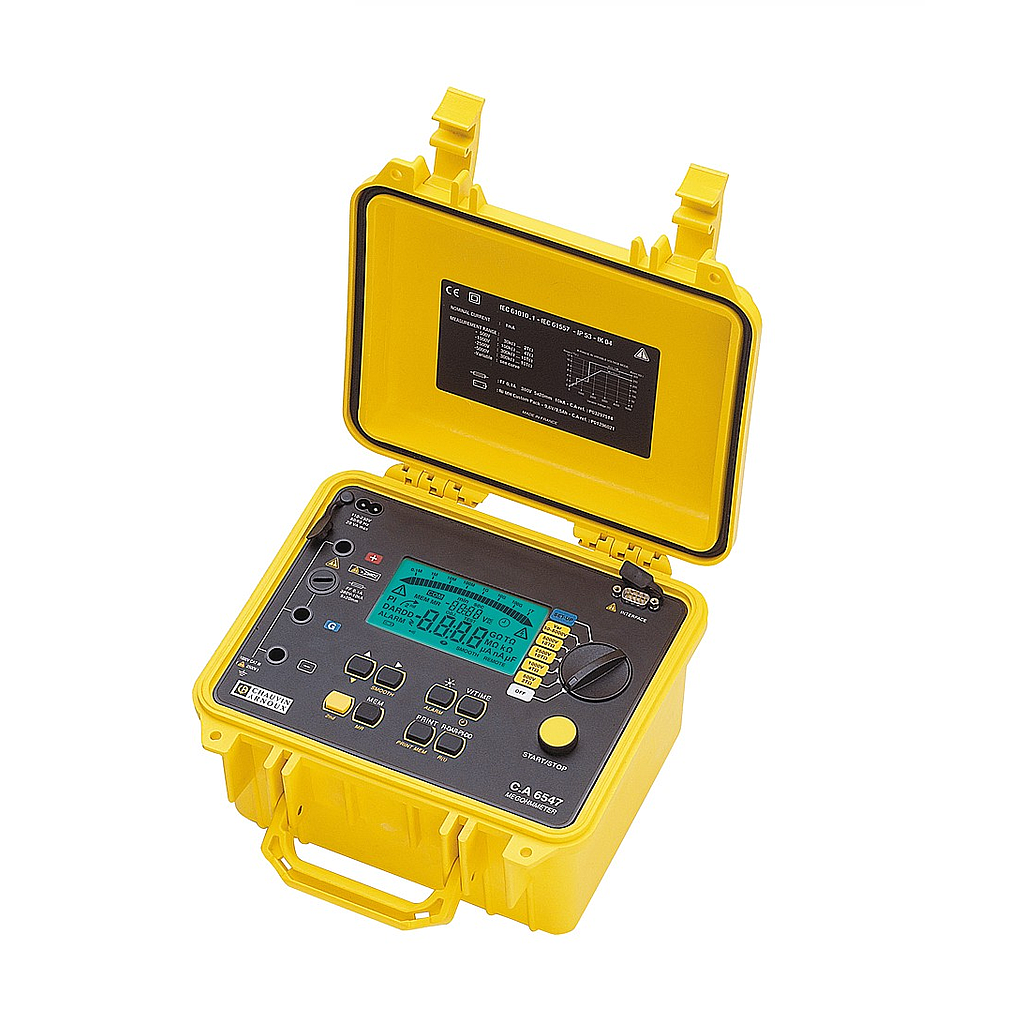

Chauvin Arnoux C.A 6547 程式数字绝缘测试仪

- Storage and communication
- Voltage: 1 to 5,100 VAC/DC
- Insulation: - Range : 500/1,000/ 2,500 / 5,000 VDC + variable from 50 V to 5,100 VDC (10 or 100 V increments)
- Range : 10 kΩ to 10 TΩ
- Capacitance: 0.001 to 49.99 μF
- Current: 0.001 nA to 3,000 μA
- Alarms: yes
- Smoothed display: yes
- Prog. test time: yes
- Quality ratios: DAR / PI / DD
- R(t): storage of samples
- Storage: 128 kB
- Communication: two-way
- Power supply: NiMH rechargeable battery
- Safety: IEC 61010-1 Cat. III 1000 V (Cat. I, 2,500 V)- IEC 61557
- Display: Graphic
- Backlighting: yes
- Dimensions: 270 x 250 x 180 mm
- Weight: 4.3 kg
- PC software: Megohmmeter Transfer (Standard) - DataView® (option)

State at delivery: carrying bag containing: 3 HV leads 3 m long with large crocodile clips (including one shielded), 1 lead with rear connection (35 cm) + 1 power cable
