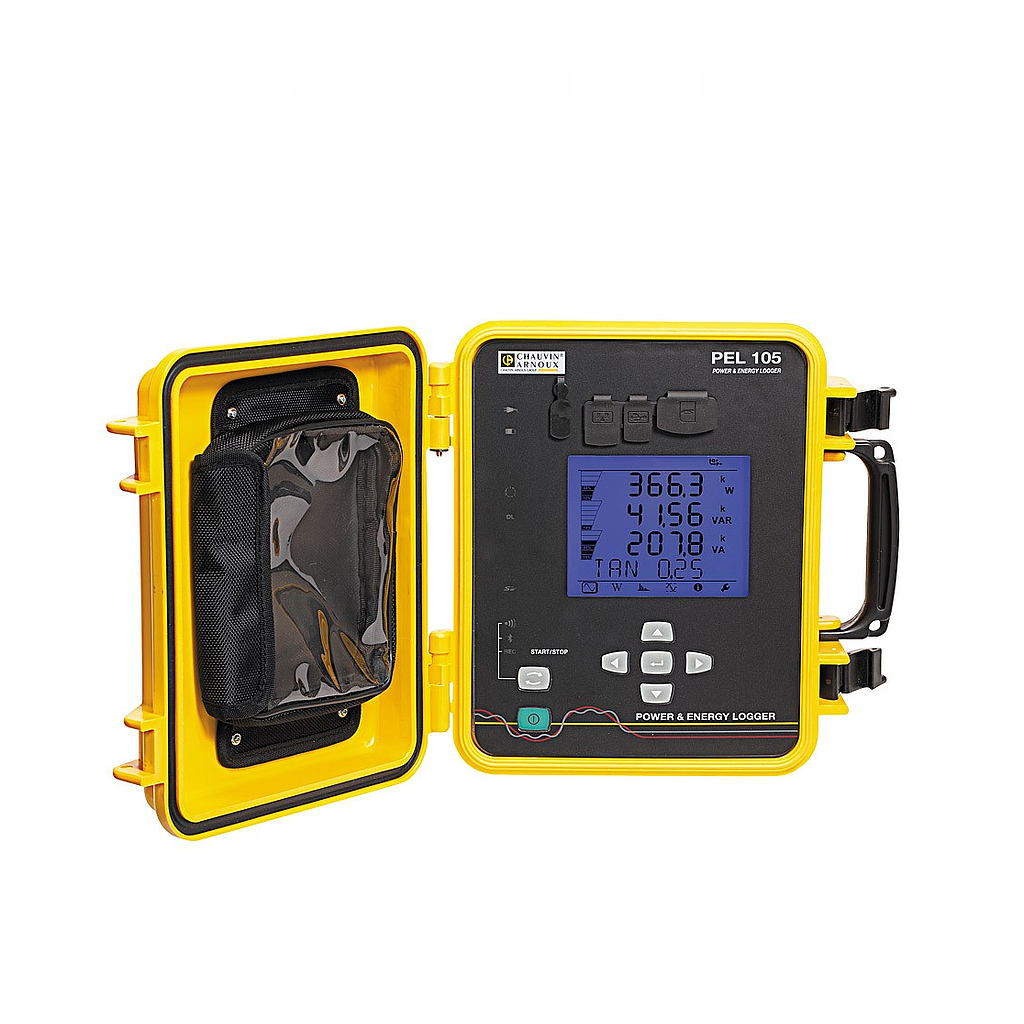

Chauvin Arnoux PEL105 在线电能质量记录仪 (Free PEL app including Motor measurement)

- Display:With backlit triple digital display
- Type of installation:Single-phase, split-phase, three-phase with or without neutral and many other specific configurations
- Number of inputs:5 voltage inputs, 4 current inputs
- Number of channels:4 voltage channels, 4 current channels
Measurements
- Network frequency:DC, 50 Hz, 60 Hz and 400 Hz
- Voltage (measurement ranges / best accuracy):10.00 V to 1,000 VAC @ 50/60 Hz, or 600 VAC @ 400 Hz / 1,000 VDC
- Current (depending on sensors) (measurement ranges / best accuracy):5 mAAC to 10 kAAC / 50 mADC to 1.4 kADC
Calculated measurements
- Ratio:Up to 650,000 V / up to 25,000 A
- Power:20 W to 10 GW / 20 var to 10 Gvar / 20 VA to 10 GVA
- Energy:Up to 4 EWh / 4 EVAh / 4 Evarh (E = 1018)
- Phase: cos φ, tan φ, PF
- Phase sequence:Automatic selection of the phase sequence
- Harmonics:Up to the 50th order
Additional functions
- Phase sequence:Indication of valid connection
- Min / Max:On all quantities
Recording
- Sampling rate/ Acquisition rate / Aggregation:128 samples/period - 5 measurements/s - from 1 min to 1 hr
- Storage:SD card, 8 GB (up to 32 GB with SD-HC card)
- Communication:Ethernet, Bluetooth, Wifi and USB
- Power supply:Self-powered internally from 94 to 1,000 V @ 50-60 Hz & 400 Hz / DC
- Safety:IEC 61010 1,000 V CAT IV
Mechanical specifications
- Dimensions:245 x 270 x 180 mm
- Weight:< 4 kg
- Protection:IP 67


State at delivery:
- 5 x 3 m black silicone cables, straight banana / straight banana, 5 black 1,000 V CAT IV crocodile clips, 1 set of inserts/rings,
- 4  AmpFLEX®  IP67  A196  3  m  long,  1  set  of  waterproof  plugs, 1 SD card, 1 USB cable, 1 bag, 1 safety datasheet, USB  key  containing  1  quick  start-up  guide  and  1  user  manual
Accessories:
- Set of waterproof plugs  P01102147
- Pole-mounting kit  P01102146
- DataView® software  P01102095
- Crocodile clips kit (x 5  P01102099
- Set of inserts/rings  P01102080
- 5 A adapter  P01101959
- Leads kit (x 5) BB196  P01295479
- Reeling Box    P01102149
- E3N adapter   P01102081
- PA30 mains power pack  P01102057

Details

PEL Android application / NEW VERSION V 1.8.25 now including MOTOR measurement applications

Motor Measurement Applications

datasheet
user guider
catalog vietnamese
catalog english

Advantages

  • 5 voltage inputs & 4 current inputs
  • All-terrain shockproof casing resistant to UV light and high temperatures
  • Ideal for mounting on electricity poles
  • Self-powered by its voltage inputs up to 1,000 V
  • Continuous recording at 200 ms intervals
  • Measurements in compliance with IEEE 1459

Description

The PEL 105 logger is particularly simple to use with an all-terrain IP67 casing capable of withstanding shocks, UV rays and extreme temperatures.
It is ideal for outdoor installation directly on an electricity pole. With its 1,000 V CAT IV safety rating, it can be used for measurements on all LV networks, including measurements of the neutral-earth voltage and the neutral current. This stand-alone instrument is equipped with a selfpowering system via its voltage inputs up to 1,000 V. The PEL 105 offers 5 voltage inputs and 4 current inputs. Compatible with a large number of current sensors to make it easier to use, it also recognizes the sensors
automatically.
The PEL 105 can be used to measure, record and analyse the power values (W, var, VA) and energy values (kWh, kvarh, kVAh). At the same time, they record the PF and the DPF. Recording is continuous with a sampling interval of 200 ms.
