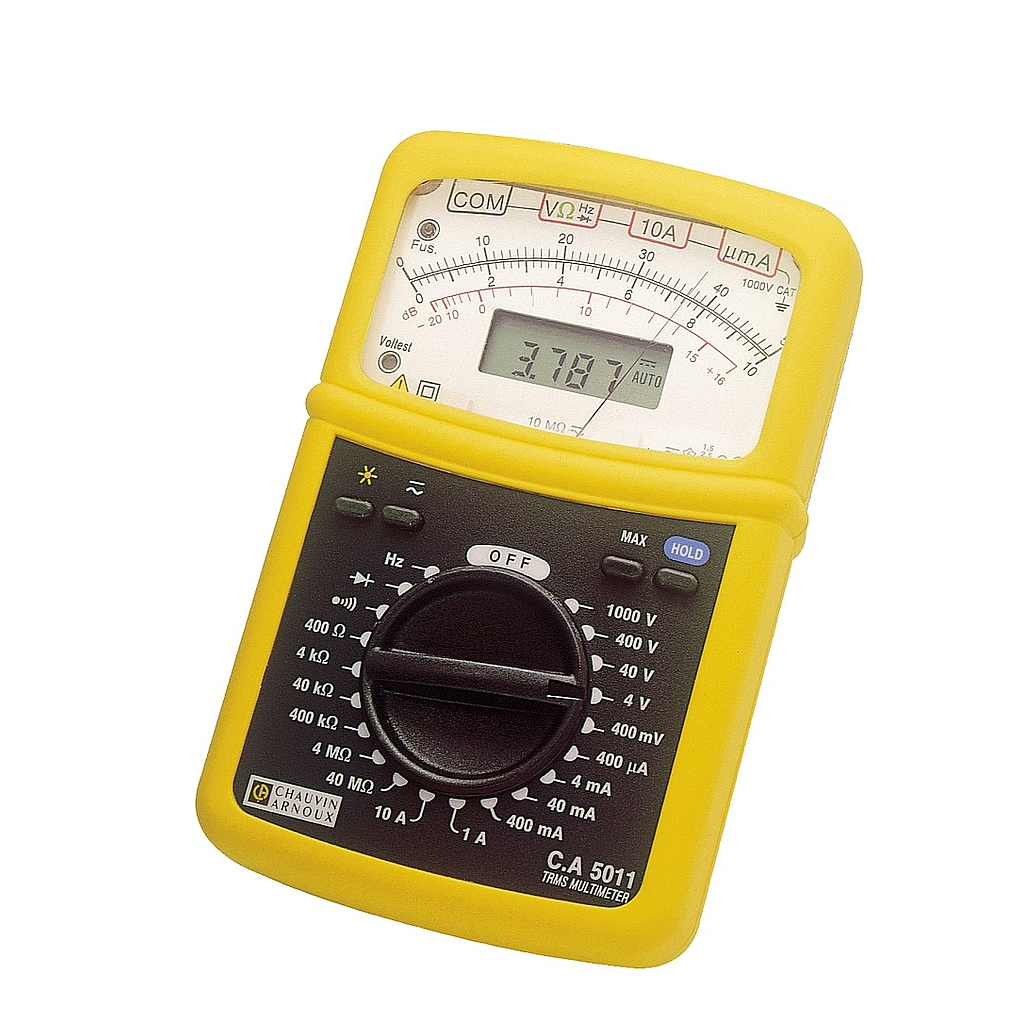

Chauvin Arnoux C.A 5011 TRMS模拟万用表

- AC and voltage: 2 x 5 ranges: 400 mV /.. / 1,000 V
- Impedance: 10 MΩ
- Operating frequency : 20 Hz ...10 kHz
- AC and DC current: 2 x 6 ranges: 400 μA /../ 10 A
- Resistance : 6 ranges: 400 Ω /../ 40 MΩ
- Audible continuity test : R < 400 Ω
- Frequency: 3 ranges: 4 kHz / 40 kHz / 100 kHz
- Scale in dB for V AC: -20 ... +16 dB
- Max value: over 500 ms
- Typical accuracy : 0.5 % on V • 1 % on A and Ω
- Power supply: 9 V battery
- Battery life: 300 hours
- Electrical safety : IEC/EN 61010-1 Edition 2 . 1,000 V/Cat III • 600 V/Cat IV
- Protection : 1 A and 10 A HRC fuses
- Ingress protection: IP 53
- Environmental conditions: -10 °C ... +55 °C and HR < 90 %
- Dimensions / weight: 160 x 105 x 56 mm / 500 g

State of delivery:  1 set of silicone RD/BK straight male banana / elbowed male banana, 1 set of RD/BK CAT IV test probes
Accessories:
- Shoulder bag (240 x 230 x 70 mm) P01298033
- Holster case (220 x 180 x 75 mm) P01298036
- Carrying case (270 x 200 x 65 mm) with pre-cut foam inserts  P01298037A

Details

datasheet
user guider

Description

The C.A 5011 TRMS multimeter gives the RMS value whatever the type of signal (sinusoidal or distorted).
This makes it ideal for all types of installations, even those involving "non-linear" loads.

Specifications:

  • Automatic recognition of AC/DC
  • AC/DC voltage: 400 mV to 600 V (5 ranges)
  • Operating frequency: 20 Hz to 10 kHz
  • Typical accuracy: 0.5% - Impedance: 10 MΩ
  • AC/DC current: 400 µA to 10 A (6 ranges)
  • Resistance: 400 Ω to 40M Ω (6 ranges)
  • Continuity test: (R <  400 Ω) and diode test
  • Frequency: 4 kHz to 400 kHz (3 ranges)
  • Reading of dB scale from -20 to 16 dB
  • Fuse status LED
  • "Voltest" LED if a voltage is present in ohmmeter and continuity modes
  • Max and Hold functions
  • Can be used as a zero galvanometer
  • Backlighting
  • Dimensions: 160 x 105 x 56 mm
  • Weight: 500g
  • Use on any installation rated lower than or equal to CAT III 600 V as per IEC/EN 61010-1 Edition 2
