Chauvin Arnoux PEL103 3套装

- Display: Triple digital display
- Installation types: Single-phase, split-phase, three-phase with or without neutral and many other specific configurations
- Number of channels: 3 voltage inputs / 3 current inputs (calculation of neutral current)
Measurements
- Network frequency: 50 Hz, 60 Hz & 400 Hz
- Voltage (measurement ranges / best accuracy): 10.00 -1,000 Vac/dc/± 0.2 % + 0.5 V
- Current (depending on sensor): (measurement ranges / best accuracy): 5 mAac to 10 kAac / 50 mAdc to 1.4 kAdc / ±0.5 %
Calculated measurements
- Ratio: Up to 650,000 V / up to 25,000 A
-  Power : 10 W to 10 GW / 10 var to 10 Gvar / 10 VA to 10 GVA
- Energy : up to 4 EWh / 4 Evarh / 4 EVAh
- Phase: cos φ, tan Φ, PF
- Harmonics: up to the 50th order
Complementary functions
- Phase order: Yes
- Min / Max: Yes
- Mounting: Magnet, hook
Recording
- Sampling / Acquisition rate / Aggregation: 128 S/period - 1 measurement per second - from 1 min to 60 min
- Memory: SD card 2 GB (SD-HC up to 32 GB)
- Communication: Ethernet, Bluetooth and USB
- Power supply: 110 V - 250 V (+10 %, -15 %) at 50-60 Hz & 400 Hz
- Safety: IEC 61010 600 V CAT IV – 1,000 V CAT III
Mechanical Specifications
- Dimensions: 256 x 125 x 37 mm without sensor
- Weight: 950 g
- Casing: IP54, UL (pending)

State at delivery: Current sensor MA193, One PEL102 or PEL103 power and energy logger: 4 measurement leads (straight banana / straight banana – 3 m long – black), 4 crocodile clips (black), 1 SD card (2 GB), 1 set of rings and inserts (for ends of leads and current sensors), 1 mains cable, 1 USB cable (Type A / Type B), 1 MultiFIX mounting systems, 1 operating manual (on CD), 1 bag, 1 safety datasheet, PEL Transfer PC software, 1 quick start-up guide, 1 SD-USB adapter.
Accessories:
-DataVIEW® software  P01102095
-Bag No 23  P01298078
-Leads/clamps kit P01295476
-Set of id. rings/inserts  P01102080
-5 A box  P01101959
-MN93 clamp   P01120425B
-MN93A clamp  P01120434B
-C193 clamp  P01120323B
-PAC93 clamp  P01120079B
-AmpFlex® A193-450 mm clamp  P01120526B
-AmpFlex® A193-800 mm clamp  P01120531B
-MiniFlex® MA193-250 mm clamp  P01120580
-MiniFlex® MA193-350 mm clamp  P01120567
-E3N clamp  P01120043A
-E3N adapter  P01102081
-J93 clamp  P01120110
-J193 clamp  P01120111
-MultiFIX  P01102100Z
-Mains power cable  P01295174
-PEL100 mains adapter  P01102134

Details

datasheet
user guider

Description

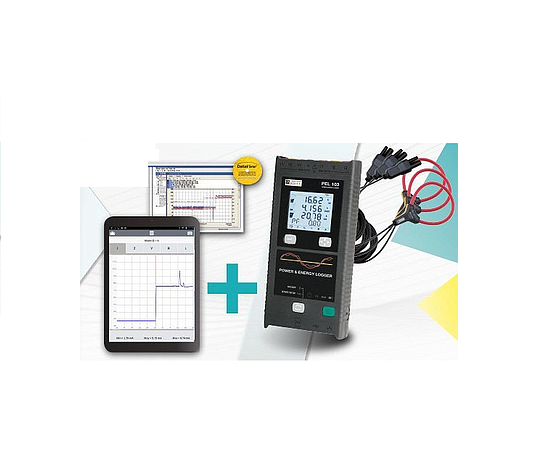

Ergonomic, magnetized and suitable for all types of cabinets, PEL103 loggers provide all the power and energy measurements simultaneously.

  • Single-phase, split-phase and three-phase installations with or without a neutral, as well as other complex configurations.
  • Implementation without cutting off the mains power supply
  • BlueTooth, Ethernet and USB communication
  • Automatic recognition of the sensors connected
  • Recording on SD and SD-HC cards
  • Real-time communication with a PC and analysis using PEL Transfer software


Other specifications:

  • Voltage up to 1,000 V

  • Current up to 10,000 A
  • Voltage ratio / current ratio up to 650,000 V / up to 25,000 A
  • Power from 10 W/var/VA to 10 GW/Gvar/GVA
  • Energy up to 4EWh / 4 EVAh / 4 Evarh
  • Phase: cos φ, tan Φ, PF
  • Harmonics up to 50th order
  • 2 GB SD memory card (SD-HC card up to 32 GB)


site PEL100 chauvin Arnoux
