Chauvin Arnoux C.A 1246 数码显示温度湿度计/ LED显示/ 直接读取式/ 便携式

RELATIVE HUMIDITY
- Type : Capacitive sensor
- Measurement range: 3.0 to 98.0 %RH
- Resolution : 0.1 %RH
- Intrinsic uncertainty: 10 to 90 %RH: ± (2 %RH ± 1 ct), outside that range: ± (4 %RH ± 1 ct)
- Response time (66%) : 60 s
TEMPERATURE
- Type of sensor : Temperature sensor with semiconductor
- Measurement range: - 10.0 to + 60.0°C
- Resolution : Display in °C: 0.1°C
- Intrinsic uncertainty in °C : 10 to 40°C: ± (0.5°C ± 1 ct) ; outside that range: ± (0.032 x (T-25) ± 1 ct) / T= temperature in °C
- Response time (66%) : 30 s
DEW POINT
- Measurement range: - 20.0 to + 60.0°Ctd ; -4.0 to + 140.0 °Ftd
- Resolution : Display in °C: 0.1°C
FUNCTIONS
- Recording :
+ Manual Start / Stop on the product short press for MEM spot recording / Long press for REC recording at the rate of the current mode
+ Programmed recording: start date, recording interval (1 minute to 2 hours) and end date defined using the PC software
- Alarms : Alarm thresholds settable in the software / Recording can be triggered on an alarm threshold
- Data storage : More than 1 million points
- Min-Max-Hold : Yes
- Units : °C or °F / %RH
- Backlighting: Yes
- Automatic power-off: Yes (configurable)
POWER SUPPLY
- Type : 3 x 1.5V AA / LR6 alkaline batteries. Connection to the mains possible with the mains / micro-USB adapter offered as an accessory
- Battery life: 1,000 hrs (portable mode) / 3 years of recording (15-minute measurement interval)
PHYSICAL SPECIFICATIONS
- Interfaces : 2 possible communication modes: Bluetooth wireless link and USB
- Mounting: Casing equipped with a magnet, a wall-mount system and a slot for suspending the product. Compatible with the Multifix accessory
- Dimensions / weight : 187 x 72 x 32 mm / 260 g with batteries
- Ingress protection : IP54 casing
- Product operating range: Temperature: -10 to +60 ° C / Humidity: 10 to 90 %RH
- Compliance : IEC61010-1 / IEC 61326-1
GENERAL SPECIFICATIONS
- Data Logger Transfer Windows PC software functions: Display as a graph or a table of values / Data export in graph or Excel table form. Real-time mode / Automatic report generation in Word format / Data format compatible with the Dataview software offered as an accessory

State at delivery: Bag, 3 x 1.5 V AA batteries, USB cable, test report and quick start-up guide (complete manual  and Data Logger Transfer software available on the Chauvin Arnoux website)
Accessories / Replacement parts:
- 75%RH salt cartridge P01156401
- 33%RH salt cartridge P01156402
- Shockproof sheath + Multifix   P01654252
- Multifix P01102100Z
- Mains adapter  P01651023
- Bag  P01298075
- Metal case  P01298071
- Dataview software P01102095
- Bluetooth BLE / USB modem for PC  P01654253
- 4 x AA/LR6 NiMH Batteries + Battery charger HX0053

Details

datasheet
user guider

Advantages

  • Compact and magnetized for fixed or portable use
  • Wide backlit display
  • Recording up to 1 million points
  • Communicating via USB or Bluetooth
  • Alarms and recording trigger on alarms
  • Battery life of up to 3 years
  • IP54 casing
  • Data Logger Transfer software with automatic report generation

Description

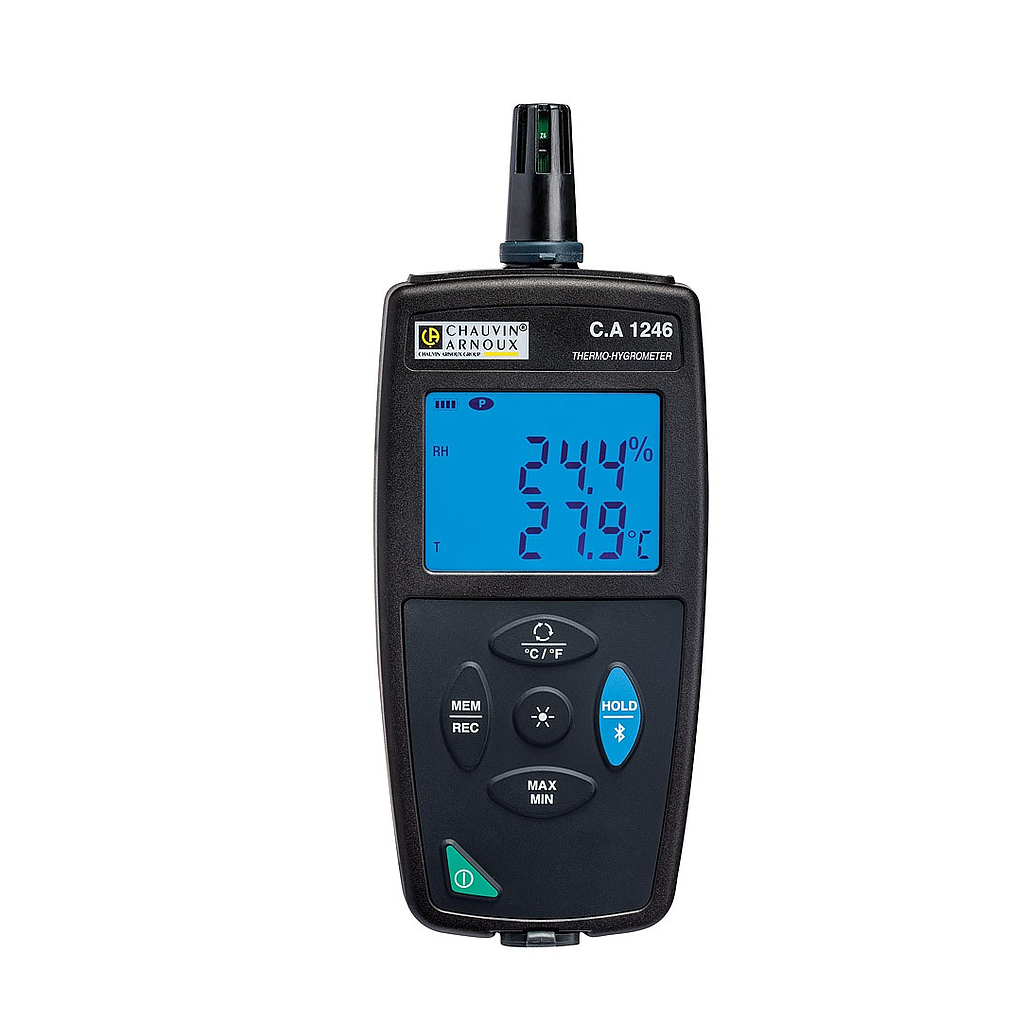

The C.A 1246 is a 3-in-1 instrument for measuring relative humidity, ambient temperature and the dew point. Equipped with a wide backlit display, the C.A 1246 offers all the useful functions for work in the field, such as Min, Max, Hold, as well as spot or programmable recording possibilities.
Communicating via USB or Bluetooth, it is possible to program alarms and recording triggers on thresholds by means of the Data Logger Transfer software.


Additional specifications:

- Relative humidity: 3.0 to 98.0 %RH
- Ambient temperature: - 10.0 to +60.0°C
- Dew point: - 20.0 to +60.0 °Ctd
- Min, Max, Hold functions, Alarms  / °C or °F / Backlighting
- Recording up to 1 million points
- USB or Bluetooth interfaces
- IP54 casing
- Dimensions: 187 x 72 x 32 mm
- Weight: 260 g with batteries
- Compatible with the Multifix accessory
- Shockproof protective sheath available as an accessory
