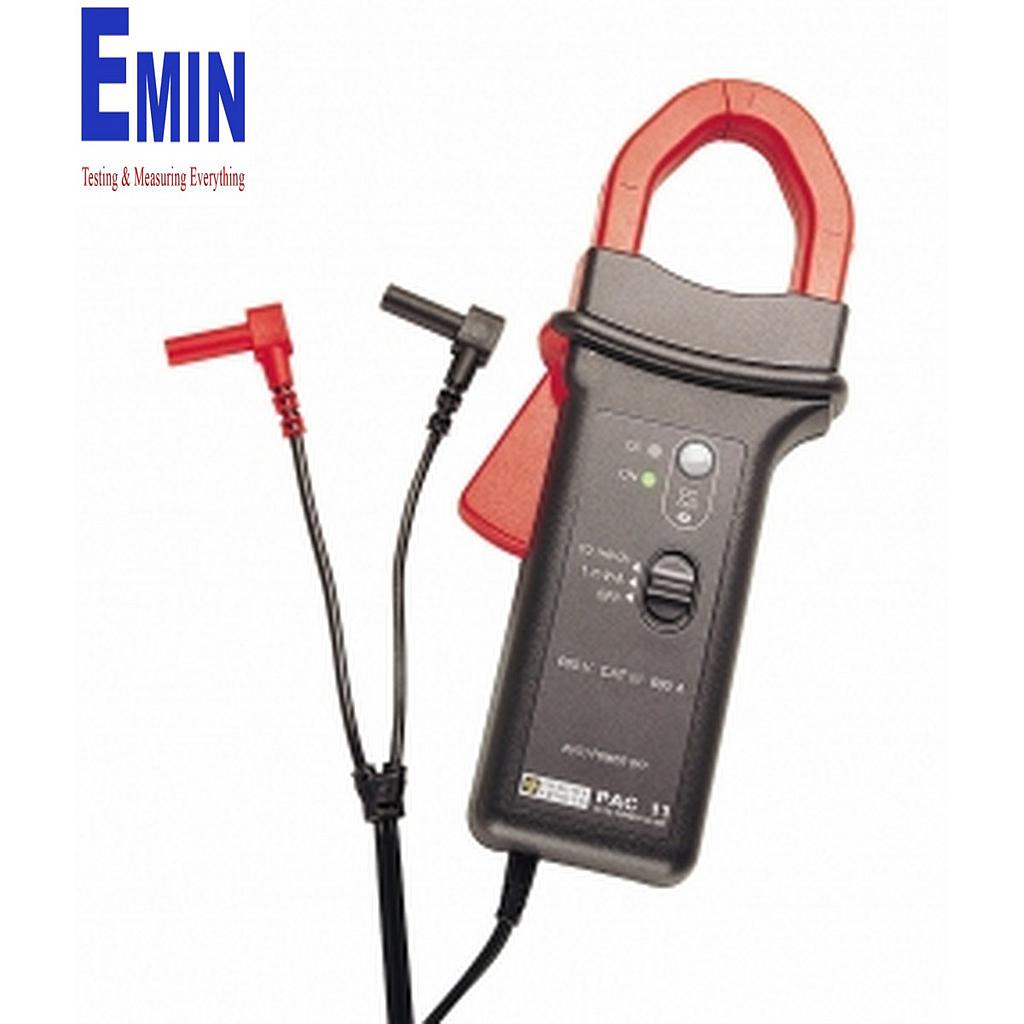

Chauvin Arnoux PAC 11 测量AC/DC电流钳 (600A)

Manuafacturer: Chauvin Arnoux
Model : PAC 11
Item: P01120068
Warranty : 12 month

- Input
+ Current: 0.2 - 40 A AC; 0.4 - 60 A AC; 0.5 - 400 A AC; 0.5 - 600 A DC
+ AC: yes
+ DC : yes
- Output / Connections
+ Voltage: 600 mV; AC/DC
+ Leads + safety plug ø 4 mm: yes
- Specific features
+ Transformation ratio (input/output): 1A/1mV
+ Automatic DC zero: yes
+ Bandwidth (frequency in Hz): DC- 10 kHz
+ Typical accuracy:  ≤ 1.5 %; ≤ 2%

Details

datasheet
user guider
catalog vietnamese
catalog english

Description

The PAC Series is a range of Hall-effect current clamps for measuring direct and alternating currents.

2 forms are proposed to clamp cables up to 30 mm or 42 mm in diameter, as well as small busbars.
The range comprises PAC1x models and PAC2x models for higher currents.
This clamp has 2 sensitivities for better measurement resolution and accuracy, a simplified ZeroDC adjustment system and a deactivatable automatic standby function.

Main features of the PAC11 clamp:

  • Rated current: 400 A AC/600 A DC
  • Output signal: DC and AC voltage
  • Output / input ratio: 10 mV / A, 1 mV / A
  • Output via lead and isolated Ø 4 mm male plugs
